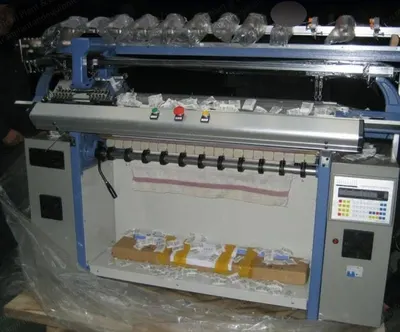

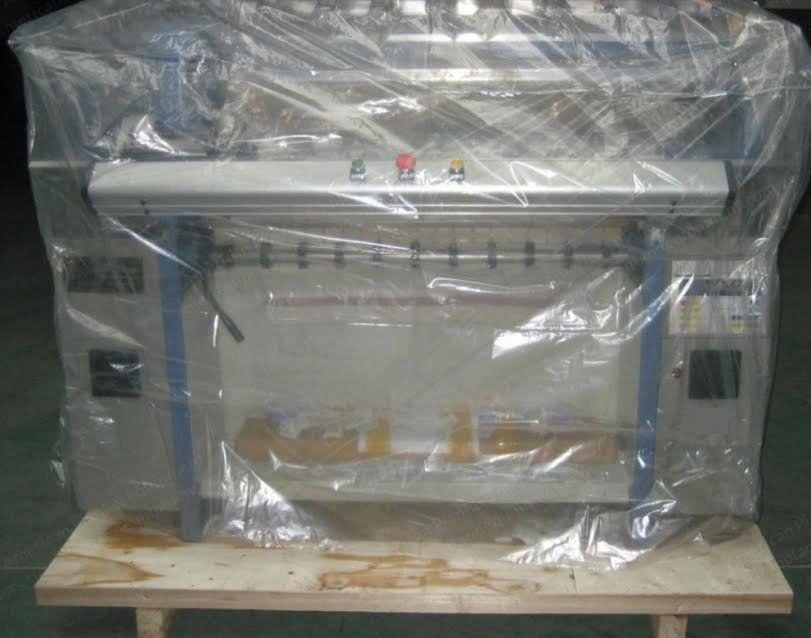

NovaStar, KH161, 40" Width, 12G, Single Feeder (New)

NovaStar, KH161, 40" Width, 12G, Single Feeder

Description

  1. Overview
    1. Computerized flat knitting machine
    2. Collar sweater machine
  2. Specifications
    1. Needle distance: 12G (gauge)
    2. Needle bed width: 40 in (knitting width)
    3. Weaving width can be adjusted at will according to the width of the cloth
    4. Weaving speed: 1.2 meters per second, stepless fine-tuning between high and low speed
    5. Yarn feeder: two sides interchangeable feeder automatically, main color
    6. Cam system: single feeder, tuck cam both in front and in rear needle beds, cam base height. Butt and low-butt select functions, both controlled by step-forward motor
    7. Stitch density: 0~99 division stitch density fine-tuning with automatic debug function, controlled by computer program
    8. Needle: high butt and low butt, under row butt
    9. Racking: automatic debug and stop function
    10. Roller: the roller is controlled automatically by the motor; it has 2-step speed settings controlled by computer program
    11. Stop motion: yarn break, yarn knot, aerial abnormal, fabric drop, reverse rolling, shock act, floating knit, needle break, place count, motor overload, stitch abnormal, racking error, cam motor error, emergency suspension (the reason will be displayed on the screen, and the warning light will appear on the panel)
    12. Power: AC 220V, 50/60Hz, single-phase, 1/2 HP motor, 0.75kW, controlled by high-quality frequency inverter
    13. Computer system: industrial micro-computer control system, touch-screen, data access by contents of the memory (it can store 30 files), electric batteries and circuits devices can extend the storage of resource for 3,000 hours after blackout. The data can be input by PC or by U-disk (USB)
  3. Condition
    1. More information is available upon request
