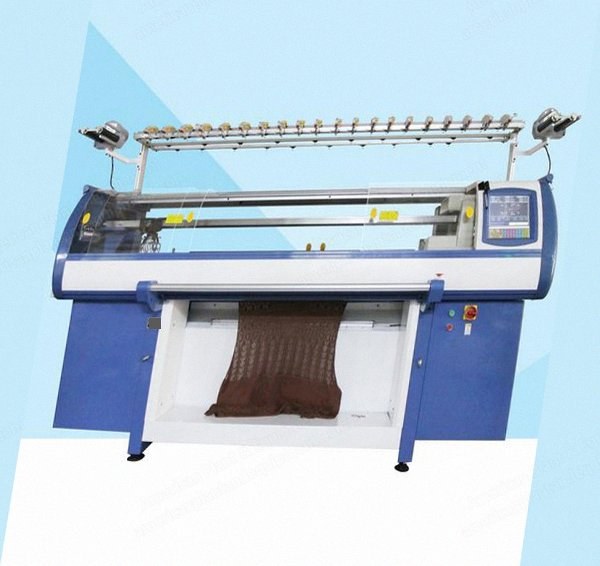

NovaStar, KH165, 52" Width, Double Cam System, Single Head Knitting Machine (New)

NovaStar, KH165, 52" Width, Double Cam System, Single Head Knitting Machine

Description

  1. Overview
    1. Gauge: 3G, 3.5G, 5G, 7G, 5-7G, 9G, 10G, 12G, 14G
    2. Weaving width: 52 inches
    3. Knitting system: single head, double couple of cam system
    4. Knitting speed: 120 segment selection, AC servo motor control, maximum 1.2 meters per second
  2. Specifications
    1. Stitch: stepper motor drive, 24 electronic memory control (each 0 to 649 tuning), a separate action
    2. Sinker: controlled by stepping motor, can adjust sinker device
    3. Racking: controlled by servo motor, rocking of right and left within 2 inches
    4. Yarn carrier: four guide rails, 2x8 yarn carriers
    5. Yarn feeder system: 20 electronic top tensioner, automatically stopping in case of yarn joints, equipped with high speed feeder and optional yarn feeder
    6. Triangle system: the transfer cam can transfer, knit, tuck, and miss alone to achieve high production efficiency
    7. Encoder: controlled by high speed 8 section (bothway 24 magnetic) electromagnetic needle selection, jacquard weaving with before and after plate
    8. Take down roller: programmed instruction, controlled by stepping motor, 32 levels selection, adjustable area is 0 to 100
  3. Operation
    1. The normal operation when green, yellow for standby, red for abnormal shutdown
    2. Automatic stop device: yarn breaking, joint, cotton drop, needle break, yarn flotation, back rolling, inappropriate position of needle bed, inappropriate position of sinker, breakage, excessive yarn, all can be automatic parking, with light and sound alarm
  4. Dimensions and Weight
    1. Dimensions (length x width x height): 2900 mm x 1000 mm x 2000 mm
    2. Weight: 1,000 kg
  5. Included
    1. Spare parts list available upon request
