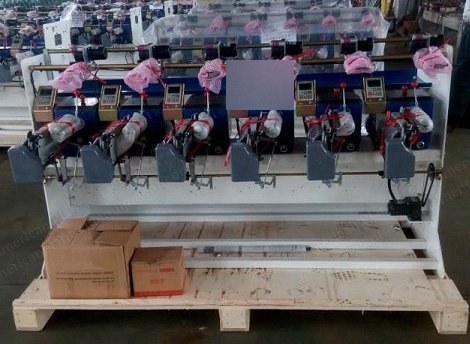

NovaStar, WN275, Bobbin Rewinding Precision Winding Machine, 6 Positions, 300mm Spindle Gauge (New)

NovaStar, WN275, Bobbin Rewinding Precision Winding Machine, 6 Positions, 300mm Spindle Gauge

Description

  1. Overview
    1. Bobbin rewinding precision winding machine
    2. Multi-functional frequency converter matching with mechanical cone winding
    3. Single-spindle, single-frequency converter, single motor drive mode
    4. Diversified functional allocations fulfill technical requirements to make tight or loose packages; hardness and density can be varied
    5. All electrical components are integrated into one control cabinet for easy wire connections and convenient assembly/disassembly
    6. Major setting functions include constant thread speed, variable thread, and so on
  2. Specifications
    1. Format: single speed, single spindle, single motor frequency converter control
    2. Model: upper and lower thread guide
    3. Wind ratio: 1:2.2, 1:3.2, 1:4.2, etc.; other wind ratios available
    4. Spindle gauge: 300 mm
    5. Spindle speed: controlled according to wind ratio, about 1500 rpm to 2500 rpm
    6. Dialectical: independent motor controls dialectical transmission shaft; every spindle box has dialectical dethickness device
    7. Bobbin forms: straight and conical 6", 8", 9" bobbins; taper of conical bobbin: 3° 30" (can customize)
    8. Bobbin capacity: maximum diameter 180 mm, weight 250 g to 2000 g
    9. Motor: 380 V / 220 V, 120 W per spindle; 0.72 kW per machine, 2.88 kW per machine
  3. Operation and Control
    1. Operation mode: automatic control can be implemented according to setting requirements
    2. Open/shut mode: slow start, slow brake, slow brake spindle
    3. Full bobbin automatic stop: automatically stops at full bobbin according to set data, with self-locking anti-error operation
    4. Auto-control mode: opto-electrical switch detection, time-delay period setting, wireless auto-stop and auto-shut off function
  4. Spindle and Accessories
    1. Spindle category: bobbin rewinding
    2. Can additionally install oiling device, ultra-micro device, tension auto-control sensor device, and overall frame communication control device
  5. Dimensions and Weight
    1. Machine dimension: 6 spindles per machine, 2.02 m x 0.90 m x 1.33 m
    2. Machine dimension: 24 spindles per machine, 7.60 m x 0.90 m x 1.33 m
    3. Machine weight: 6 spindles per machine, 480 kg
    4. Machine weight: 24 spindles per machine, 1680 kg
