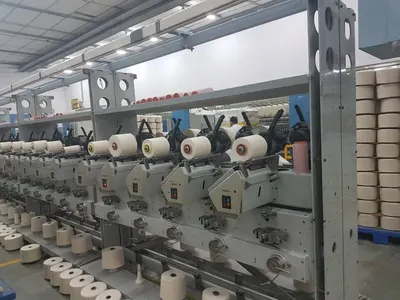

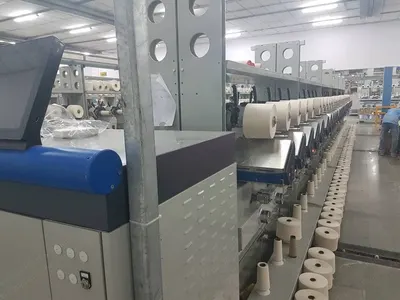

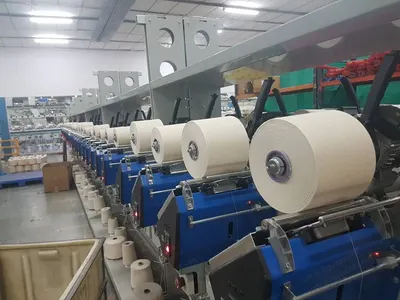

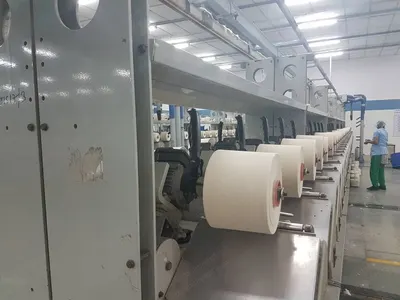

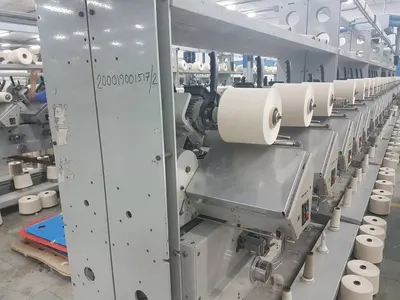

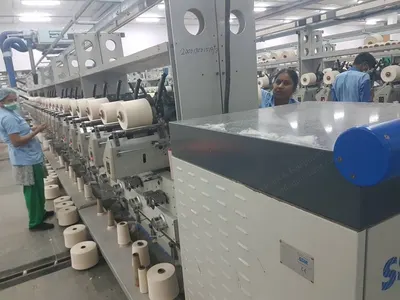

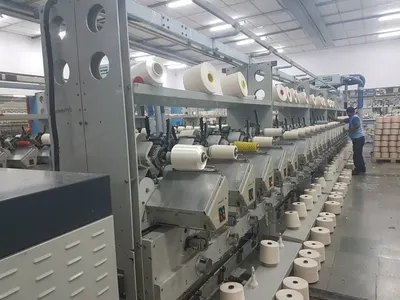

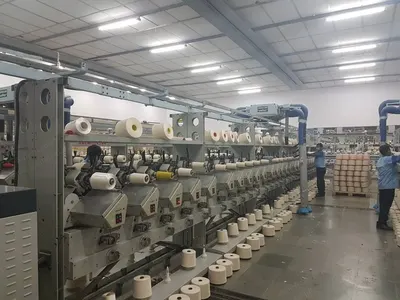

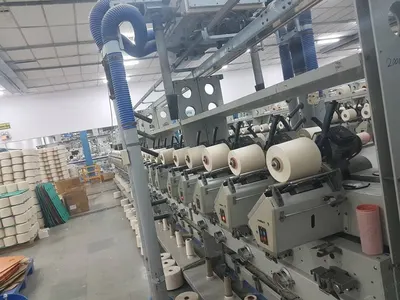

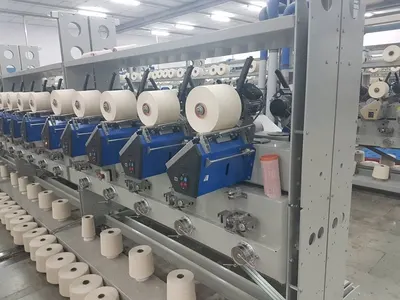

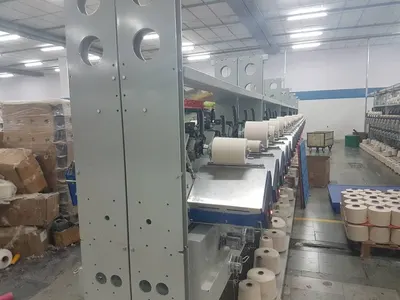

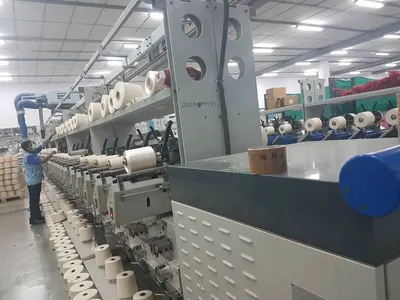

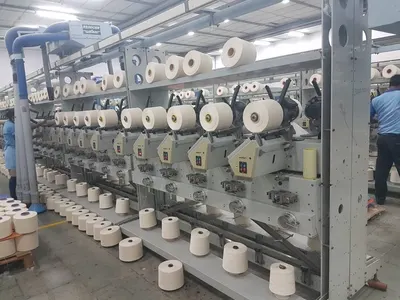

SSM, PS6-Plus-W Digicone Preciflex, 2013/2017, 60 Spindles, 150mm Traverse, Precision Cross Soft Package Winding Machine

SSM, PS6-Plus-W Digicone Preciflex, 2013/2017, 60 Spindles, 150mm Traverse, Precision Cross Soft Package Winding Machine

Description

  1. Overview
    1. Soft package winding machine
    2. High performance precision cross-wound package
    3. Make: SSM
    4. Model: PS6PLUS-W Digicone Preciflex
    5. Three units year 2013, one unit year 2017 (commissioned in March 2017)
    6. 60 spindles
    7. Staple yarns material
    8. Yarn count: 6/3, 6/2, 10/1, 20/2, 24/2, 13/1, 16/1, Ne
    9. Supply packages: up to 250 mm diameter
    10. Traverse length: 150 mm
    11. Take up package diameter: up to 250 mm
    12. Take up tubes: cylindrical / conical
    13. Type of application: dye packages
    14. Color: grey RAL 7038S
    15. Noise pollution: 80 dBA
  2. Specifications
    1. 415 mm pitch, respectively 5 winding spindles per section, single- or double-sided execution (maximum up to 60 spindles)
    2. Universal peg for supply package
    3. Micro-adjustable, mechanical slub-catcher per spindle

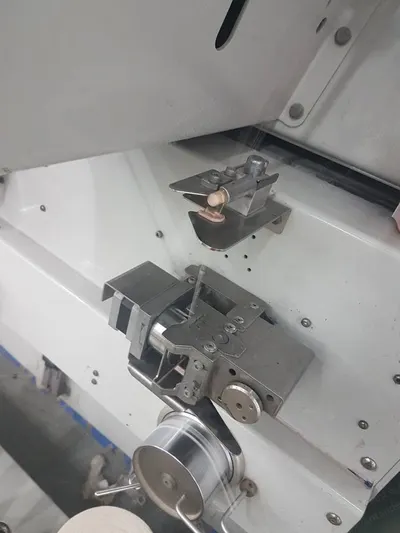

    4. Thread laying by counter-rotating blades for winding length 150 mm
    5. Precision or Digicone winding system
    6. Tensiso unwinding tension control / balloon optimizing device
    7. Individual control and drive of winding speed by frequency inverter, mechanical speed 1600 meters per minute (practical winding speed, depending on quality of supply yarn / supply package and winding parameters)
    8. Positively driven overfeed device
    9. Pressure system for winding bracket for the production of dye packages (low density)
    10. Tube holders for specific types of tubes

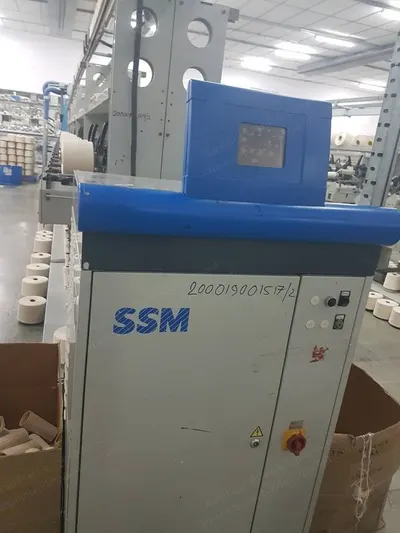

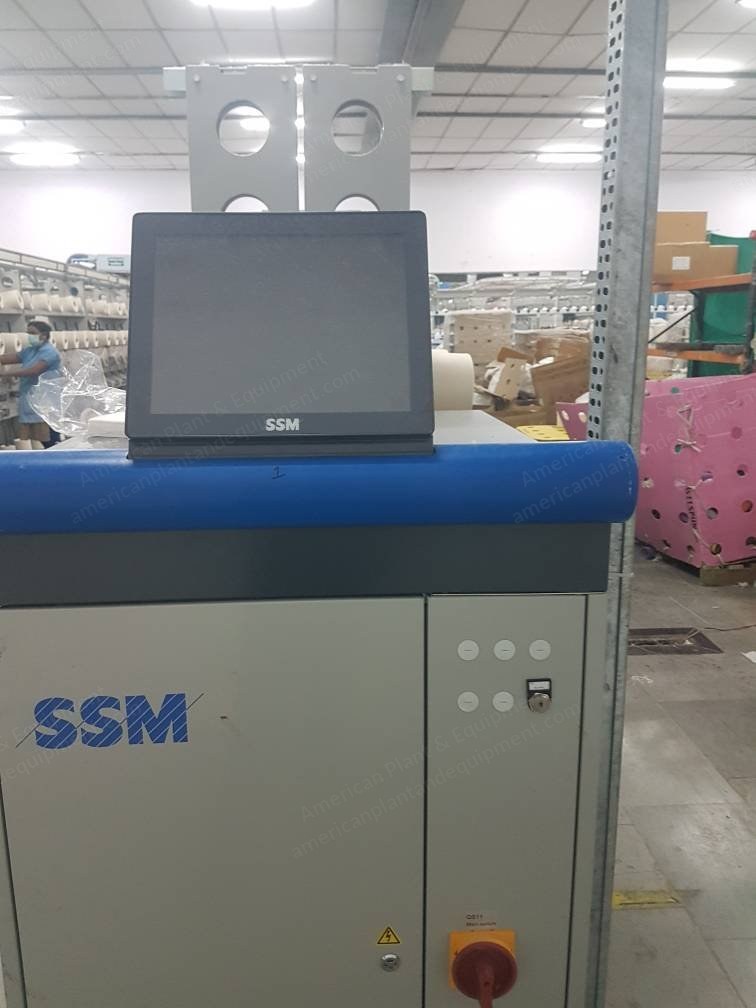

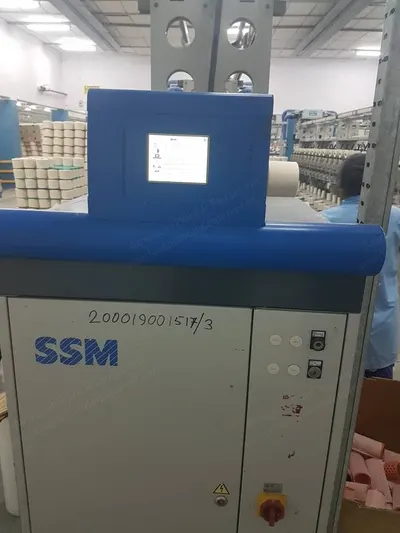

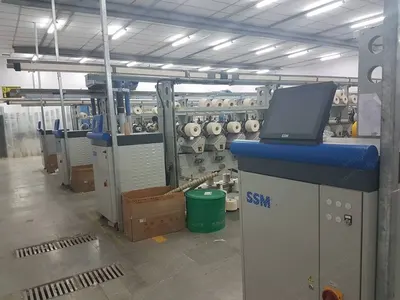

    11. Head stock with machine terminal and touch screen, pictogram based central input of winding parameters per machine or per spindle, with storage capability of up to 1,000 recipes of selected winding parameters
    12. Yarn sensor for automatic stop in case of yarn breakage
    13. Disc tension device for staple yarns with electronically controlled tension force
    14. Individual spindle setting, controller and drive
    15. Electronic length measuring system per spindle
    16. Diameter measuring system and full package diameter stop per spindle
    17. Empty tube rack
    18. Slit yarn clearer
    19. Yarn splicers
    20. One set of tools
  3. Condition
    1. Current status: in production
  4. Quantity
    1. 4 units available
