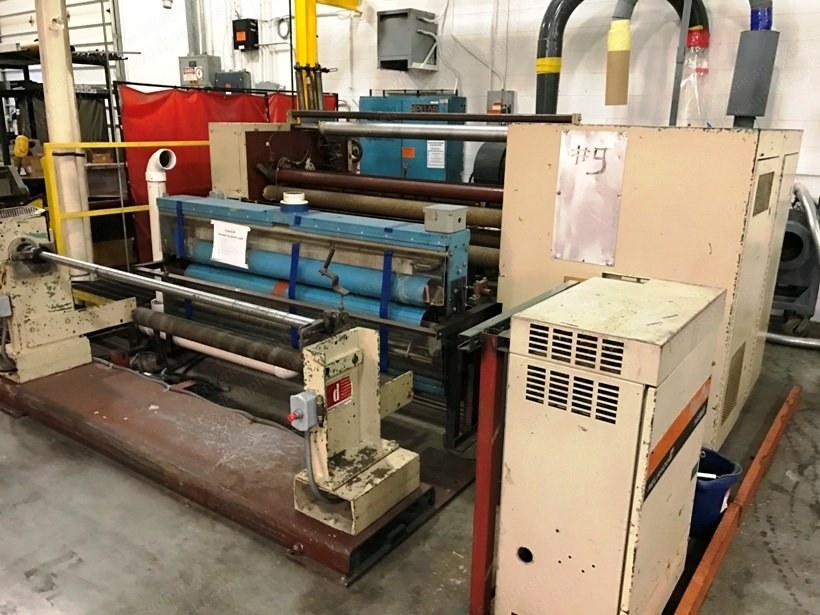

Dusenbery, 835, 72" Width, 28" Max Rewind Diameter, 7.5 HP

Dusenbery, 835, 72" Width, 28" Max Rewind Diameter, 7.5 HP

Description

  1. Overview
    1. Duplex center slitter
    2. Make: Dusenbery
    3. Model: 835
  2. Specifications
    1. Width: 72 inches
    2. Maximum rewind diameter: 28 inches (without top riding rolls)
    3. Maximum rewind diameter: 24 inches (with top riding rolls)
    4. Duplex rewind with core spacer differential rewinding tension control – all slit rolls have individual tension control
    5. Four zone individual tension control, you can run four different slit widths at the same time
    6. 3 inch rewind mandrels
    7. Maximum speed is 500 fpm
    8. Cork covered pull rolls
    9. Shear slitting can be added if required
  3. Unwind System
    1. Equipped with a 40 inch diameter unwind with Fife P-50 automatic edge guide control for edge guiding and a standard pneumatic air-cooled brake
    2. Also a 3 inch unwind shaft
  4. Drive System
    1. The drive system consists of a 7.5 hp DC motor and a main drive controller
  5. Condition
    1. More information is available upon request
