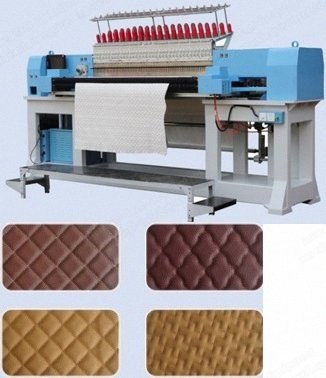

NovaStar, QL223, Computerized Rotating Shuttle Multi-Needle Quilting Machine, 1.8m to 3.2m Quilting Width, 3 Needle Row Space, 6kW to 7.5kW (New)

NovaStar, QL223, Computerized Rotating Shuttle Multi-Needle Quilting Machine, 1.8m to 3.2m Quilting Width, 3 Needle Row Space, 6kW to 7.5kW

Description

  1. Overview
    1. Computerized rotating shuttle multi-needle quilting machine
    2. For quilting car seat covers, car foot pads, car trunk blankets, sofa cushions, sofa leather, bed-rest leather, soft background wall, etc.
  2. Model 1 Specifications
    1. Length: 3900 mm
    2. Width: 1290 mm
    3. Height: 2350 mm
    4. Weight: 3500 kg
    5. Quilting width: 1.8
    6. Needle row space: 3
    7. Needle space: 50.8
    8. X-movement: 254
    9. Quilting thickness: 1.5
    10. Stitches: 0.15 to 12.7 mm
    11. Needle storage capacity: 12
    12. Output: 1 to 100
    13. Needle type: 23
    14. Rolling speed: 200 to 650 per minute
    15. Rated voltage: 380 V / 50 Hz, 220 V / 60 Hz
    16. Power: 6 kW
  3. Model 2 Specifications
    1. Length: 4500 mm
    2. Width: 1290 mm
    3. Height: 2350 mm
    4. Weight: 4500 kg
    5. Quilting width: 2.4
    6. Needle row space: 3
    7. Needle space: 50.8
    8. X-movement: 254
    9. Quilting thickness: 1.5
    10. Stitches: 0.15 to 12.7 mm
    11. Needle storage capacity: 12
    12. Output: 1 to 100
    13. Needle type: 23
    14. Rolling speed: 200 to 650 per minute
    15. Rated voltage: 380 V / 50 Hz, 220 V / 60 Hz
    16. Power: 6.7 kW
  4. Model 3 Specifications
    1. Length: 5100 mm
    2. Width: 1290 mm
    3. Height: 2350 mm
    4. Weight: 5500 kg
    5. Quilting width: 3.2
    6. Needle row space: 3
    7. Needle space: 50.8
    8. X-movement: 254
    9. Quilting thickness: 1.5
    10. Stitches: 0.15 to 12.7 mm
    11. Needle storage capacity: 12
    12. Output: 1 to 100
    13. Needle type: 23
    14. Rolling speed: 200 to 650 per minute
    15. Rated voltage: 380 V / 50 Hz, 220 V / 60 Hz
    16. Power: 7.5 kW
  5. Features
    1. Processes thick material and upper thread can be 9 strands
    2. Can replace most functions of two needle bar shuttle quilting machines
    3. Two needle row unique combination design, space between front and back needle bar is 3 inches, left to right needle space is 2 inches, and back needle row can be adjustable to make the front-back needle space be 1 inch
    4. Drum structure, the y-axis can achieve continuous production
    5. Big rotating shuttle, high speed, high efficiency, low noise, maximum speed is 700 r/minute
    6. X, y, z axis all use high power servo motors, high precision, appealing stitch, and thread is not easily broken
    7. Use mouse to draw patterns directly in machine computer
    8. Compatible with embroidery design format (*.dst)
    9. Patterns can copy with usb
    10. Easy to draw various designs
    11. Auto stop when front thread or bottom thread is broken and tension maintenance device to keep fabric feed in smoothly
    12. Special model can be produced according to customer’s requirements
  6. Additional Information
    1. More information is available upon request
