Sollich, Tevopharm, 1991, Cereal and Muesli Bar Forming and Packing Line, 320mm Width, 250 to 290 kg/hour Capacity

Sollich, Tevopharm, 1991, Cereal and Muesli Bar Forming and Packing Line, 320mm Width, 250 to 290 kg/hour Capacity

Description

  1. Overview
    1. Manufactured by Sollich, Tevopharm and locally built cooling tunnel.
    2. Year 1991 and installed in 1992.
    3. In good running condition; line will be run until September 2017. Now dismantled and in storage.
    4. Approximate hourly capacity of line in bars per minute: 140 – 170 pieces, depends on weight and width; this equals to some 250 – 290 kg/hr.
    5. Maximum speed of flowpacker in bars per minute amounts to about 110 pcs/min.

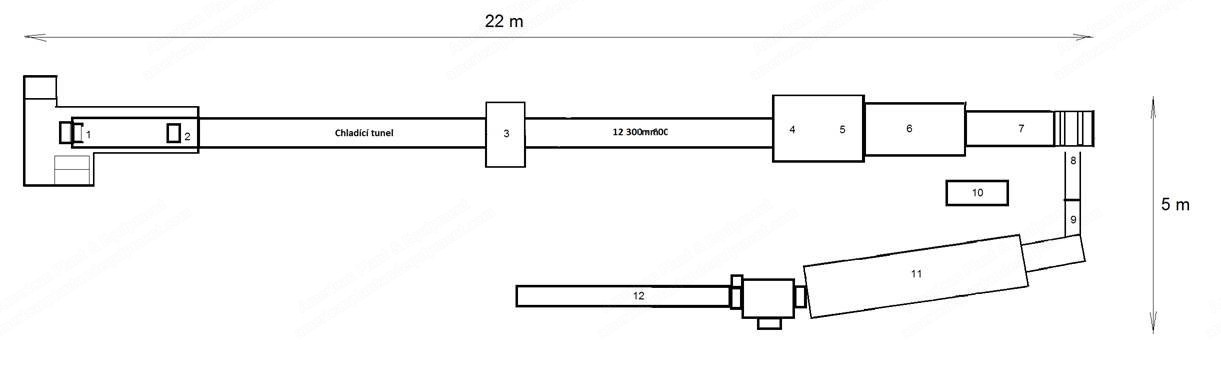

  2. Specifications
    1. Sollich forming rollers – sheeting and shaping device including structure: first cylinder width 320 mm, diameter 670 mm; second cylinder width 295 mm, diameter 480 mm; drive unit 0.55 kW, gearbox with gear ratio 290/1.8.
    2. Sollich pressing / levelling cylinder or roller: width 285 mm, diameter 470 mm; fitted with glucose mass spreader.
    3. Other specifications (approximate figures): loading capacity 10 kg/m²; weight 1,550 kg; speed up to 3 m/min; input 0.25 kW; cooling output requirements – 14 kW for cooling of the bottom plates under the conveyor belt, 45 kW for the convection air cooling on top of muesli sheet; cooling agent glycol.
    4. Sollich driven longitudinal cutting unit with 2 sets of rotary knives and integrated discharge conveyor for scrap: a) 1 set for 11 strokes of bars 25 mm wide; b) 1 set for 8 strokes of bars 35 mm wide.
    5. Sollich spreading conveyor to automatically spread the 11 strokes of 25 mm respectively 8 strokes of 35 mm.
    6. Sollich guillotine section: length 2,000 mm, width 1,000 mm; belt 2,385 mm x 440 mm.
    7. Aligning conveyor section including pneumatically operated sliding facility to sweep rows of bars onto position 8: length 1,750 mm, width 1,000 mm; width of belt 600 mm.
    8. Outfeed conveyor to accept rows of bars: length 1,750 mm, width 470 mm; width of belt 180 mm.
    9. Buffering/feeding conveyor to feed bars one after the other into the chain conveyor of flowpacker: length 1,030 mm, width 440 mm; width of belt 160 mm.
    10. Combination control panel with functions including: master switch; drive of rollers under the rotary knives; drive of knives; drive of spreading belt; drive of entrance guillotine belt; drive of the roller under the guillotine; drive of guillotine; drive of the belt behind the guillotine; setting of a product length; control manual/auto.
    11. Horizontal packaging machine Tevopharm Pack 6, year of manufacture 1991, to suit the flowpack style of wrapping the bars: dimensions of entrance conveyor 2,850 mm x 400 mm; packaging and exit part 1,550 mm x 1,000 mm.
    12. Discharge conveyor: dimensions 3,900 mm x 300 mm; width of belt 220 mm.
  3. Condition
    1. In good running condition; line will be run until September 2017. Now dismantled and in storage.
  4. Included
    1. All items listed in the specifications section are included.
  5. Not Included
    1. Muesli preparation (kitchen for the dry ingredients and liquids and the bowl lifter and tilter) are not included/not subject of sale.
    2. Cooling equipment (compressor, evaporator, condenser, etc.) are not subject of sale.
    3. The metal detector/X-ray unit behind flowpacker is not subject of sale.
    1. Now dismantled and in storage.
