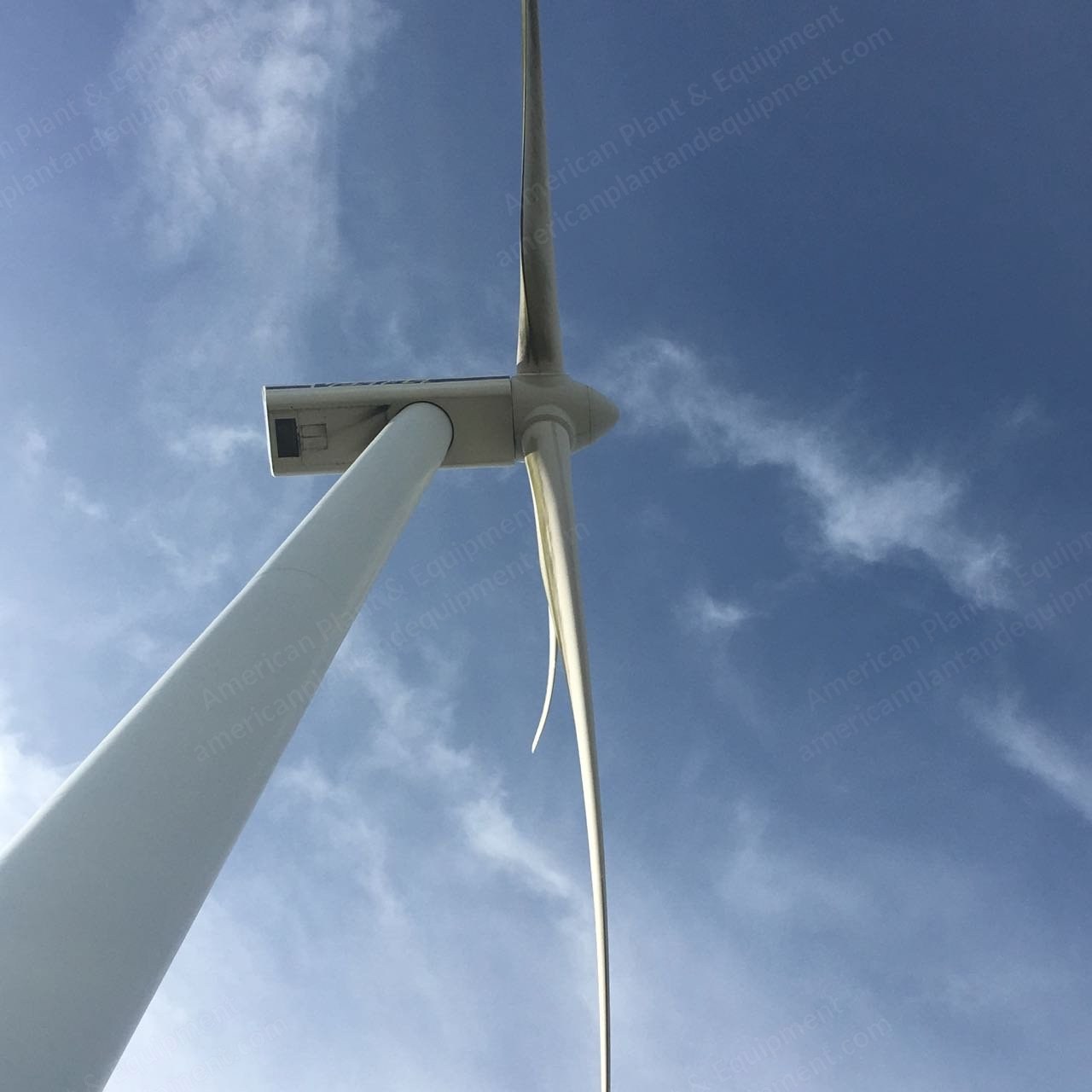

Description Overview Wind turbines Make: Vestas Model: V80 Year: 2002 Output: 2000 kW (2 MW) nominal power Hub height: 67 m Rotor: 80 Nominal voltage: 690 V Onshore Nominal grid frequency: 50 Hz 40 meter blades, so tip is about 27 meters from the ground Electrical Electrical supervision: default Grid code type: not relevant Fc mode selection: not relevant Type of ago: no ago Vcp board: version 2 Grid inductor setting: inductor number 092326 Voltage calibration (vcs tru card): yellow Voltage calibration n1: 1400 Voltage calibration n2: 1400 Voltage calibration n3: 1400 Vams: 0 disabled (no vams installed) No additional grid breaker installed No high voltage short circuit indicator installed Supervision of startup frequency not installed Mechanical Brake system: normal brake system Hydr. relief valve (y250): not installed V52/v60 two brake valves: two brake valves not installed Hydr. heat valve (y217): not installed Generator Generator: abb No general model Generator rpm encoder not active Generator heating not installed Drive and temp sensor not installed Gear Offline oil filtration: iecia gear Gear ratio: 100.4 Analog gear oil filter supervision: not installed Tower Tower height: v80 67m welded bracket on tower for latter attachment Tower height in meter: 67 Tower accelerometer: tower acc not installed Measured tower frequency e-3 hz: 410 Accelerometer for yaw protection: not installed Accelerometer type: not relevant Site Info Temperature condition: normal temperature Height above sea level: 0m to 199m Site name: all other sites Aviation light: no aviation light installed Aviation light intensity: not controlled by vmp Marine light: no marine light installed Visibility meter: no visibility meter installed Lightning detector: no lightning detector installed Gps present in hub: no gps present in hub Heli hoist mode installed: heli hoist mode not installed Fog horn installed: no fog horn installed
