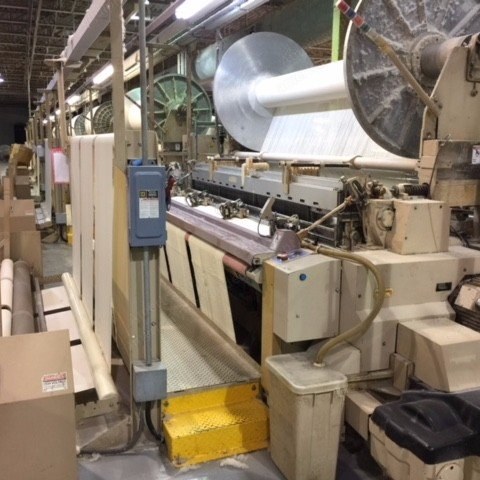

Tsudakoma, ZAXe, 2002, Terry Towel Weaving Machine, 2300mm, Staubli 2861 Dobby, 4 Colors

Tsudakoma, ZAXe, 2002, Terry Towel Weaving Machine, 2300mm, Staubli 2861 Dobby, 4 Colors

Description

  1. Overview
    1. Terry towel weaving machines
    2. Make: Tsudakoma
    3. Model: ZAXe
    4. Year: 2002
    5. Width: 2300 mm
    6. Quantity: 12
  2. Specifications
    1. Staubli 2861 dobby
    2. 16 harness frames
    3. 4 weft feeders
    4. All looms are 4 colors
    5. Running 18 to 20 harness frames each
    6. All looms have 1250 mm diameter pile beams on top and 1000 mm diameter beam flange on warp beams
    7. All looms with batching unit
    8. All looms capable of weaving flat, as well as terry towel
  3. Center Tuckers
    1. 17 total center tuckers currently installed on these 12 looms
    2. 7 looms with 1 center tucker, mechanical
    3. 1 loom with 4 center tuckers, mechanical
    4. 2 looms with 3 center tuckers, mechanical
    5. 2 looms with 3 center tuckers, air
  4. Included
    1. 1.5 loom beams with each loom, top and bottom
