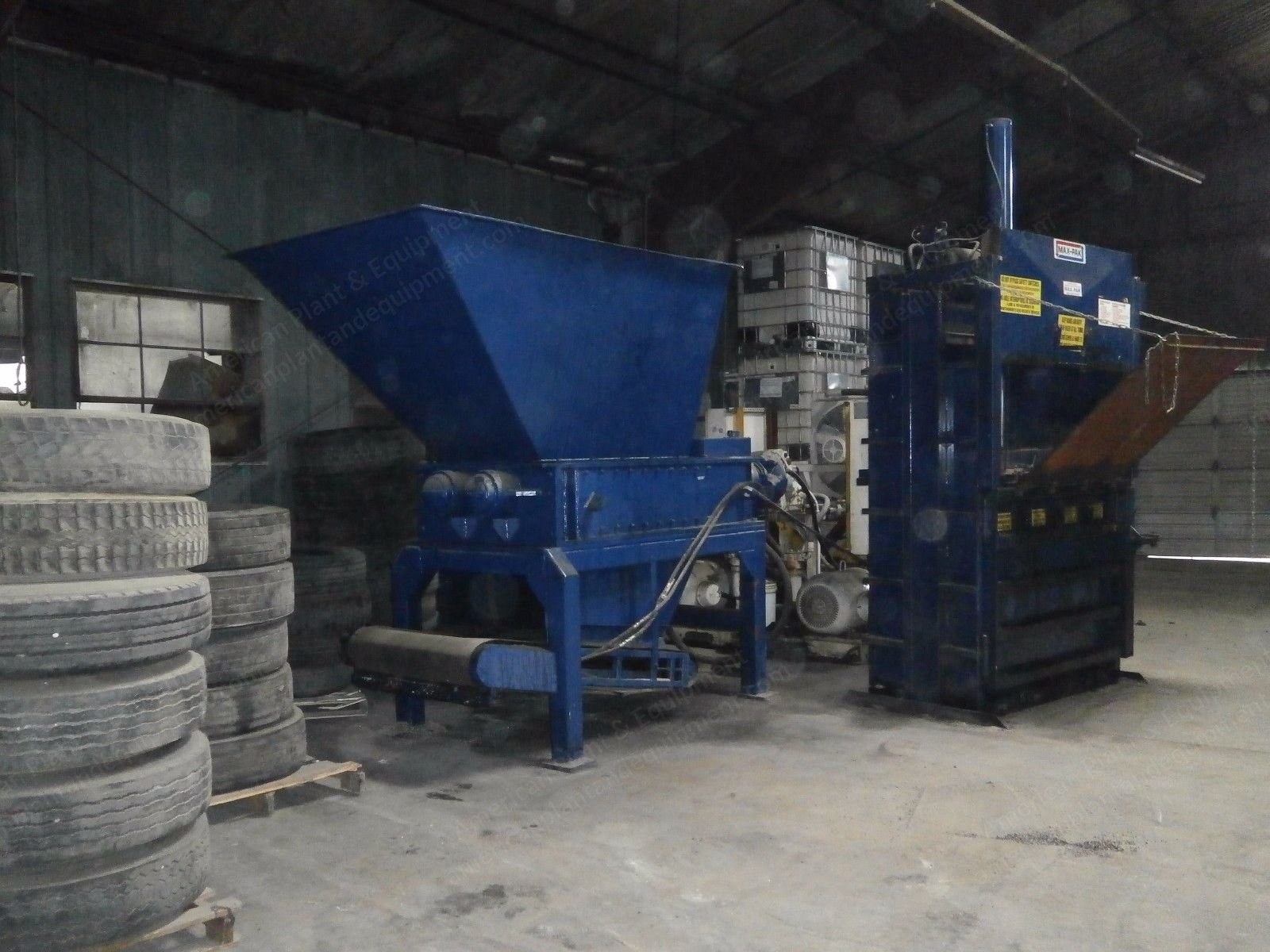

SSI, 1500-H, Dual-Shaft Shredder, 150HP, 32x52 inch Cutting Chamber

SSI, 1500-H, Dual-Shaft Shredder, 150HP, 32x52 inch Cutting Chamber

Description

  1. Overview
    1. Hydraulic dual-shaft shredder
    2. Make: SSI
    3. Model: 1500-H
    4. 150 hp with auto-reverse
  2. Drive System
    1. (2) Lincoln 75 hp, 1800 rpm, 460 V, 3 ph, 60 Hz electric motors
    2. Hydraulic pump: (2) Denison T6D-028 at 85.2 gpm @ 1800 rpm
    3. Hydraulic motor: SAI M4-800
    4. Maximum operating pressure: 2700 psi
    5. Planetary reducer: RR3000DF-EM
    6. 20 single stage planetary reduction
    7. 966.2 resultant cubic inches/rev
    8. 12,820 ft-lbs output torque/1000 psi
  3. Torque Specifications
    1. Maximum output torque – drive shaft: 34,614 ft-lbs
    2. Maximum output torque – driven shaft: 53,075 ft-lbs
    3. Tooth force (maximum at tip) – drive shaft: 49,596 ft-lbs
    4. Tooth force (maximum at tip) – driven shaft: 76,047 ft-lbs
  4. Cutter and Chamber
    1. Cutter outside diameter: 16.75 inches, nominal size 2 inches
    2. Cutting chamber: 32 in wide x 52 in long
  5. Oil Capacities
    1. Hydraulic motor: 1.8 gallons
    2. Gear reducer: 1.7 gallons
    3. Shredder head: 19 gallons
    4. Hydraulic power unit: 450 gallons
  6. Condition and Availability
    1. More information is available upon request.
