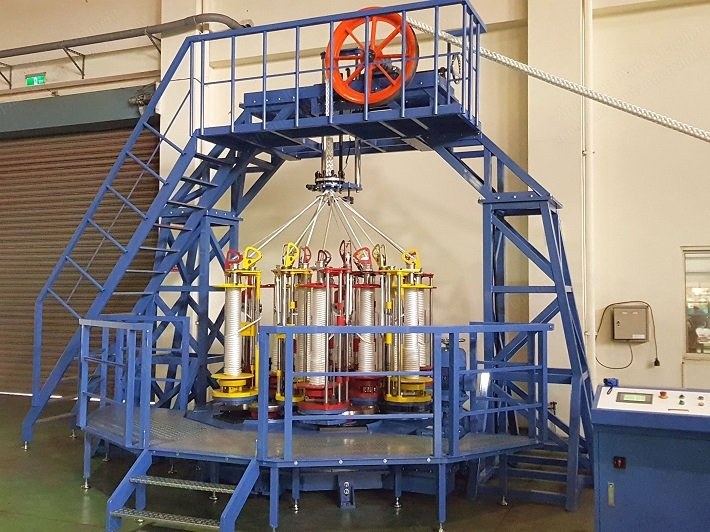

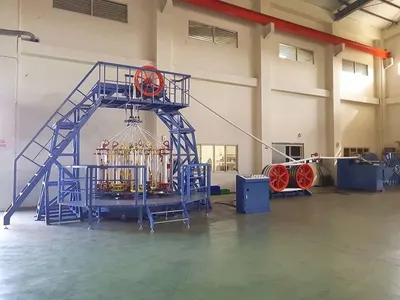

Hsiang Chuan, RJ-12-1(720), Braiding Machine, 12 Carriers, 1 Head, 10HP (New)

Hsiang Chuan, RJ-12-1(720), Braiding Machine, 12 Carriers, 1 Head, 10HP

Description

  1. Overview
    1. Braiding machine, 1 head

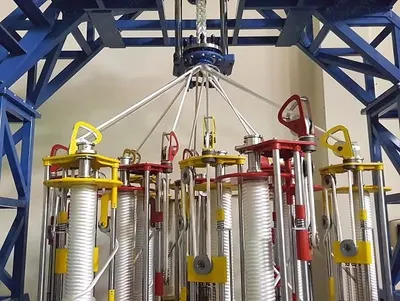

    2. 12 carriers
    3. Horn gear size: 720
    4. Horn gear rpm: 30

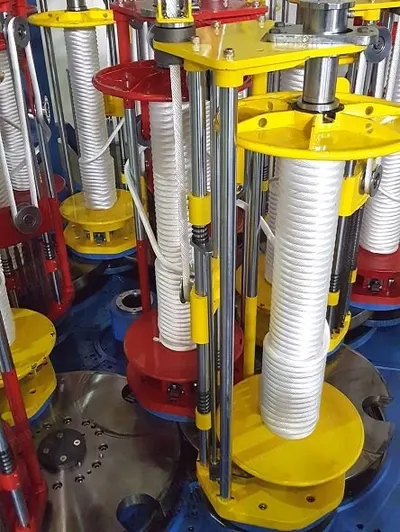

    5. Carrier type: J (390 x 800 mm with 3 sets of bobbins)
    6. Bobbin volume (ccm): Ø 390 mm x 800 mm
    7. Bobbin size: Ø 390 mm x 800 mm
    8. Product OD (maximum): Ø 80 mm
    9. Capstand diameter: 1000 mm
    10. Machine half cover: optional
  2. Specifications
    1. Horsepower: 7.5 kW (10 hp x 1/motor), 6-pole
    2. Machine dimensions: 9300 mm (L) x 2800 mm (W) x 4500 mm (H)
    3. Max rope: Ø 80 mm
    4. Horn gear rpm: 30
    5. Capstand diameter: 1000 mm
    6. Take up device dimensions: 2500 mm (L) x 2300 mm (W) x 2100 mm (H)
    7. Take up drum: Ø 1500 x 850 mm
  3. Controls
    1. Electronic take up included
    2. Control PLC included
    3. Inverter: Siemens optional
  4. Attachments and Included Items
    1. Machine attach: two sets, including one installed on machine
    2. Carrier ceramics: standard
    3. Carrier tension spring: material = carbon steel wire, or piano wire; attach two sets, including one installed on the machine
    4. Machine attach bearing: transmission gear, horn gear, carrier, and arbor: SKF
    5. Core guiding base
    6. Take up winder: handwheel
    7. Attach take up double wheel: three tracks wheel set; diameter: Ø 1000 mm; dimensions: L 2800 mm x W 1120 mm x H 1650 mm; horsepower: 2.2 kW (3 hp x 1/motor)
    8. Track lubrication: manual = standard; automatic = lubrication pump (optional)
    9. Winder: type = openable take up winding; specifications: Ø 1000 mm x W 2000 mm; dimensions: 2500 mm (L) x 2300 mm (W) x 2100 mm (H); horsepower: 0.4 kW / reducer motor
  5. Condition and Additional Notes
    1. Machine gear: oil lubrication
    2. More information is available upon request
