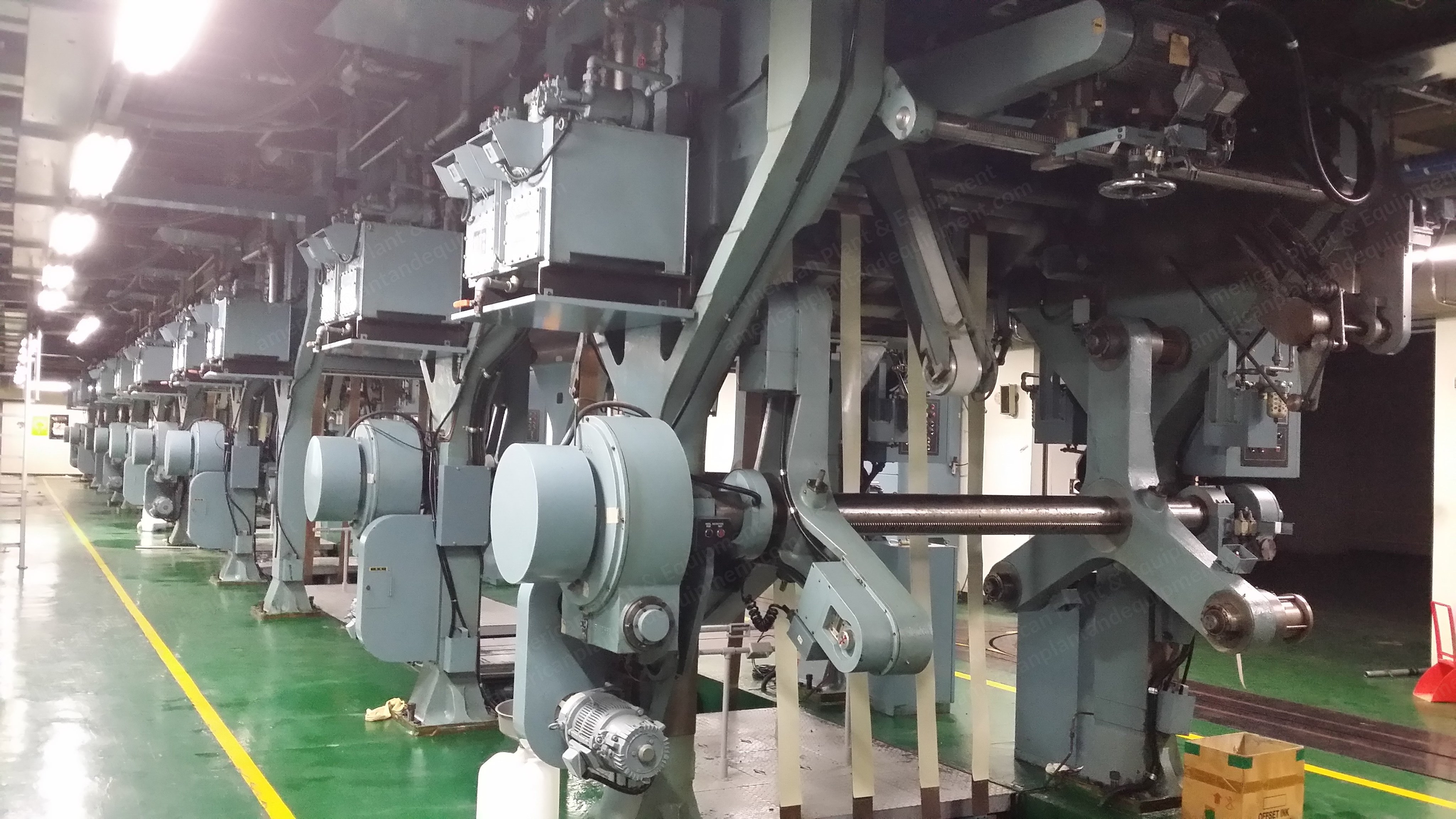

TKS, Color Top 6100 VD, 2003, 40 Page, 40 Colors, 150000 Sheets/Hour, 1372mm Max Width

TKS, Color Top 6100 VD, 2003, 40 Page, 40 Colors, 150000 Sheets/Hour, 1372mm Max Width

Description

  1. Overview
    1. Color Top 6100 VD
    2. Year: 2003
    3. News paper web offset press
    4. Printing capacity: 40 page, 40 colors
    5. Printing speed: 150,000 sheet per hour
    6. Printing width: maximum 1,372 mm
    7. Cut-off length: 578 mm
  2. Reel Stand
    1. 5 sets (20000.02.28)
    2. Type: reel type
    3. Roll diameter: maximum 50 inches (1,270 mm)
    4. Winding paper width: 54 inches (1,372 mm)
    5. Tension control device
    6. Paster arm device
    7. Infeed device
  3. Color Tower Unit
    1. 4/4 color tower unit x 5 sets
    2. Type: digital ink pump type
    3. Plate size: 1w2l and 2w2l
    4. Motor: 150 kilowatts
    5. Pin device
    6. Register guidance controller
    7. On-line ink preset
    8. Blanket washing line
    9. Dampening water spray device
  4. Folder Unit
    1. 1 set
    2. Type: 2:2 systems
    3. Capacity: maximum 48 pages
    4. Balloon former: maximum 20 pages, 4 sections
    5. Motor: 95 kilowatts
    6. Former with air cushion
  5. Control Panel
    1. 7 sets
    2. Type: shaftless type
    3. With inverter and plc
  6. Utility
    1. Spraying unit x 1 set (Nireco, 2000.03.27)
    2. 12 nozzles
    3. Control panel
    4. Blanket washing line x 5 sets (Koike, 2000.04.18)
    5. Brush type
    6. Control panel
    7. Color control unit x 5 sets (Nireco, 2000.03.240)
    8. Printing accuracy: ±0.05 mm
    9. Calibration accuracy: ±0.01 mm
    10. Registry display: perpendicular and horizontal
    11. Correction: ±2.0 mm
    12. Margin speed: maximum 120 mm per minute
    13. With standard accessories
