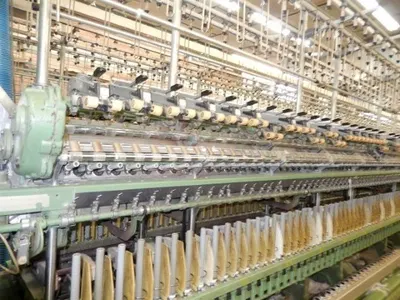

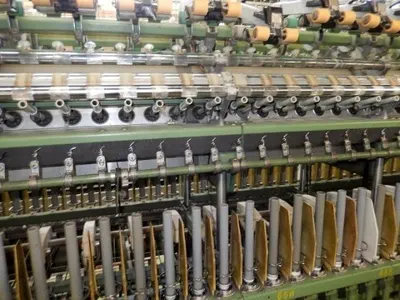

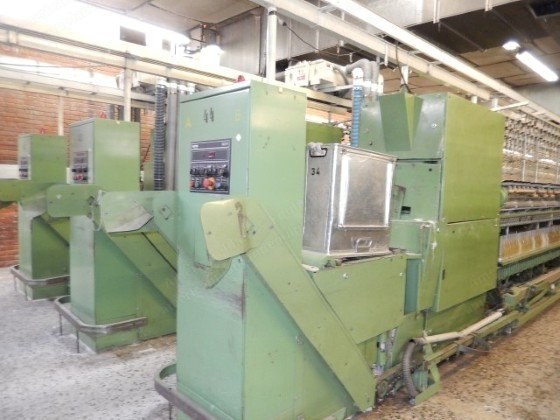

Rieter, G5/11, 1993, 1008 Spindles, 70mm Spindle Gauge, 42mm Ring Diameter, Doffing

Rieter, G5/11, 1993, 1008 Spindles, 70mm Spindle Gauge, 42mm Ring Diameter, Doffing

Description

  1. Overview
    1. Rieter ring frames
    2. Model: G5/11
    3. Year: 1993
  2. Spindle Specifications
    1. Number of spindles: 1008
    2. Spindle gauge: 70 mm
    3. Spindle type: original Rieter
    4. Spindle wharve: 21 mm
  3. Drafting and Roller Details
    1. Drafting: Rieter
    2. Cradle size: short
    3. Bottom roller diameter: 27-27-27 mm
  4. Ring and Bobbin Specifications
    1. Ring diameter/make: 42 mm
    2. Bobbin length: 210 mm
  5. Suction and Creel
    1. Pneumafil suction: individual tube
    2. Number of creel rows: 5
  6. Doffing and Gripper
    1. Doffing: available
    2. Type of gripper: membrane
  7. Yarn Cutting and Conveying
    1. Yarn cutting: spindle
    2. Bobbin conveying: peg tray

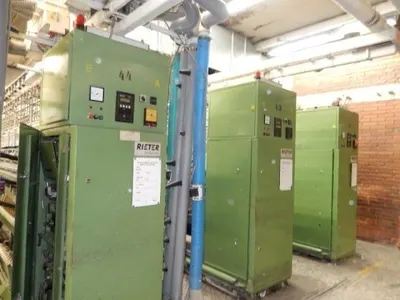

  8. Electrical and Control
    1. PHTC: Electrojet
    2. Motor kilowatts: 40 kW
    3. Inverter: PLC
