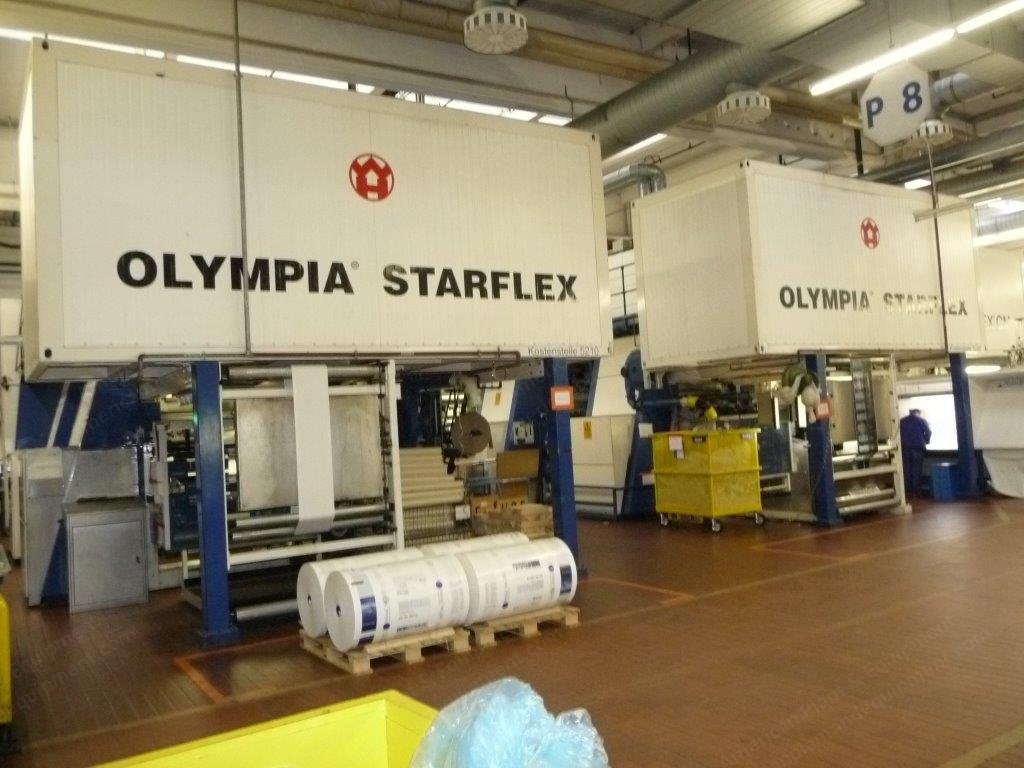

Description Overview Windmöller & Hölscher starflex (central impression) flexo printing machine Year: 1993 8 colors Specifications Film width: 1320 mm Printing width: 1270 mm Printing repeat: 300 to 1000 mm Mechanical speed: 350,000 mm/min Gear pitch: 10 mm Unwinding and Rewinding Unwinding turret: automatic Unwinding reel diameter: 1300 mm Unwinding cores: 70/76/152 mm Rewinding turret: with automatic splice Rewinding reel diameter: 13300 mm Rewinding cores: 76/152 mm Drying and Temperature Control Drying: thermo oil (central system) Temperature control unit for central impression Additional Equipment 2 web guides 14 chamber doctor blades 16 ink tanks 2 ink pumps Co2 fire system Corona ahlbrand treatment unit Robolift Slitting device (450 to 640 mm) Rewinder and unwinder with handling system Viscosity opti-control Rollers, Sleeves, and Cylinders 8 anolix rollers 60-300 l/cm 8 sleeves (850 mm repeat) 8 air mandrels 22 printing cylinders Approximately 40 gears and more
