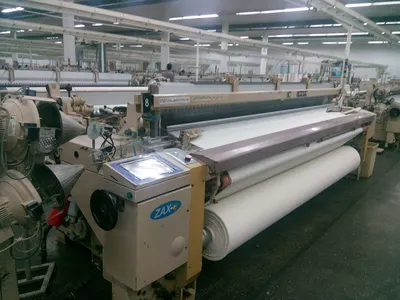

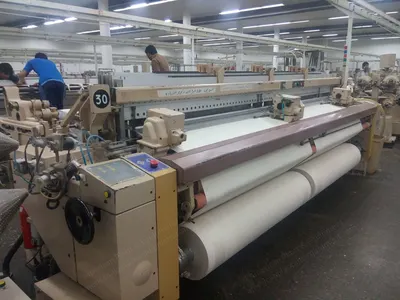

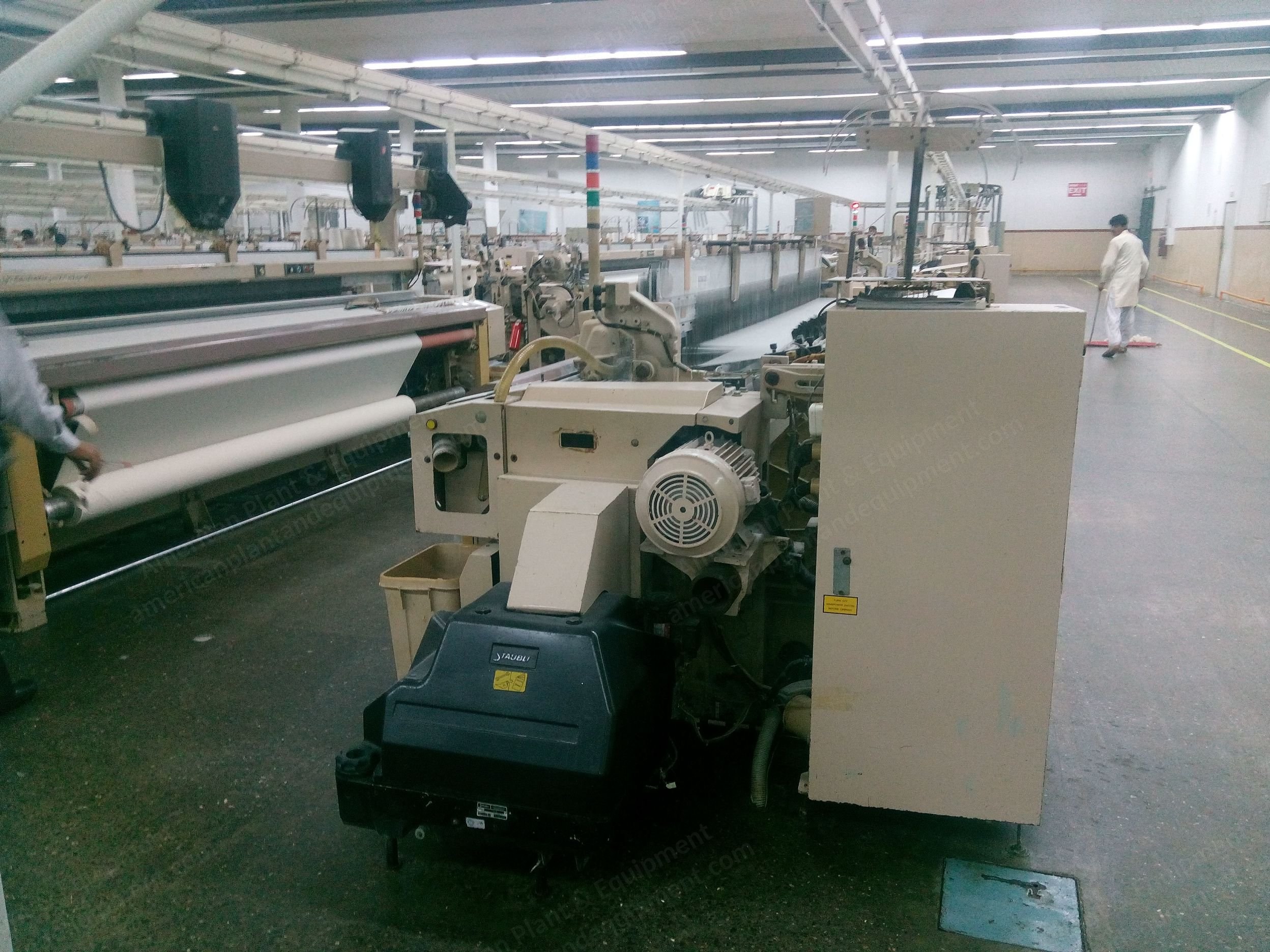

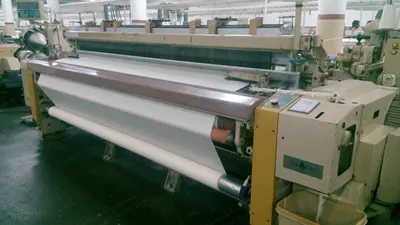

Tsudakoma, ZAX, 2000, 3400mm, 2 Colors, Cam Motion

Tsudakoma, ZAX, 2000, 3400mm, 2 Colors, Cam Motion

Description

  1. Overview
    1. Tsudakoma airjet weaving looms
    2. Type: Zax
    3. Year: 2000
    4. Width: 3400 mm
  2. Weft and Selvedge
    1. R/S 2 colors at will
    2. Leno selvedge on loom take up
    3. Built in tuck drive option
    4. WBS weft brake system for 2 colors (servo motor)
    5. Arrangement for heavy fabric for 2 colors (including balloon breaker for 2 colors) front cover
  3. Shedding Motion
    1. Staubli positive cam motion T1761 with 7 shafts without repeat gear with auto levelling (11 sets)
    2. Staubli positive cam motion T1761 with 10 shafts without repeat gear with auto levelling (24 sets)
  4. Warp and Cloth Take Up
    1. Single warp beam with 1000 mm diameter flanges with each loom
    2. Single cloth roll for each loom
  5. Heald Frames and Droppers
    1. Total 306 heald frames
    2. Riderless type for all 35 looms
    3. Flat head
    4. Riderless type, duplex type
    5. Dropper bars total 210 sets
  6. Accessories
    1. Optifil 525,000 pieces
