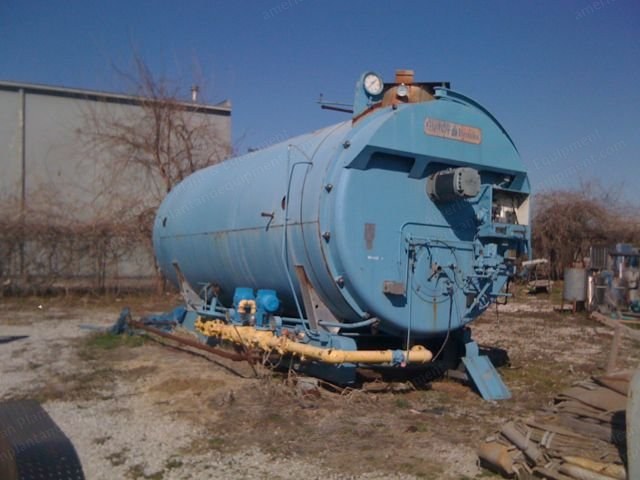

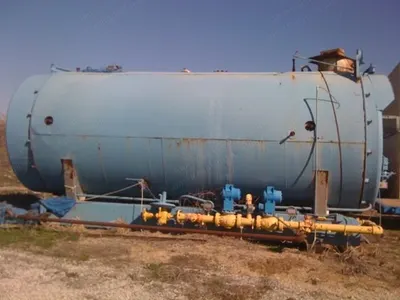

Description Overview Cleaver Brooks boiler Model: CB200-600 Year: 1981 600 horsepower In strict accordance with ASME Section I standards, stamped for 150 psi operation, 4 pass dry back design MAWP: 150 psi Design pressure Fuel: natural gas / #2 oil fired Gas / #2 can be converted to heavy oil Input: 25,200,000 btu Gross output: 20,100,000 btu Steam output: 20,700 pounds per hour Burner is attached Specifications ASME Section I shell, 3000 sq. ft. heating surface, 2 inches insulation Painted galvanized jacket Full modulation Fireye E-110 Honeywell three pressuretrol set up, L404A, L404C, L91 McDonnell Miller 193 LWCO, MM 157 SLWCO 2 new Kunkle safety relief valves Feedwater isolation and check valves 1 slow, 2 quick opening blowdown valves 8 inches 300# flanged steam line connection, with valve 24 inches nominal stack diameter (flanged with damper) 480/60/3ph blower voltage, 120v control circuit Condition Guaranteed to pass hydro, good tubes, good paint, available with new paint Dimensions And Weight 284 inches overall length 128 inches height at stack (add approximately 8 inches for FWT) 118 inches width with controls 47,000 pounds shipping weight
