Reggiani, Terma 240, 2008, 12 Chambers, Width 2400mm

Reggiani, Terma 240, 2008, 12 Chambers, Width 2400mm

Description

  1. Overview
    1. Brand: Reggiani
    2. Model: Terma 240/12
    3. Machine type: Stenter
    4. Year: 2008
  2. Specifications
    1. Maximum finishing width: 2400 mm
    2. Minimum finishing width: 600 mm
    3. Entry chamber length: 4500 mm
    4. Exit chamber length: 3000 mm

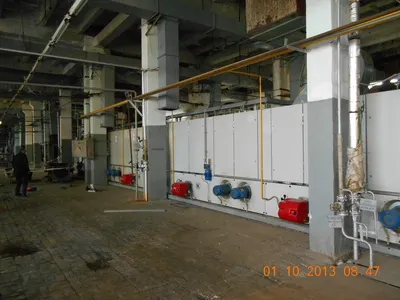

    5. 12 chambers, each 2000 mm long
    6. Pin clip type
    7. Gas heated
    8. Speed: 100 m/min
    9. Evaporation capacity: 3240 kg/hr H2O
    10. Chain size: 125 mm
    11. Horizontal chains that do not require lubrication

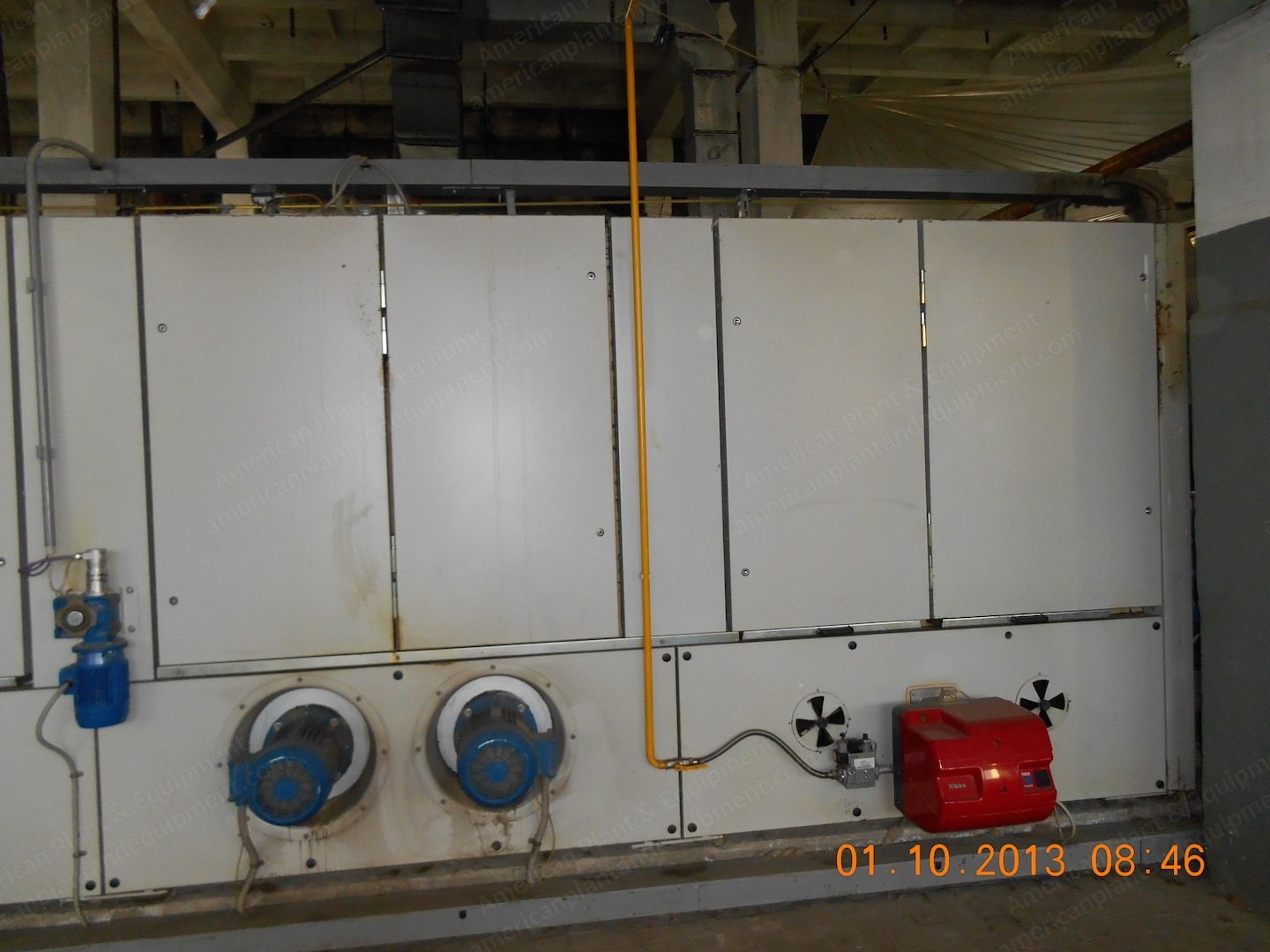

    12. Each of the 12 sections has 8 air ducts and 2 fans
  3. Included Equipment
    1. Impregnating padder model Flc-3-240
    2. 3 cylinders with diameters: 300 mm, 150 mm, 300 mm
    3. Rollers width: 2600 mm
    4. Frame made from stainless steel Aisi 304
    5. Fabric guiders Kf2020
    6. Maximum work pressure: 18 tons
    7. Squeezing rollers
    8. Mahlo weft straightener Orthomat Rfmc 126e model 240
    9. 6 heads
    10. Width: 2400 mm
    11. 3 diagonal rollers
    12. 2 curved rollers
    13. Stenter entry equipped with: 2 fabric guiding stainless steel rollers diameter 140 mm, 1 feeding stainless steel roller diameter 220 mm
    14. Entry chamber includes: fabric centering device Krs51 E+L with photo sensors Fr55, 2 extra brushes
