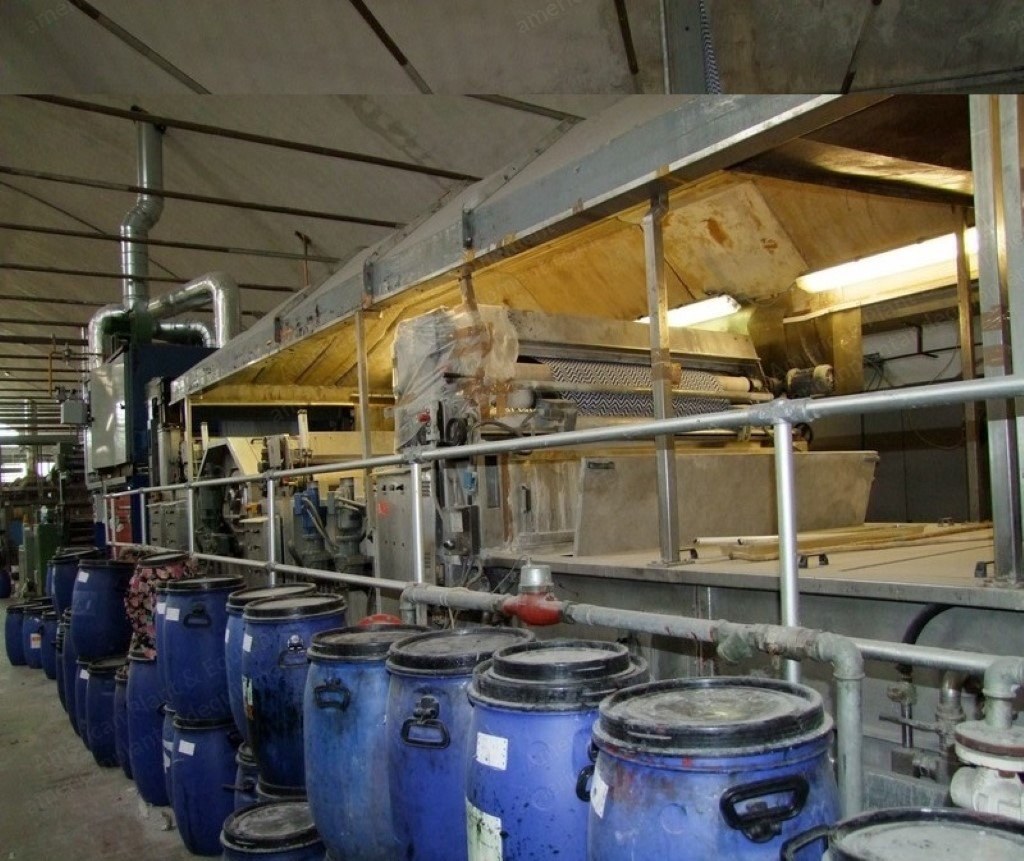

Arioli, 1995, Continuous Washing Range, 1800mm Working Width, 5 Tanks

Name: Arioli, 1995, Continuous Washing Range, 1800mm Working Width, 5 Tanks
Brand: Arioli
SKU: P-2689
Availability: SoldOut

‹ Go Back Next Product ›

Sold

Description

Overview
1. Continuous washing line after printing for fabrics
2. Manufacturer: Arioli
3. Year: 1995
4. Width: 1800 mm
5. Roller width: 2000 mm
6. With 5 tanks
Configuration
1. High entrance with tension bars and Bianco guider and spreaders
2. 1st tank with 1 perforated drum, diameter 1.200 mm
3. Intermediate squeezer with 2 bowls
4. 2nd tank with 4 perforated drums, diameter 450 mm
5. Intermediate squeezer with 2 bowls
6. 3rd tank for the fabric relaxing, with double conveyor in stainless steel (the fabric runs in between the two conveyors)
7. Intermediate squeezer with 2 bowls
8. 4th tank with 4 perforated drums, diameter 450 mm
9. Intermediate squeezer with 2 bowls
10. 5th tank with 1 perforated drum, diameter 1.200 mm
11. Intermediate squeezer with 2 bowls
12. Heavy squeezer with 2 bowls, with impregnation tank
13. Exit by plater
14. Tanks are equipped with self-cleaning filter

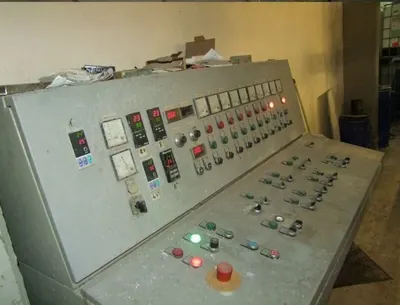

15. Electric control board and control console
Dimensions
1. Length: about 16.000 mm
2. Width: about 4.500 mm
Condition
1. The machine has no plates but the construction year was found on the electric drawings

Additional Specifications

Dimensions

Dimensions	16000x4500mm
Length	16,000 mm
Width	2,000 mm
Working width	1,800 mm

Specifications

Included

['High entrance with tension bars and Bianco guider and spreaders', '1st tank with 1 perforated drum (diameter 1200mm)', '2nd tank with 4 perforated drums (diameter 450mm)', '3rd tank for fabric relaxing with double stainless steel conveyor', '4th tank with 4 perforated drums (diameter 450mm)', '5th tank with 1 perforated drum (diameter 1200mm)', 'Intermediate squeezers with 2 bowls', 'Heavy squeezer with 2 bowls and impregnation tank', 'Exit by plaiter', 'Self-cleaning filters on tanks', 'Electric control board and control console']
