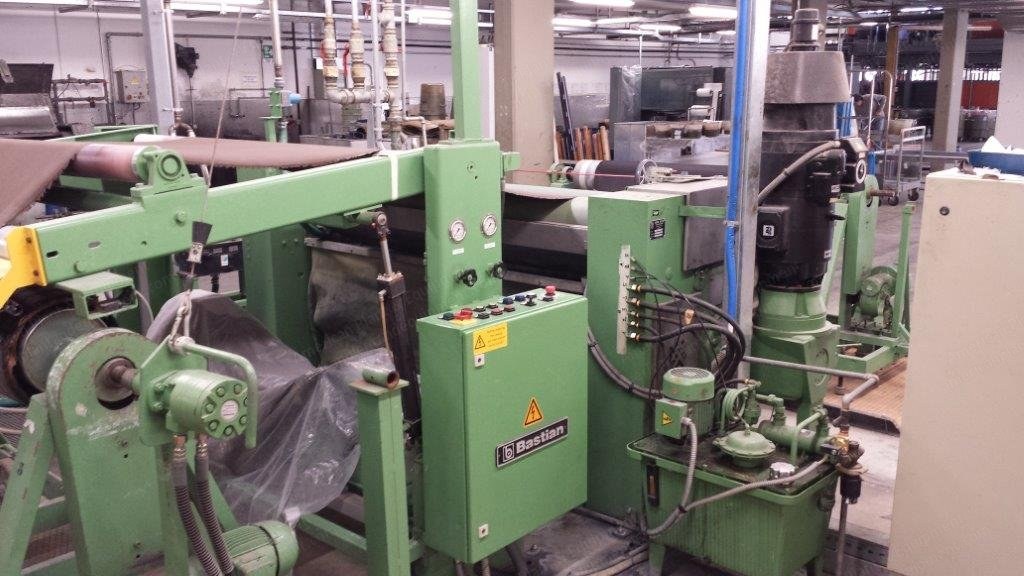

Kusters, 222.11, 1996, Dyeing Padder, 1800mm Working Width, 2 Floating Cylinders

Kusters, 222.11, 1996, Dyeing Padder, 1800mm Working Width, 2 Floating Cylinders

Description

  1. Overview
    1. Kusters dyeing padder
    2. Model: 222.11
    3. Year: 1996
  2. Specifications
    1. Roller width: 2000 mm
    2. Working width: 1800 mm
    3. Maximum speed: 100 m/min
    4. Maximum power: 8.2 kW
    5. Maximum pressure of heating steam: 2 bars
    6. Maximum oil pressure: 3.2 bars
    7. Maximum air pressure: 4 bars
    8. Amount of oil in the oleodynamic station: 63 liters (kind of oil CL 150 DIN 51502 or CB/ISO 3498)
  3. Components
    1. 2 floating cylinders
    2. Impregnation tank with capacity about 20 liters
    3. Dosing double pump

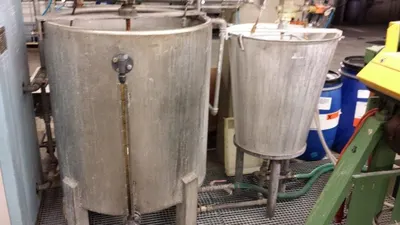

    4. Kitchen color with 2 tanks with cooling spiral pipe for constant maintenance of the temperature of the dyeing bath
    5. Cooling group to maintain a constant temperature of the dye bath
    6. Automatic washing plant of machine
    7. Oleodynamic station
    8. Fabric exit with big batch roll

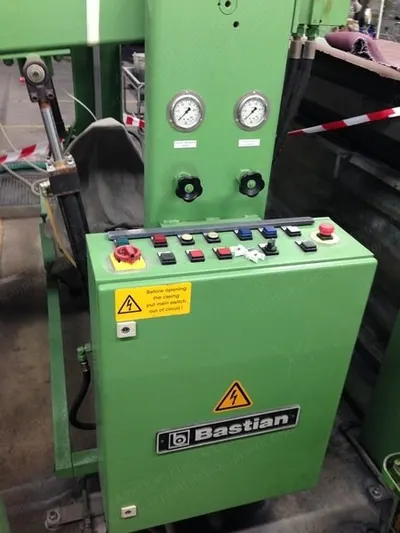

    9. Electrical panel with control pulpit

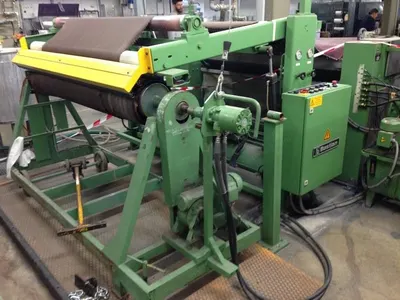

    10. The dyeing line is supplied with 5 frames roller motorized for big batch roller
