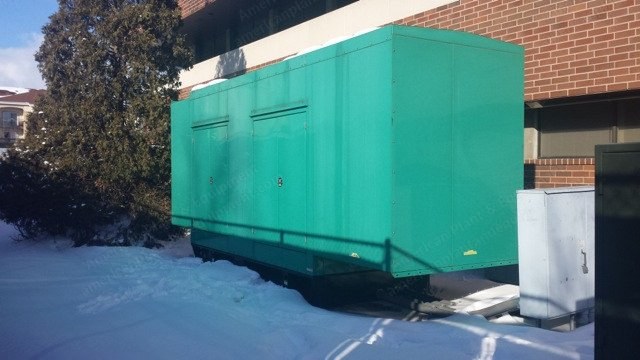

Cummins, KTTA19G2, 1995, 500 kW, 625 kVA, 208/120V

Description

  1. Overview
    1. Cummins/Stamford generator set
    2. 500 kilowatts, 625 kva
    3. 208/120 volts
    4. Rating: standby
    5. Hours: 561

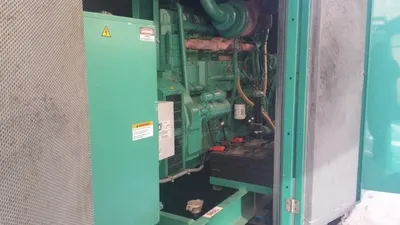

  2. Engine Specifications
    1. Engine model: ktta19g2
    2. Engine hours: approximately 861
    3. The cummins engine was built in 1995 and was purchased in 2008 with 300 hours on it
  3. Service History
    1. The engine was fully serviced and a new generator end was installed with a new level iii enclosure by the local cummins dealer
    2. The unit has been exercised weekly and load bank tested annually since turn up
    3. All service records are available on request since 2008
  4. Known Issue
    1. The only known issue with the generator set right now involves the radiator
    2. There is a cooling reservoir at the top of the radiator which is tapped by all the cooling coils running through the radiator
    3. Several of these have corroded and the unit leaks radiator fluid during exercise
    4. The leak is now slow and does not cause the unit to overheat or shutdown
    5. Cummins has suggested that the radiator be replaced rather than repaired
