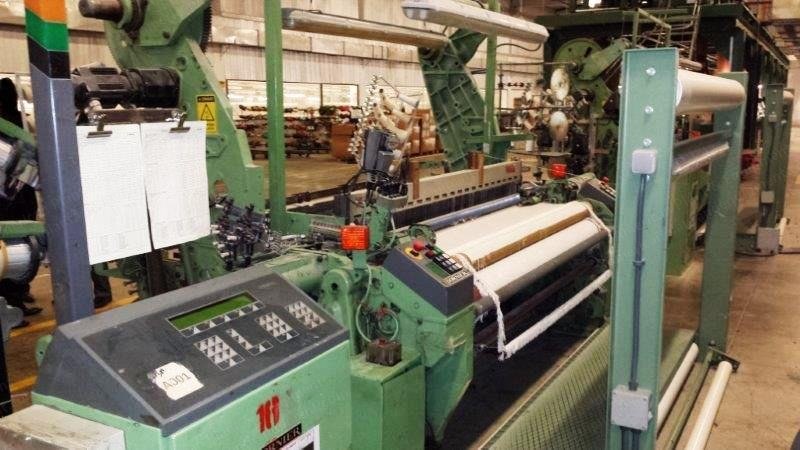

Dornier, HTVS8/S, 1997, Rapier Weaving Machine, 1900mm Width, 8 Colors, Staubli Electronic Dobby

Dornier, HTVS8/S, 1997, Rapier Weaving Machine, 1900mm Width, 8 Colors, Staubli Electronic Dobby

Description

  1. Overview
    1. Dornier rapier weaving machines
    2. Type: HTVS8/S
    3. Year: 1997
    4. Nominal width: 1900 mm
    5. With upper and lower beam
    6. Dialog panel AT1
    7. Ecs (color selector): prepared for 8, but 5 installed
  2. Dobby and Harness
    1. With Staubli electronic dobby type 2667
    2. Maximum 28 harness drive
    3. Fitted with 22 harness drive
  3. Warp and Cloth Control
    1. With upper beam device
    2. Ewl (electronic warp let off, top and bottom beam)
    3. Ect (electronic cloth take-up)
    4. Leno selvedges
  4. Accessories per Loom
    1. 3 warp beam diameter 800
    2. Batching motion with changer device and inspection light
    3. 8 heald frames
    4. 4 accumulators
    5. Warp stop motion for 6 bars / 4 installed
    6. 4000 droppers
    7. 4000 healds
