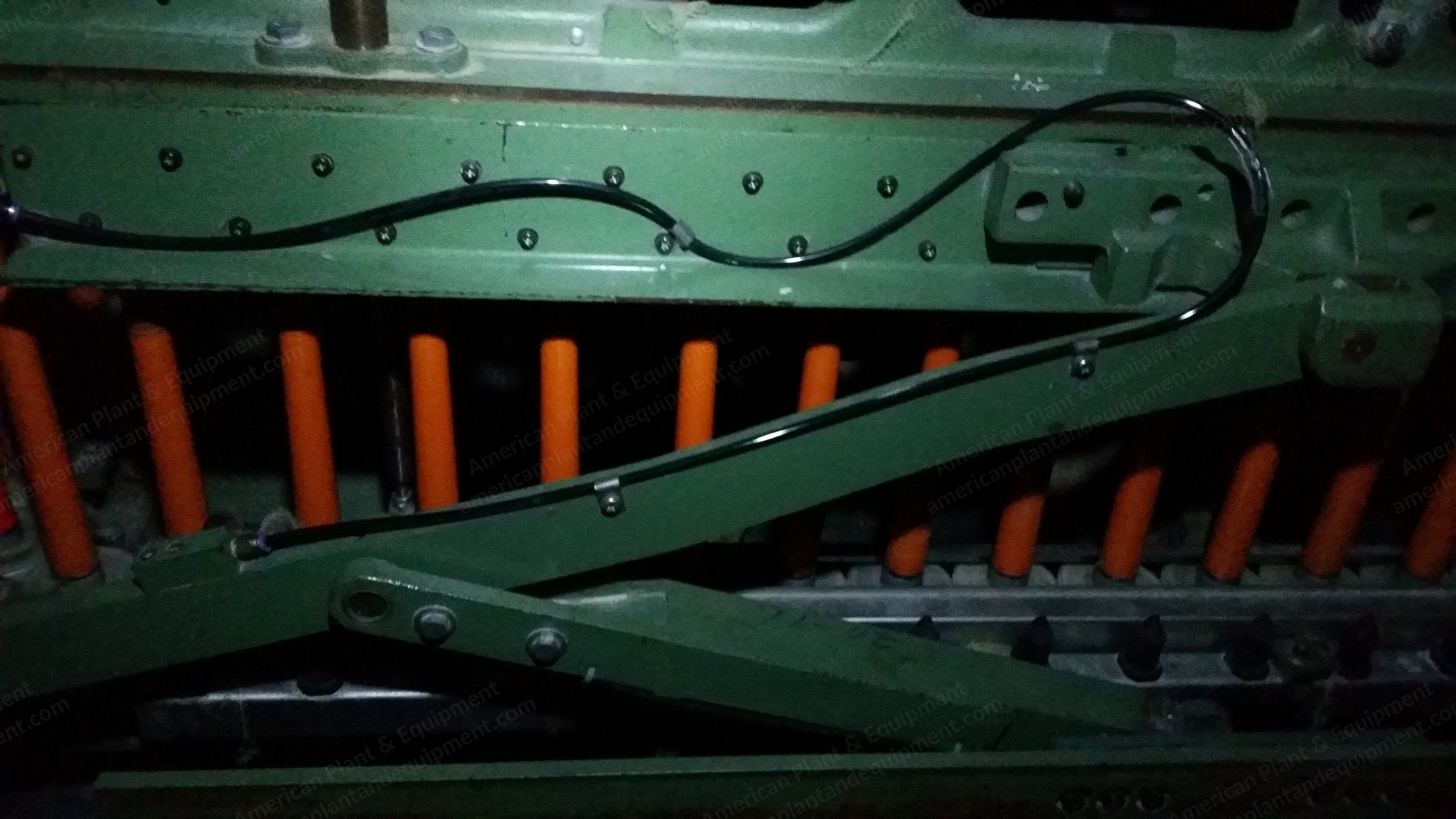

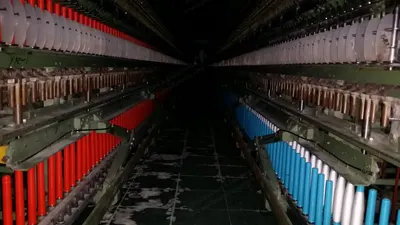

Howa, UA-33F, 1990, Ring Spinning Frame, Linked Murata Coner, 9600 Spindles, 75mm Gauge

Howa, UA-33F, 1990, Ring Spinning Frame, Linked Murata Coner, 9600 Spindles, 75mm Gauge

Description

  1. Overview
    1. Howa ring frame
    2. Model: UA-33F
    3. Year: 1990
    4. 10 sets x 960 spindles = 9,600 spindles
  2. Specifications
    1. Gauge: 75 mm
    2. Spindle wrap diameter: 23.8 mm
    3. Ring diameter: 42 mm
    4. Draft system: SKF
    5. Bobbin height: 210 mm
    6. Bottom roller diameter of all 3 front, middle, back: 27 mm
    7. Credle: medium (10 sets)
    8. Overhead cleaner: with
    9. Main motor: 44 kilowatts
    10. Power: 440 volts x 60 hertz
  3. Linked Coner
    1. Murata linked coner
    2. Year: 1989
    3. 10 sets x 28 drums
    4. Steel drum (no ceramic guide): 2W
    5. Yolk credle
    6. Cone angle: 5 degrees 57 feet
    7. Yarn clearer: Keishokki KC60-C
    8. Air splicer nozzle: G2/G2Z
    9. With waxing device
    10. With travelling blower
    11. Central suction blowing: with Ebara suction blow fan
    12. Power: 440 volts x 60 hertz
  4. Quantity
    1. 10 sets
