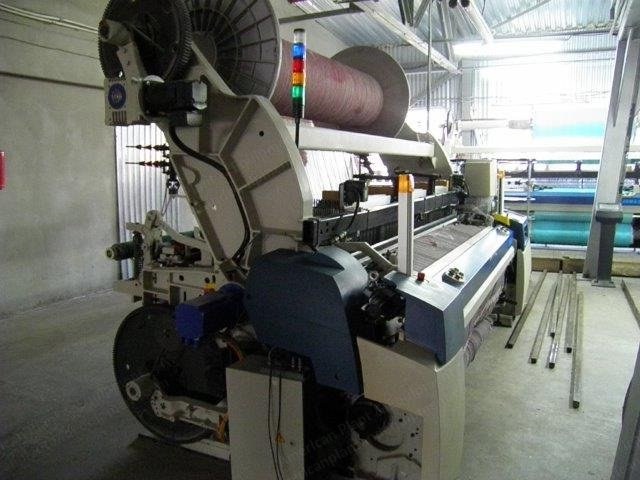

Vamatex Dyna Terry Rapier Loom, Picanol Airjet Terry Towel Loom

Vamatex Dyna Terry Rapier Loom, Picanol Airjet Terry Towel Loom

Description

  1. Overview
    1. Three Picanol terry plus airjet terry looms, year 2005 to 2006, condition almost new.
    2. Three Vamatex dyna-terry rapier weaving machines for terry fabrics, year 2007.

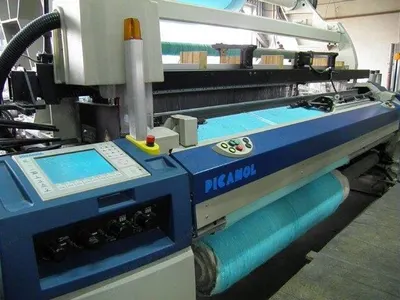

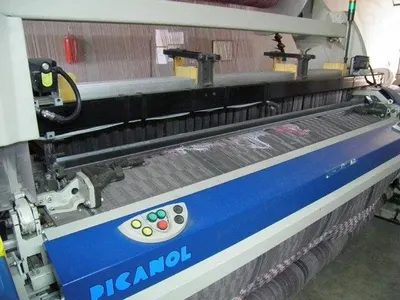

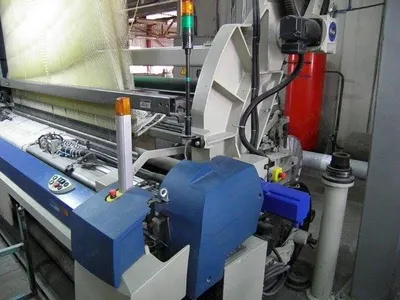

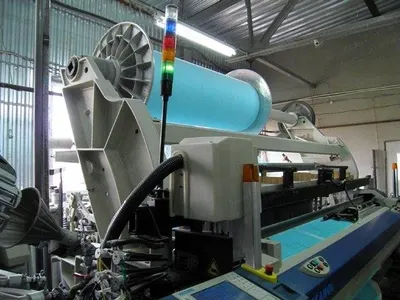

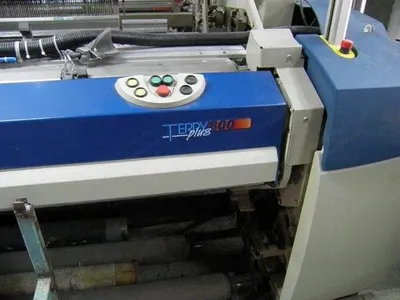

  2. Picanol Terry Plus Airjet Terry Looms (2005-2006)
    1. Two with dobby and one with jacquard.
  3. Picanol Terry Plus 800-6-R Airjet Loom (2005)
    1. Reed space: 2600 mm.
    2. Six colors.

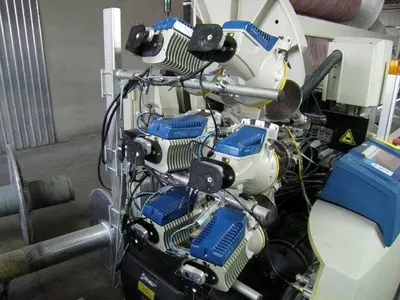

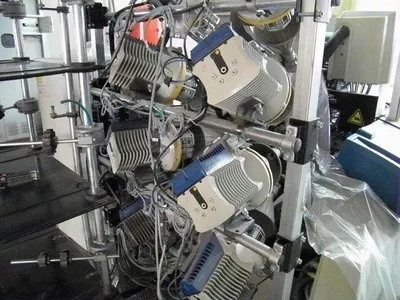

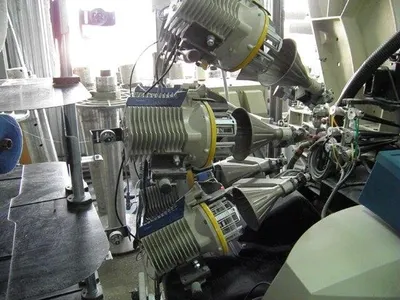

    3. Six Picanol 1131 can plus weft accumulators.
    4. Staubli dobby type 2861-16k for 16 shafts.
    5. 14 shafts provided with drc30 drive harness connection.
    6. Elsy electronic selvedge system.
    7. Pft (programmable filling tensioner) and pso (pre-winder switch off).
    8. Ground wrap beam 805 mm diameter.

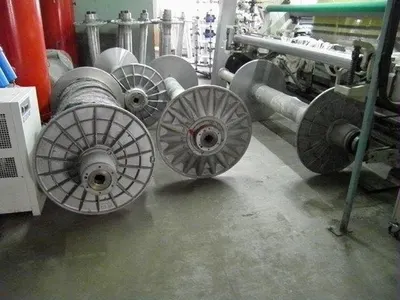

    9. Pile warp beam 1000 mm diameter.
    10. One ground warp beam, type 190.
    11. One pile warp beam.
    12. Two adapters.
    13. One cloth roller.
    14. Approximately 5000 droppers, 5000 heald wires.
    15. 380 volts, 50 hertz.
  4. Picanol Terry Plus 800-6-R Airjet Terry Loom (2006)
    1. Reed space: 2300 mm.
    2. Six colors.
    3. Six weft accumulators.
    4. Staubli dobby type 2861-a6k for 16 shafts.
    5. 14 shafts provided with drc drive harness connection.
    6. Elsy electronic selvedge system.
    7. Pft (programmable filling tensioner) and pso (pre-winder switch off).
    8. Ground warp beam 805 mm diameter.
    9. Pile warp beam 1000 mm diameter.
    10. One ground warp beam 805 mm, type 190.
    11. One pile warp beam.
    12. Two adapters.
    13. One cloth roller.
    14. 380 volts, 50 hertz.

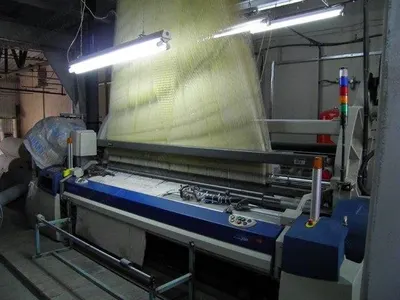

  5. Picanol Terry Plus 800-8-J Airjet Loom (2006)
    1. Reed space: 2600 mm.
    2. Six colors, six weft accumulators.

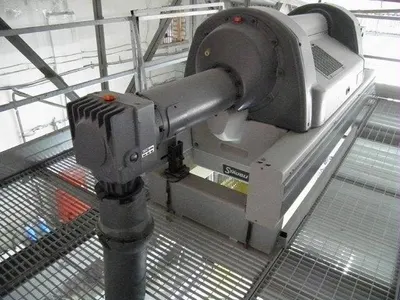

    3. Staubli electronic jacquard type lx1602 for 3072 hooks and harness with springs and 5756 ends.

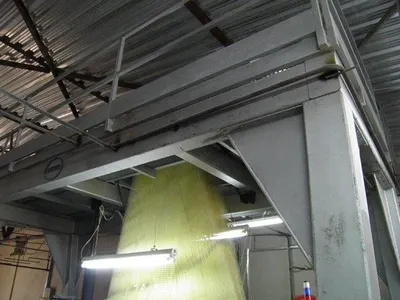

    4. Lietti steel jacquard gantry.
    5. Elsy electronic selvedge system.
    6. Pft (programmable filling tensioner) and pso (pre-winder switch off).
    7. Ground warp beam 805 mm diameter.
    8. Pile warp beam 1000 mm diameter.
    9. One ground warp beam 805 mm diameter.
    10. One pile warp beam 1000 mm diameter.
    11. Two adapters for working from beams, type 190.
    12. One cloth roller.
    13. Approximately 5000 droppers.

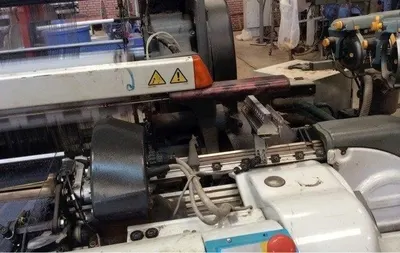

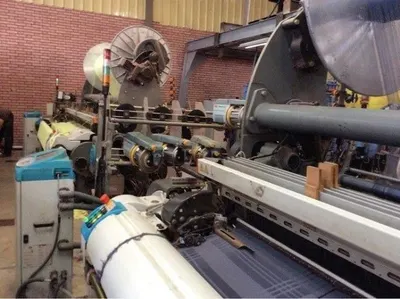

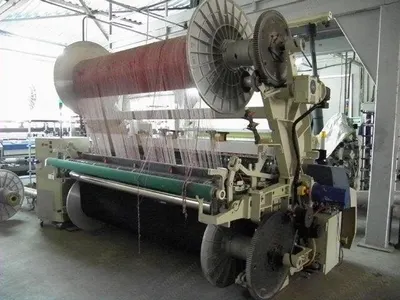

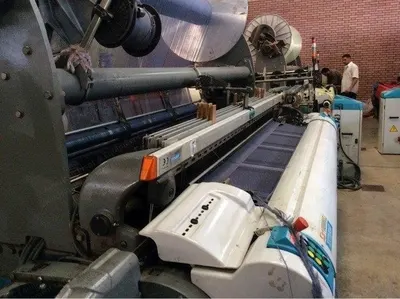

  6. Vamatex Dyna-Terry Rapier Weaving Machines (2007)
    1. Reed width: 2600 mm.
    2. Dobby fimtesile 7p-20 shafts.
    3. Eight colors.
    4. Four beams 800 + 1000 mm.
    5. 6250 droppers.
    6. Six pre feeders and two cloth rollers.
    7. 16 heald frames.
