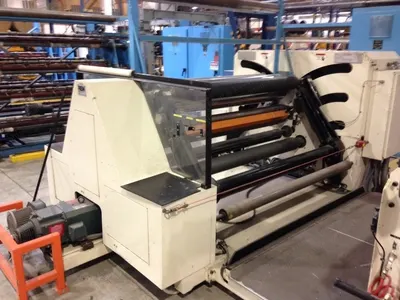

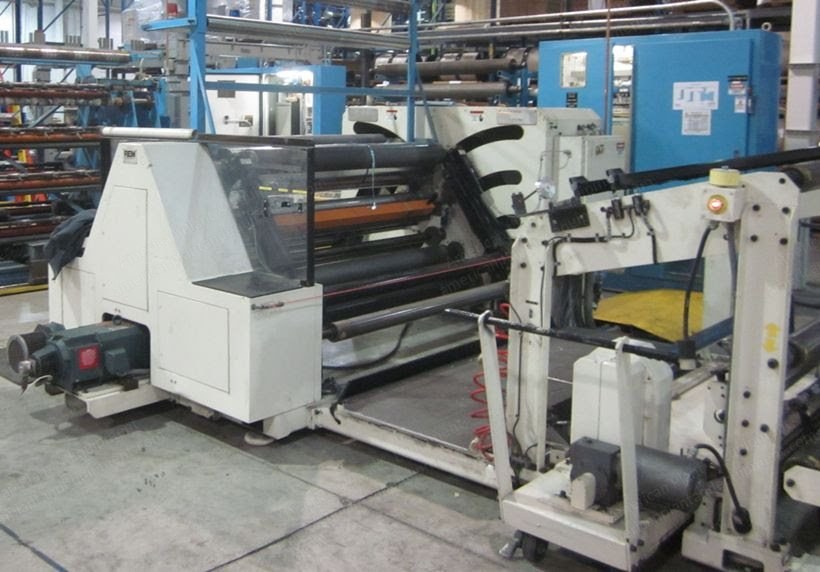

Rem, 15000, 1993, 66 Inches Width, Duplex Surface Center Slitter Rewinder

Rem, 15000, 1993, 66 Inches Width, Duplex Surface Center Slitter Rewinder

Description

  1. Overview
    1. Rem model 15000 duplex surface center slitter rewinder
    2. Year: 1993
  2. Specifications
    1. Maximum web width: 66 inches with a maximum speed of 1000 fpm
    2. Maximum rewind diameter: 44 inches
    3. Rewind shafts: 6 inches in diameter, other shaft sizes are available
    4. Razor in air slitting with oscillating razor blade holder, shear can be added
    5. Power requirement of 460/3/60
    6. Rewind tension range of 1 to split
  3. Rewind System
    1. Duplex (dual) rewind stations are mounted on pivoted rewind arms for minimum gap (short draw) and center/surface rewinding
    2. The rewind shafts are removable and locate in quick-opening shaft latches

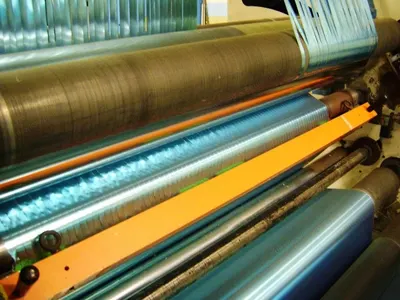

    3. The rewind station winds against a low inertia, pneumatically located, driven, chrome plated, winding drum (pack roll)
    4. Surface winding pressure is maintained from start to finish without regard to changing diameters or roll weight and without the need for programming to compensate for changing roll weight
  4. Drive System
    1. Driven, neoprene rubber covered pull rolls located before slitting
    2. Variable speed reliance dc drive system including: 20 hp 1750 rpm main, pull roll drive and 30 hp 1750 rpm rewind drives
    3. The rewind drives will automatically reduce rpm as diameters increase maintaining minimum slip in differential
    4. Included are independent rates of acceleration and deceleration, preset slow speed, speed indication and blowers on the motors
  5. Controls
    1. Allen bradley slc 500 and tcp panelview display for 99 product recipes
    2. Montalvo model sc-2 microprocessor based, multifunction, automatic digital tension controller utilizing a transducer roll and dual load cells with a montalvo air cooled brake
    3. Fife automatic edge guiding system with manual, automatic, left and right controls
  6. Unwind Stand
    1. Unwind stand with rolling base can fit a maximum core travel
