Shutdown in April 2012 and barred over every 12 hours since
All attached pipework goes with the unit apart from the HV system which is used in the systems left behind

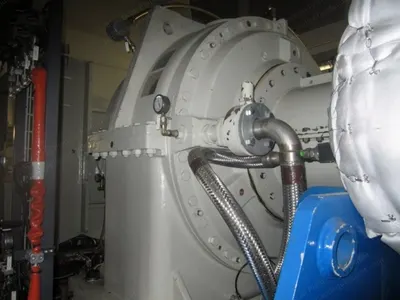

The system is approximately 14 meters long by approximately 4 meters wide and comes complete on a purpose built skid unit
The unit was supplied on the skid unit so it can be transported with abnormal load conditions

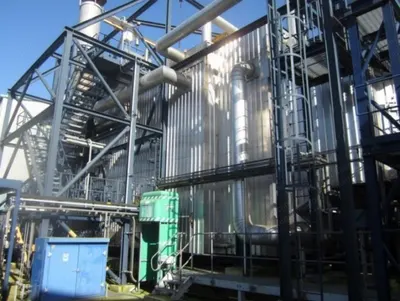

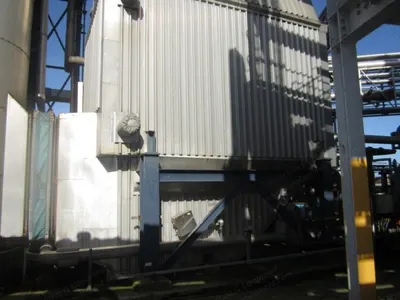

Waste Heat Boiler 2 (CHP2)
Conventional Aalborg AX-4 water tube waste heat boiler producing superheated high pressure steam with a maximum rated output of 75 te/hr and an unfired output of approximately 14 te/hr

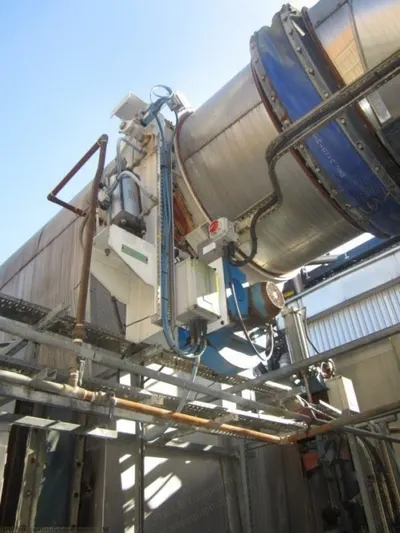

Equipped with twin R & V in-duct register burners for supplementary firing
NOx levels from WHB2 are not an issue (due largely to the much lower NOx levels from GT2)
The much larger burner capacity (49 MW maximum heat input when supplementary firing, 60 MW on fresh air firing) means that the minimum firing capacity (4 MW on supplementary firing and 6 MW on fresh air firing) are correspondingly higher than for WHB1 and therefore even on minimum firing, will produce a significant quantity of steam

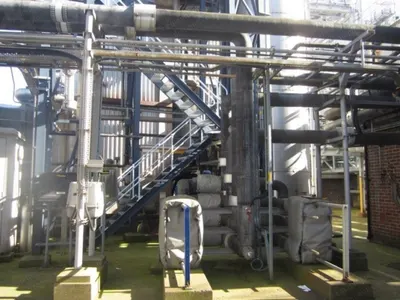

Waste Heat Boiler 1 (CHP1)
Conventional water-tube waste heat boiler producing superheated steam at 43 barg and between 360°C and 380°C, producing approximately 11 te/hr of steam when running on turbine exhaust gas (TEG)
Equipped with two R&V model TTL/MG 12.5 in-duct register burners for supplementary firing
This is a design of burner routinely used by the boiler manufacturer (Aalborg) for this type of application
The R&V burner design is well tried and tested in this type of application and has a reference list of over 300 similar applications since 1976
The in-duct register burner is commonly used across Europe in this type of application in preference to the grid type burner more commonly used in North America
The waste heat boiler can be fully fresh-air fired if the gas turbine is not available
Although WHB1 is rated at 45 te/hr, it is regarded as being incapable of operation at rates above about 35 te/hr due to flame lift off
Condition
The plant is in excellent condition
Available immediately and inspection any time
