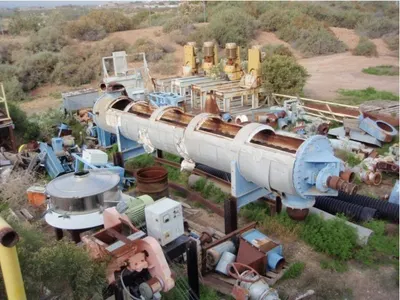

Mica Processing Plant, Wet and Dry Processing, with Hosokawa, Alpine, Heyl & Patterson, Eimco, Bird, Alfa-Laval, Cedarapids Equipment

Mica Processing Plant, Wet and Dry Processing, with Hosokawa, Alpine, Heyl & Patterson, Eimco, Bird, Alfa-Laval, Cedarapids Equipment

Description

  1. Hosokawa Micron Air Classifier
    1. Model: MS-1
    2. Complete with 0.75 kilowatts motor through V-belt drive
    3. Maximum rpm 2300
    4. Mild steel construction
    5. Last used on industrial minerals separation

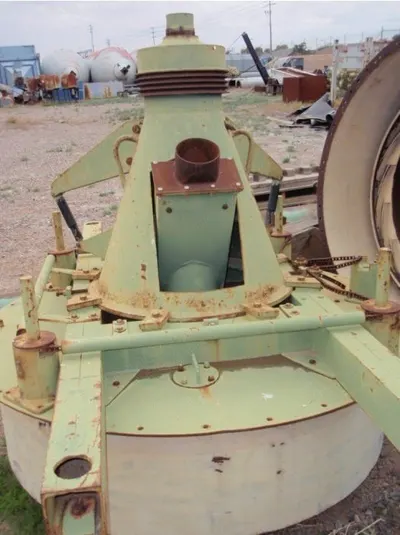

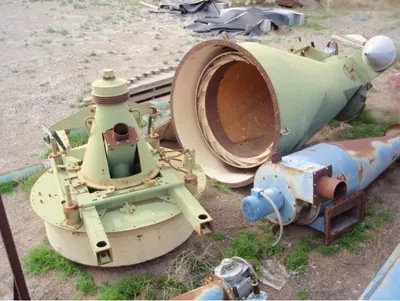

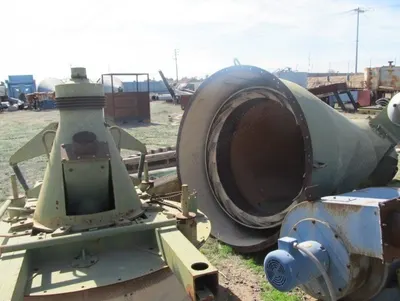

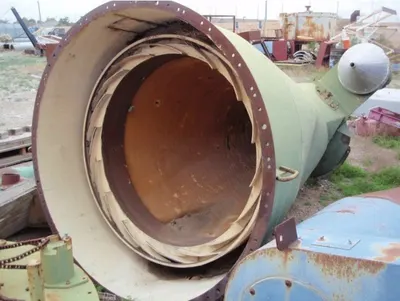

  2. Alpine Air Classifier
    1. Type: A1000 MPV1
    2. Year: 1972
    3. Approximately 6 feet diameter
    4. Missing the motor
    5. Very good condition

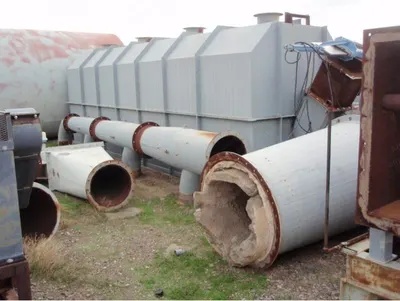

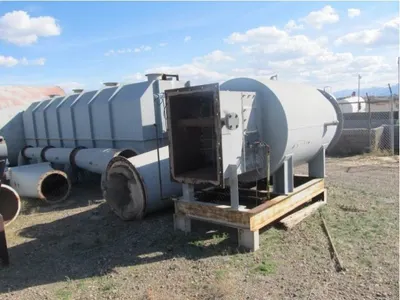

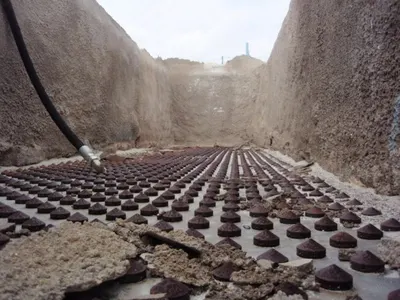

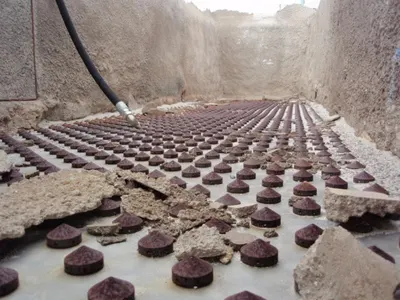

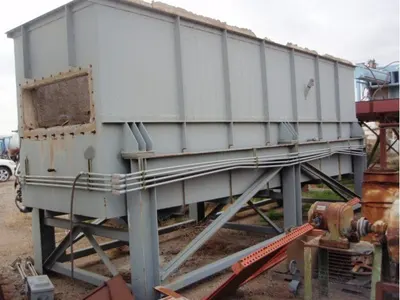

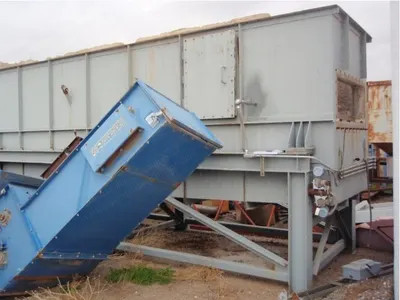

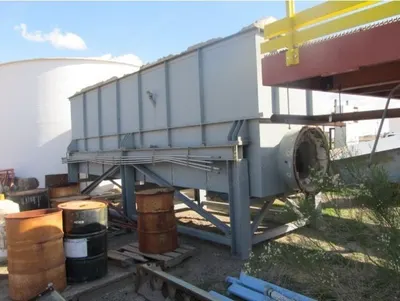

  3. Heyl and Patterson Fluid Bed Dryer
    1. High temperature
    2. Year: 1999
    3. 4 feet 6 inches wide x 21 feet long bed
    4. Refractory lined chamber designed for 700°F
    5. Last used on mica
    6. Propane burner, 4.5 million btu/hour
    7. Baghouse dust collector, 7700 cfm at 4.5/1, 30 hp
    8. 4500 cfm fluidizing blower
    9. 7700 cfm exhaust blower at 230°F

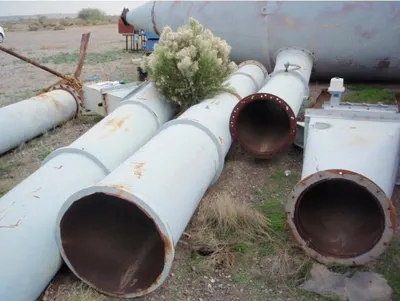

    10. Includes ductwork, instrument, controls and drawings
    11. Excellent condition
    12. Dismantled and ready to load

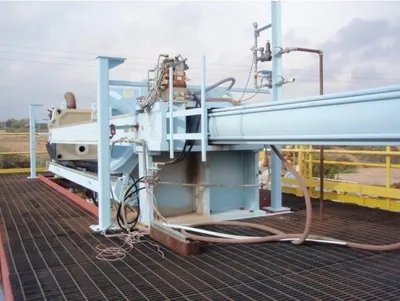

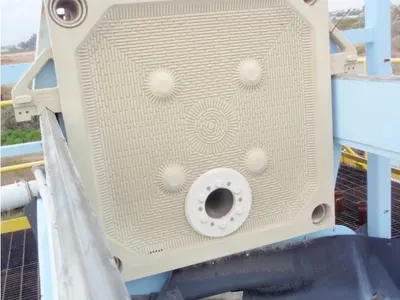

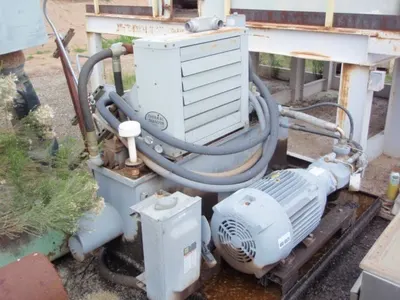

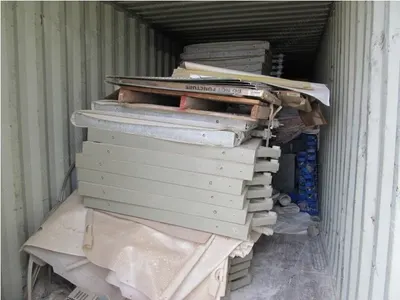

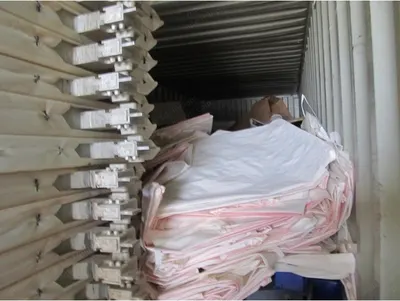

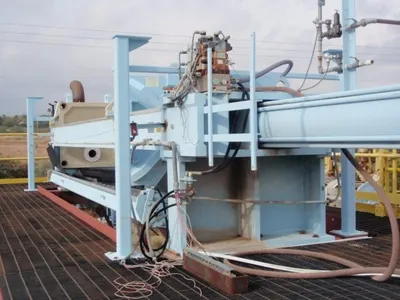

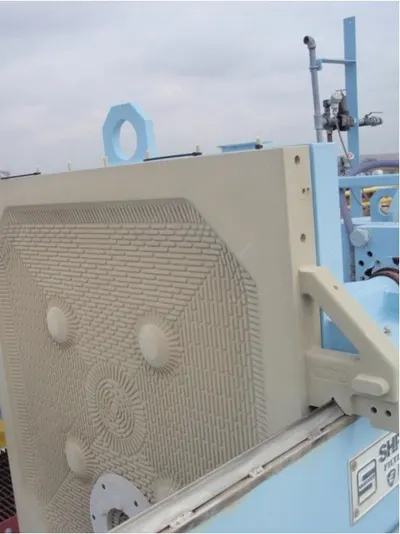

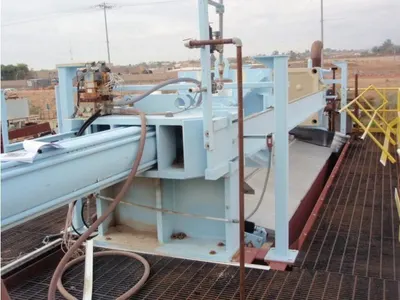

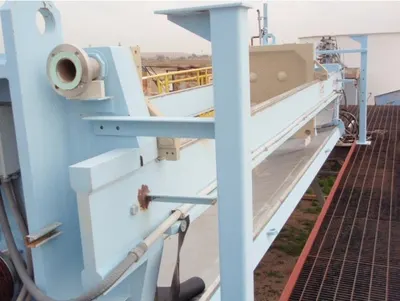

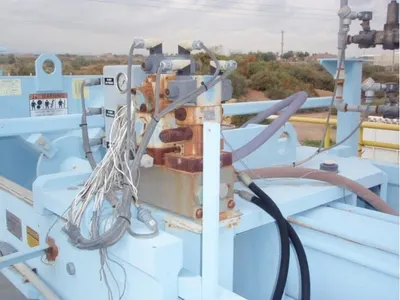

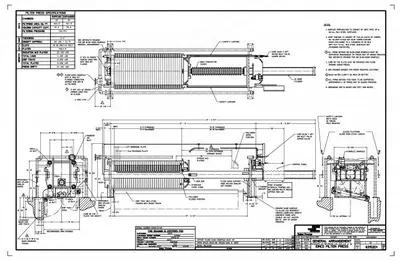

  4. Eimco Shriver Filter Press
    1. Model: M1200FB-22-RP/MEME-HS-2255-2
    2. Year: 1999
    3. 48 inches x 48 inches (1200 mm x 1200 mm) polypropylene plates
    4. 32 chambers
    5. 2 inches cake thickness
    6. 761.9 square feet
    7. 55.0 cubic feet cake capacity
    8. Filter pressure 150 psi
    9. Center feed
    10. Cake wash manifold
    11. Air blow back for cake discharge
    12. 204 ton hydraulic closing with 25 hp power pack
    13. Cake drops into stainless hopper with clam shell discharge

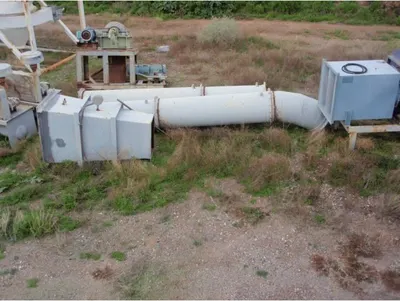

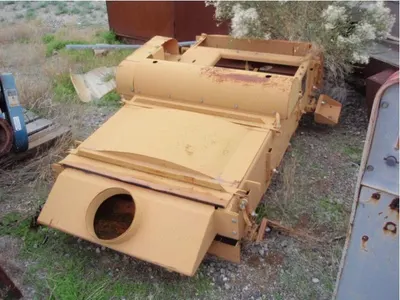

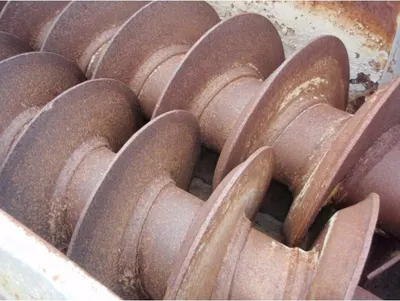

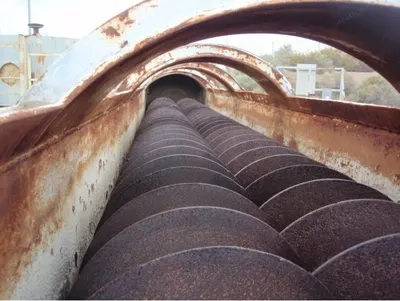

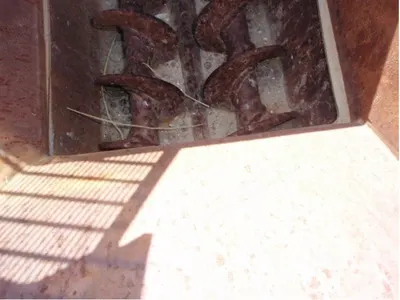

  5. Holoflite Double Screw
    1. Each screw is 16 inches diameter x 16 feet long
    2. Mild steel construction
    3. Screws are enclosed in a cylindrical chamber
    4. Approximately 3 feet diameter x 17 feet long
    5. No Johnson joints
    6. Screws are driven by 5 hp motor through gearbox
    7. 16 inches diameter flange discharge
    8. On stand

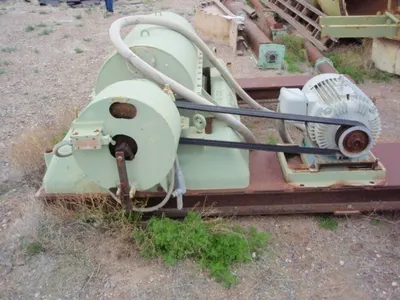

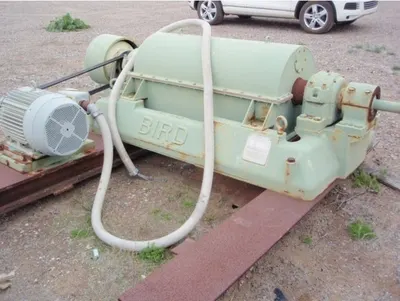

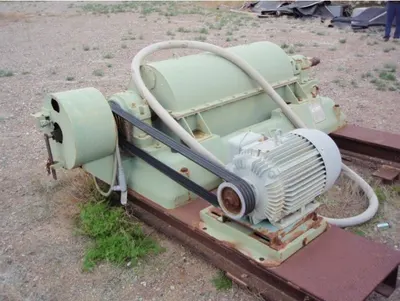

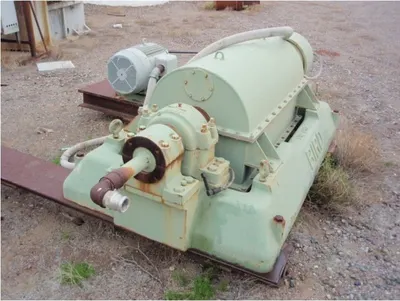

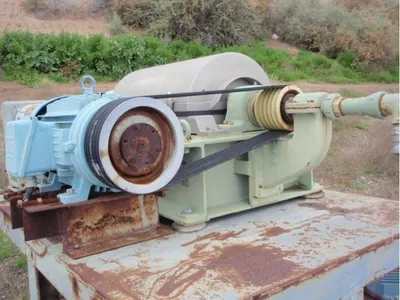

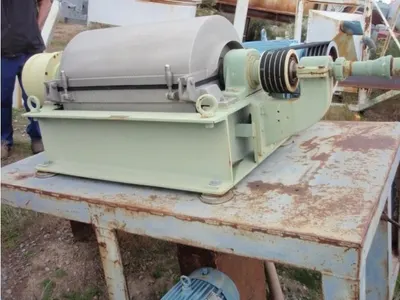

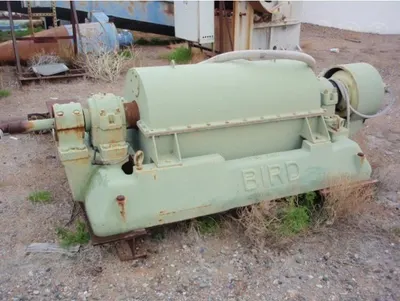

  6. Bird Centrifuge Decanter
    1. 18 inches x 42 inches bowl
    2. Stainless steel construction
    3. Complete with 30 hp, 230/460, 755 rpm motor
    4. Maximum rpm 2400
    5. Last used in minerals application

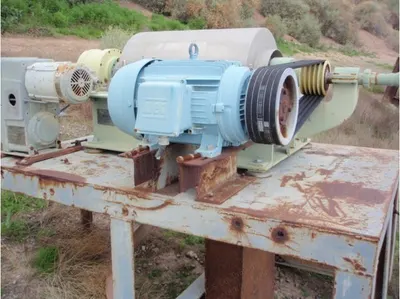

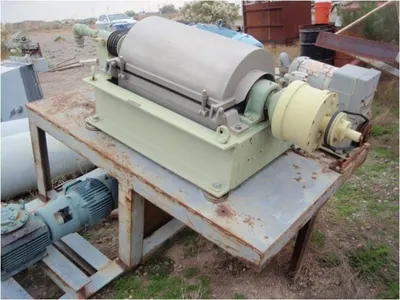

  7. Alfa-Laval Centrifuge Decanter
    1. Model: NX310 B31/4187/1
    2. Complete with 20 hp, 230/460 volts, 1765 rpm TEFC motor
    3. Vari-speed back drive
    4. Internal drum diameter 353 mm
    5. Maximum sludge density 3.4 kilograms/dm3
    6. Maximum speed 3250 rpm
    7. Reconditioned and used very little thereafter

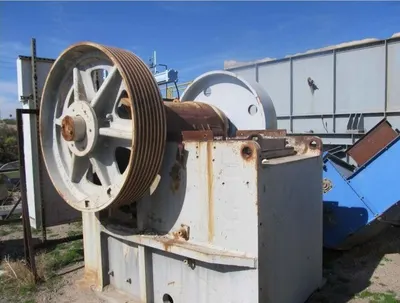

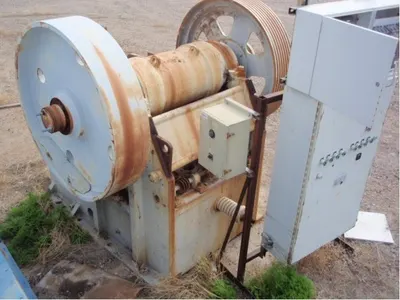

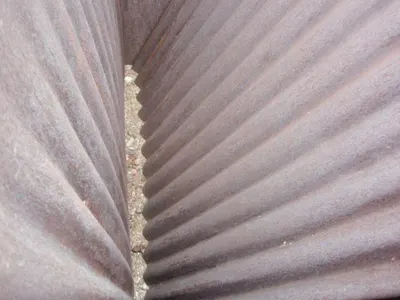

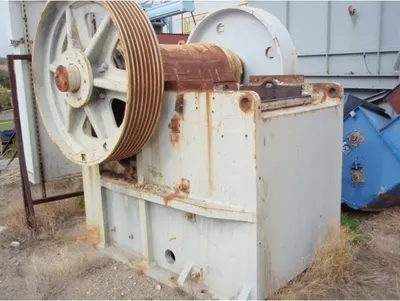

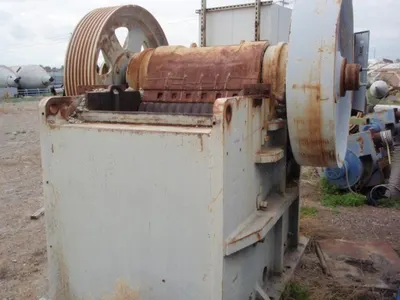

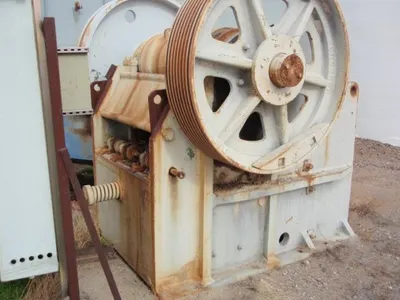

  8. Cedarapids Jaw Crusher
    1. 25 inches x 40 inches
    2. Single toggle design
    3. Complete with 125 hp, 230/460 volts motor through belt drive
    4. Bearings and jaws appear to be in good condition
    5. Last used to crush soft mica ore
  9. Tank – 1500 Gallon
    1. 1500 gallon capacity
    2. Fiberglass construction
    3. Tank measures 6 feet diameter x 7 feet tall
    4. Includes stainless steel agitator and baffles
    5. Features open top and flat bottom
    6. Multiple flange inlets and outlets

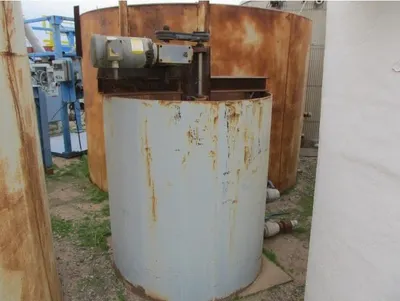

  10. Tank – 425 Gallon
    1. 425 gallon capacity
    2. Carbon steel construction
    3. Measures 4 feet diameter x 4 feet 6 inches tall
    4. Includes stainless steel 3 hp agitator
    5. Open top and flat bottom

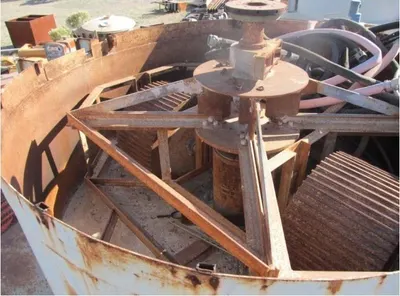

  11. Tank – 3000 Gallon
    1. 3000 gallon capacity
    2. Carbon steel construction
    3. Measures 8 feet diameter x 8 feet 2 inches tall
    4. 7.5 hp bridge agitator
    5. Includes open top and flat bottom

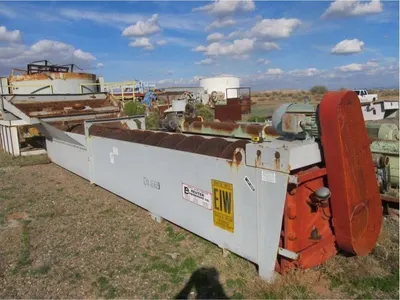

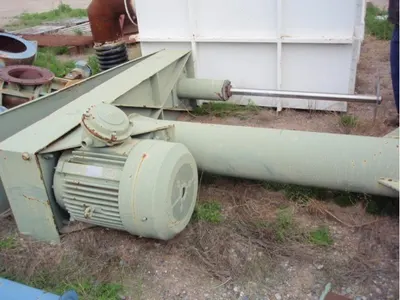

  12. Eagle Screw Classifier
    1. Approximately 24 inches diameter x 24 feet long
    2. Mild steel
    3. Complete with 15 hp motor through chain and sprocket drive
    4. Flared tank
    5. Good condition

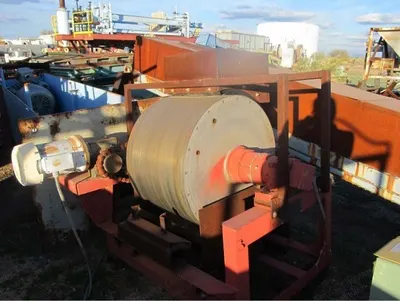

  13. Jeffrey Magnetic Drum Separator
    1. Type: S421
    2. 21 inches wide x 32 inches face drum
    3. Electrics are 250 volts DC at 12 amps
  14. Tank – 4850 Gallon
    1. 4850 gallon capacity
    2. 8 feet 6 inches diameter x 9 feet 6 inches tall
    3. Carbon steel construction
    4. Insulated
    5. Flat top with flat bottom
    6. Features side bottom manhole and galvanized sheet metal outer layer
  15. Tank – 5900 Gallon
    1. 5900 gallon capacity
    2. Carbon steel construction
    3. Tank measures 10 feet diameter x 10 feet tall
    4. Gray paint has mostly faded
    5. Features open top and flat bottom
  16. Tank – 4000 Gallon
    1. 4000 gallon capacity
    2. Carbon steel construction
    3. Measures 10 feet diameter x 7 feet tall
    4. Features open top and flat bottom
    5. Includes baffles but no agitator

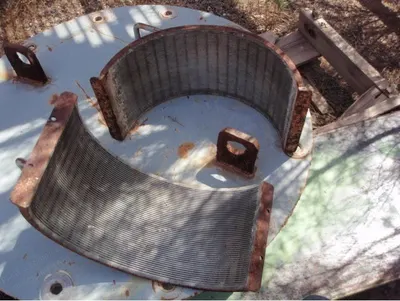

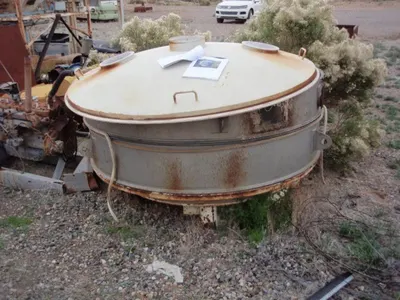

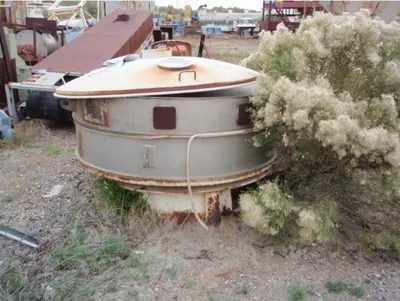

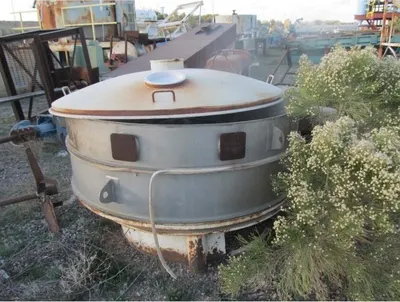

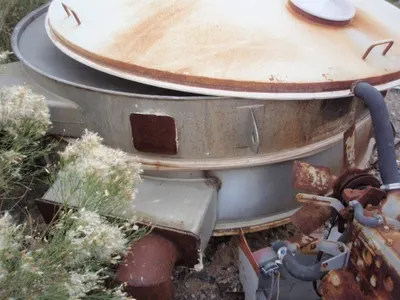

  17. Sweco Screen
    1. 72 inches diameter
    2. Double deck
    3. Stainless steel deck and spacers
    4. Mild steel base with eccentric
    5. Parts only machine
  18. Midwestern Screen
    1. Model: UVS3X6
    2. 3 feet wide x 6 feet long
    3. Single deck
    4. Complete with 2 hp, 220/440 volt motor

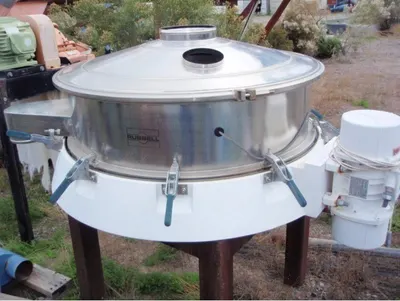

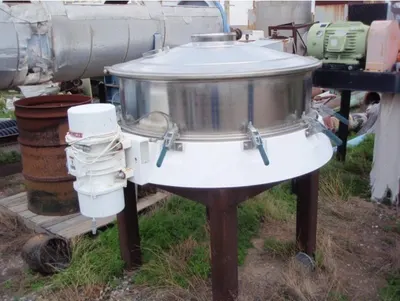

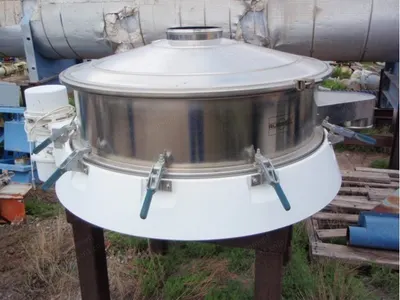

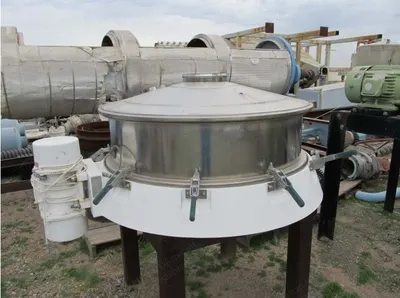

  19. Russell Finex Sweco Screen
    1. Model: 27120
    2. 48 inches diameter
    3. Single deck
    4. Polished stainless steel
    5. Complete with 1.25 hp 230/460 volts vibratory motor
  20. Advanced Detection System Metal Detector
    1. 36 inches wide x 12 inches high opening
    2. No conveyor

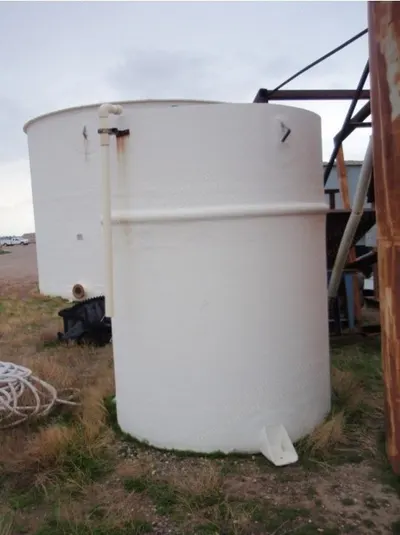

  21. Palmer Fiberglass Tanks (3)
    1. Year: 1999
    2. 40,750 gallons each
    3. 21 feet 6 inches ID x 15 feet tall
    4. 8 inches discharge

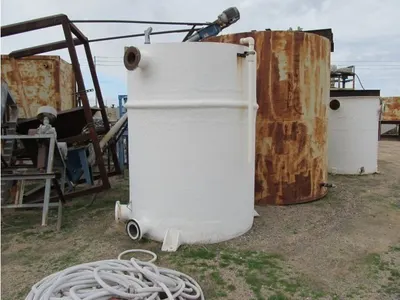

  22. Tank – 1200 Gallon
    1. 1200 gallons capacity
    2. Fiberglass construction
    3. Measures 5 feet diameter x 8 feet tall
    4. Flat top with flat bottom
    5. Features multiple flanged inlets and outlets
    6. Color white with horizontal structural line

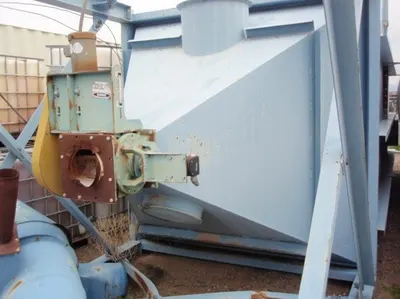

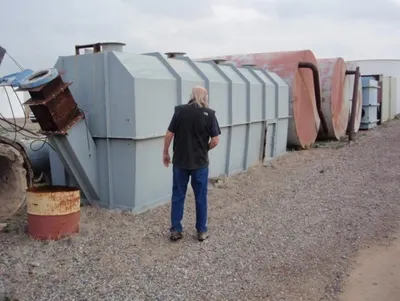

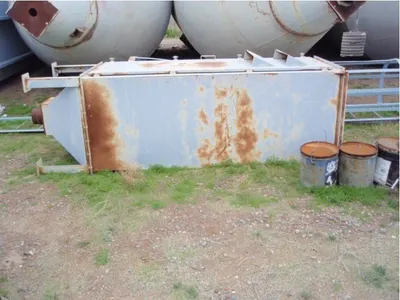

  23. Flex-Keen Dust Collector Baghouse
    1. Approximately 2500 square feet cloth area
    2. 15,000 cfm air throughput
    3. Chamber dimensions are 90 inches x 96 inches x 20 feet high
    4. Plus pyramid cone bottom
    5. Last used in high temperature application for fluid bed dryer
  24. Griffin Environmental Company Baghouse
    1. Model: 36KS
    2. Approximately 300 square feet
    3. 1000 cfm
    4. 36 bags
    5. 8 feet high
    6. Overall dimensions: 36 inches x 36 inches x 14 feet high including cone bottom
  25. CP Environmental Filters Inc Dust Collector
    1. Model: 84-NF-100-C
    2. Approximately 1000 square feet
    3. 7500 cfm
    4. Chamber measures 80 inches x 80 inches x 10 feet high with 5 feet deep cone bottom

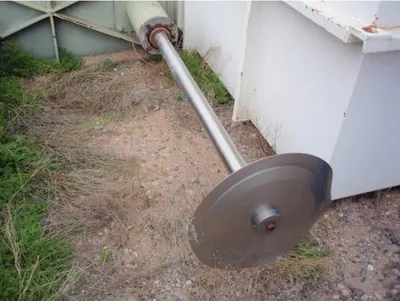

  26. Hockmeyer Dispersion Mixer
    1. Complete with 0 hp, 1770 rpm, 440 volt motor
    2. Hydraulic raise
    3. Shaft measures 2.5 inches diameter x 48 inches long
    4. Disc type blade
    5. Stainless steel contact
    6. No tank

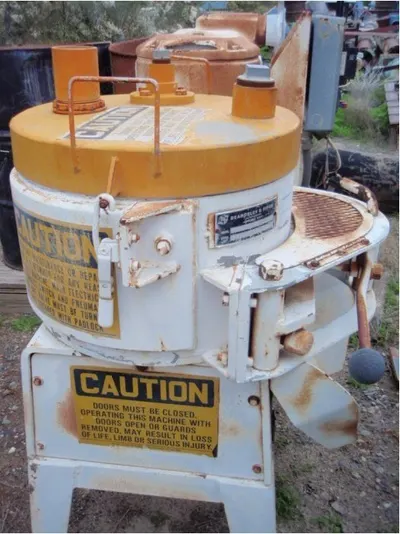

  27. Beardsley & Piper Mix-Muller
    1. Model: Special Lab Speed Muller
    2. Approximately 12 inches diameter grinding chamber
    3. Complete with 3 hp motor through Reeves Vari-Drive
    4. Good condition

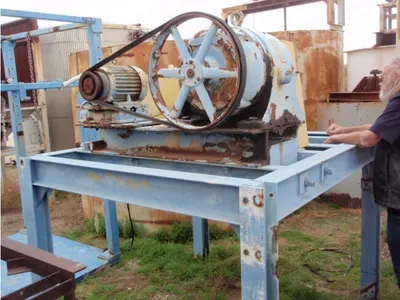

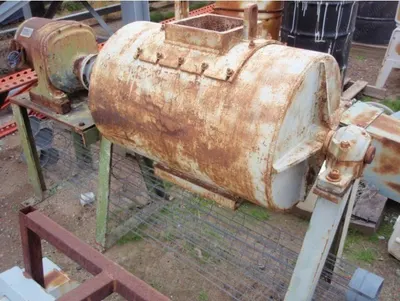

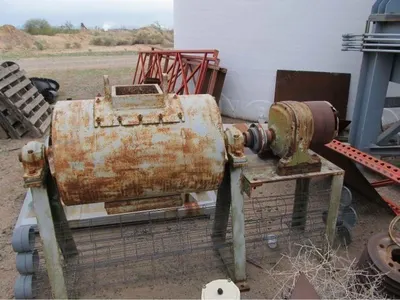

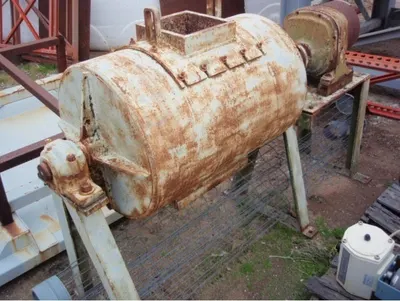

  28. Ball Mill
    1. Batch type
    2. 30 inches diameter x 24 inches long grinding chamber, ceramic lined
    3. Complete with 2 hp motor through gear reducer
    4. On stand
    5. Condition of liners are good
    6. There may not be a running door

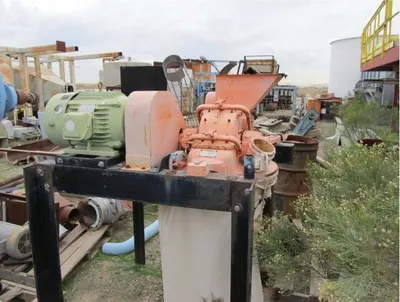

  29. Pulva Corp Hammer Mill
    1. Size B
    2. Complete with 20 hp, 220/440 volt motor
    3. On stands
    4. Good condition

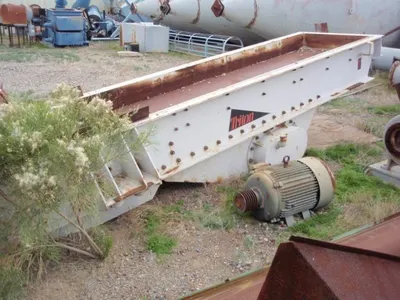

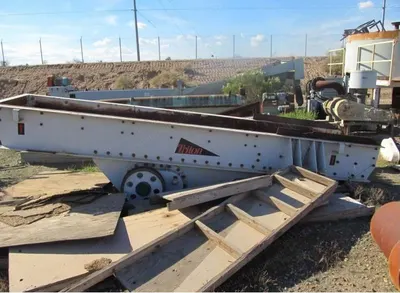

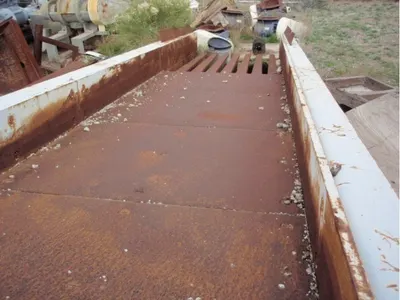

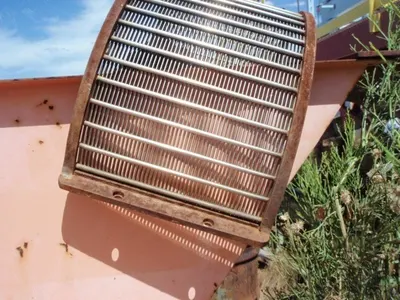

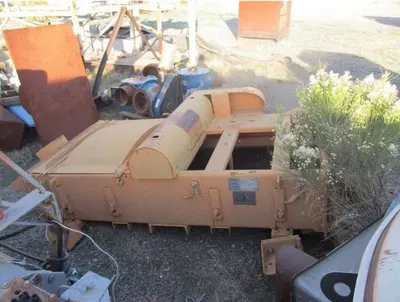

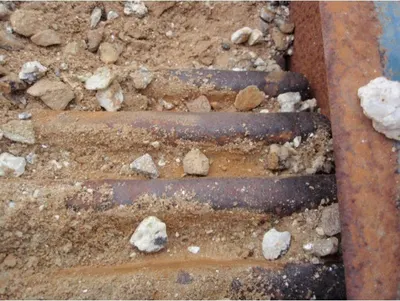

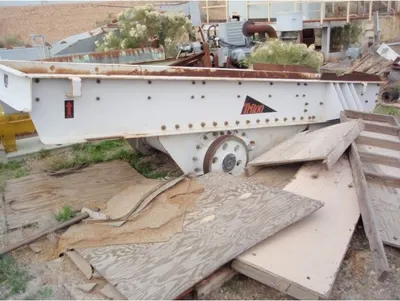

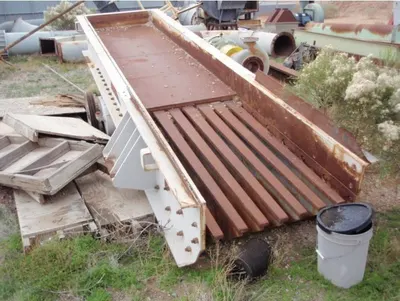

  30. Triton Vibrating Grizzly Feeder
    1. Model: TF-4016
    2. 40 inches wide x 15 feet long pan
    3. Plus 5 feet grizzly section
    4. Requires 25 hp motor

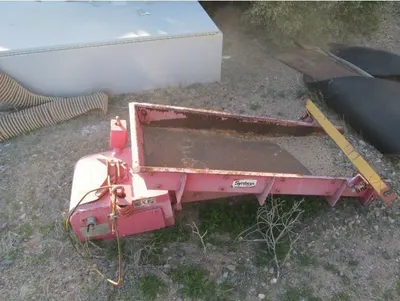

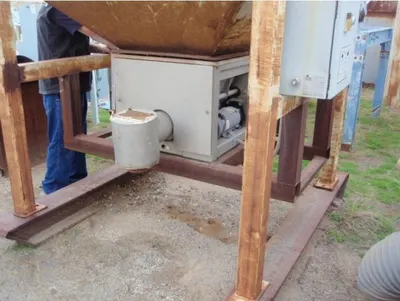

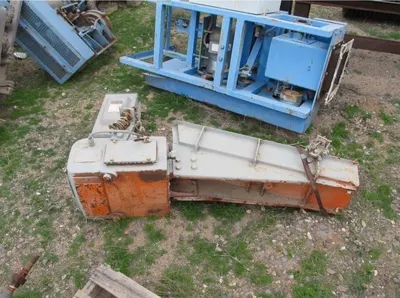

  31. Syntron Vibratory Feeder
    1. Model: FH-220-DT
    2. 2 feet wide x 3 feet long
    3. Vibratory motor rated at 460 volts, 60 Hz, 5 amps
  32. Syntron Vibratory Feeder
    1. Model: F-22-C-DT
    2. 1 foot wide x 3 feet long
    3. Rated at 115 volts, 60 Hz, 10 amps

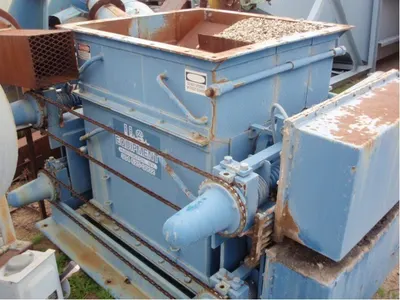

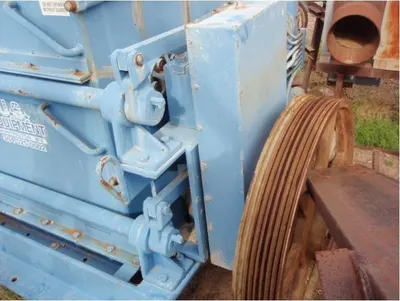

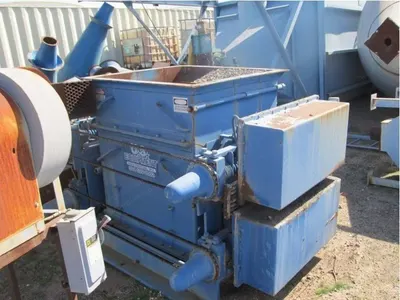

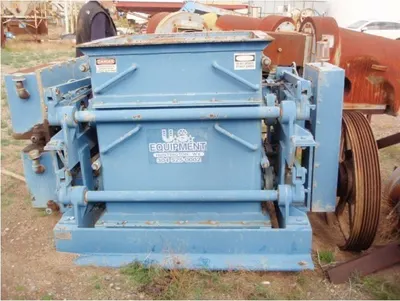

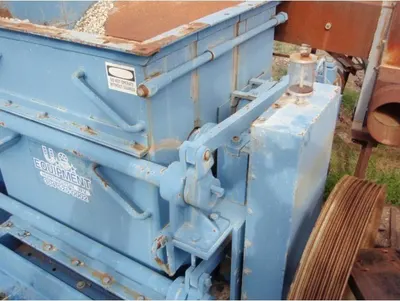

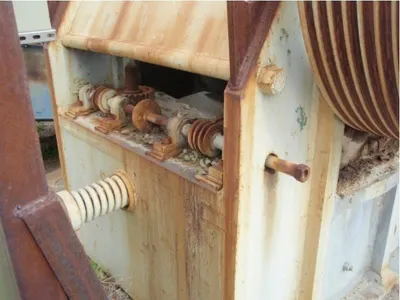

  33. US Equipment Distributors Inc Crusher Roll
    1. Model: 36-DA
    2. 4 roll double roll crusher
    3. Each of the 4 rolls measures 12 inches x 36 inches with corrugation of different sizes
    4. Rolls appear to be in good condition
    5. Complete with 50 hp, 220/440 volt motor

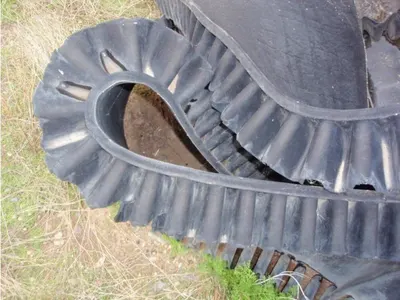

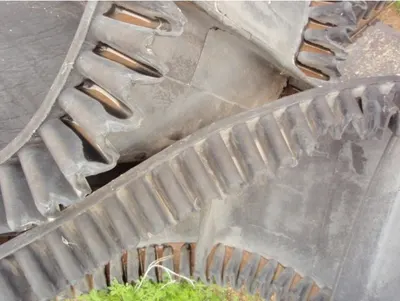

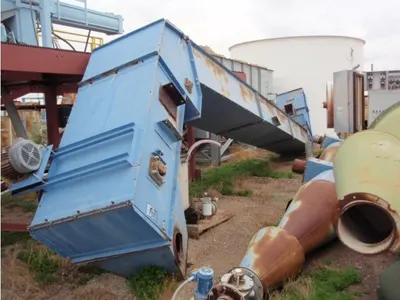

  34. Cambelt Elevator Conveyor
    1. Model: CWR-2430.6
    2. Year: 1999
    3. 6 feet horizontal section
    4. 30 feet high vertical section
    5. 6 feet high horizontal section
    6. Complete with 7.5 hp
