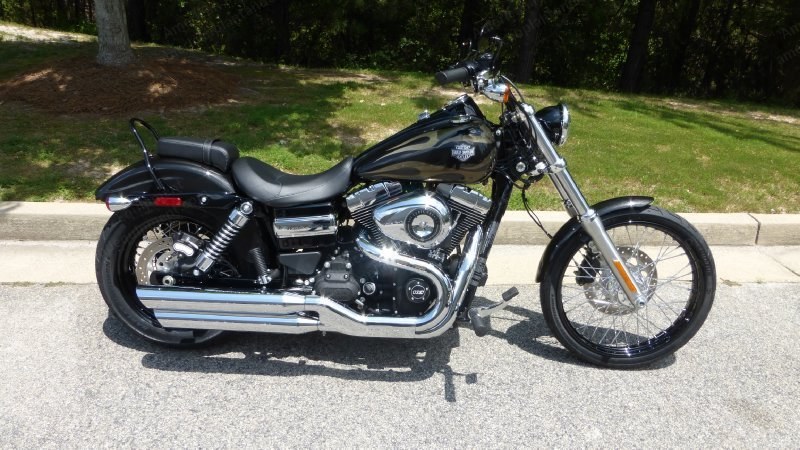

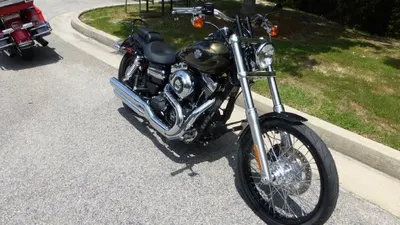

Harley-Davidson, FXDWG Dyna Wide Glide, 2015, 1690cc Twin Cam 103 Engine, 6-Speed, Black Quartz Flame (New)

Harley-Davidson, FXDWG Dyna Wide Glide, 2015, 1690cc Twin Cam 103 Engine, 6-Speed, Black Quartz Flame

Description

  1. Overview
    1. 2015 Harley-Davidson FXDWG Dyna Wide Glide in Black Quartz Flame
    2. Miles: 5
    3. Status: New
    4. Engine: Twin Cam 103 V-twin, 1690 cc (103.1 ci)
    5. Anti-lock braking system (ABS) standard
    6. Dark scheme

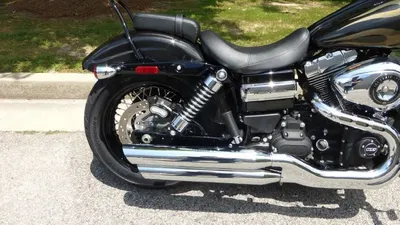

    7. Tommy Gun 2-1-2 collector exhaust with dual mufflers

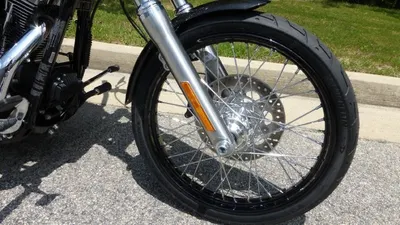

    8. 21-inch front wheel
    9. Wide aluminum triple clamps
    10. Low solo seat and unattached passenger pillion

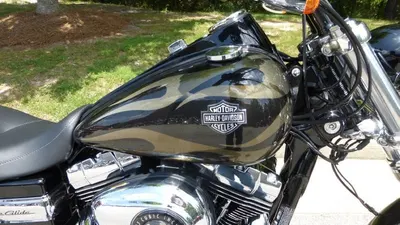

    11. 4.7-gallon fuel tank
    12. Approximately 42 miles per gallon combined

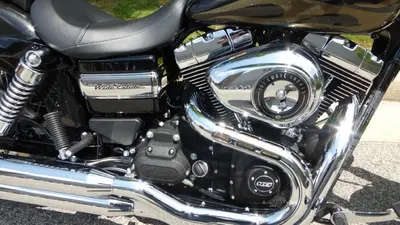

  2. Engine
    1. Engine brand name: Twin Cam 103
    2. Engine type: V twin
    3. Engine stroke: 4-stroke
    4. Engine size: 1690 cc (103.1 ci)
    5. Engine displacement to weight: 2.6 cc
    6. Bore: 3.87 in (98.3 mm)
    7. Stroke: 4.37 in (111 mm)
    8. Compression ratio: 9.6:1
    9. Valve configuration: OHV
    10. Valves: 4 (2 per cylinder)
    11. Cooling system: Air
    12. Carburetion type: Fuel injected
    13. Fuel injector
    14. Fuel type: Gas
    15. Fuel requirements: Premium
    16. Starter: Electric
    17. Torque: 98.8 ft-lbs (134 Nm) at 3500 rpm
    18. US miles per gallon (combined): 42
  3. Drive Train
    1. Number of speeds: 6
    2. Transmission: Manual
    3. Primary drive (engine/transmission): Chain
    4. Primary drive (rear wheel): Belt
  4. Chassis & Suspension
    1. Frame: Steel
    2. Front suspension type: Telescopic fork
    3. Front suspension size: 1.9 in (49 mm)
    4. Rear suspension type: Twin sided swing arm
    5. Rear suspension material: Steel
    6. Number of rear shock absorbers: 2
    7. Rear adjustable rebound damping
    8. Rear adjustable shock/spring pre-load
  5. Brakes
    1. ABS brakes
    2. Front brake: Hydraulic disc
    3. Rear brake: Hydraulic disc
  6. Wheels & Tires
    1. Wheels composition: Steel
    2. Front tire (full spec): Michelin Scorcher 80/90 R21 54H
    3. Front tire width: 80
    4. Front tire aspect ratio: 90
    5. Front tire inches: 21
    6. Front tire speed rating: H
    7. Rear tire (full spec): Michelin Scorcher 180/60 R17 75V
    8. Rear tire width: 180
    9. Rear tire aspect ratio: 60
    10. Rear tire inches: 17
  7. Dimensions & Capacities
    1. Length: 96 in (2446 mm)
    2. Wheelbase: 67.5 in (1714.5 mm)
    3. Ground clearance: 3.9 in (99.1 mm)
    4. Seat height: 26 in
    5. Fuel capacity: 4.7 gal (17 L)
    6. Dry weight: 650 lbs (294.8 kg)
    7. Wet weight: 683 lbs

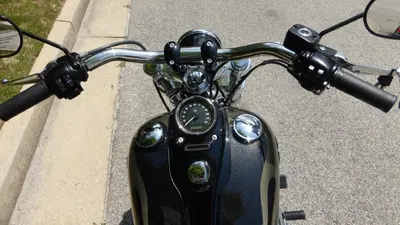

  8. Comfort & Instrumentation
    1. Digital instrumentation
    2. Speedometer
    3. Tachometer
    4. Tripmeter
  9. Safety
    1. Headlight
    2. Fuel level warning
    3. Rearview mirrors
  10. Other Information
    1. Belt guard
    2. Side cover
