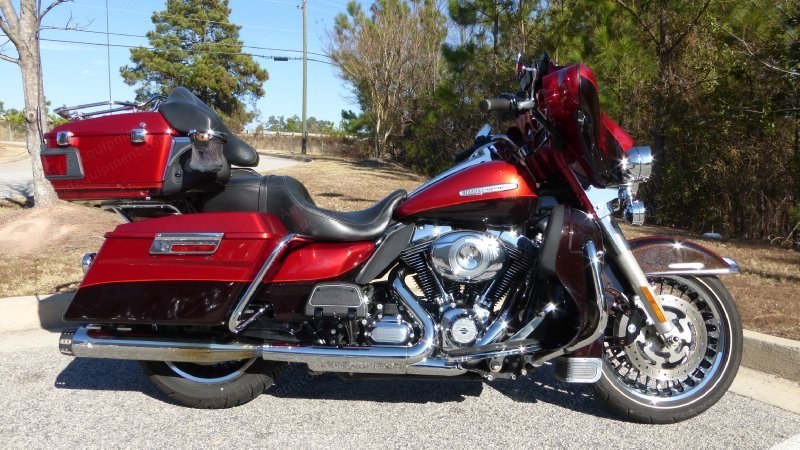

Harley-Davidson, Electra Glide Ultra Limited, 2012, 1690cc, 25842 Miles, Ember Red and Merlot

Harley-Davidson, Electra Glide Ultra Limited, 2012, 1690cc, 25842 Miles, Ember Red and Merlot

Description

  1. Overview
    1. 2012 Harley-Davidson Electra Glide Ultra Limited touring model
    2. Color: Ember Red and Merlot
    3. Miles: 25,842
    4. Status: Used

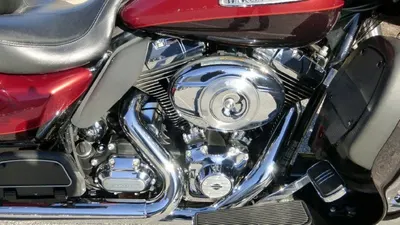

  2. Engine
    1. Engine brand name: Twin Cam 103
    2. Engine type: V-twin
    3. Engine stroke: 4-stroke
    4. Engine size: 1690 cc (103 ci)
    5. Engine displacement to weight: 1.97 cc
    6. Bore: 3.88 in (98.5 mm)
    7. Stroke: 4.38 in (111.3 mm)
    8. Torque: 100 ft-lbs (135.6 Nm) at 3250 rpm
    9. Valve configuration: OHV
    10. Valves: 4 (2 per cylinder)
    11. Cylinders: 2
    12. Cooling system: Air
    13. Carburetion type: Fuel injected
    14. Fuel type: Gas
    15. Fuel requirements: Premium
    16. Fuel capacity: 6 gal (22 liters)
    17. Fuel injector
    18. Engine immobilizer
    19. Starter: Electric
    20. US miles per gallon (combined): 42
  3. Drivetrain
    1. Transmission: Manual
    2. Number of speeds: 6
    3. Heel toe shifter
    4. Primary drive (engine/transmission): Chain
    5. Primary drive (rear wheel): Belt
  4. Brakes
    1. ABS brakes
    2. Brake brand name: Brembo
    3. Front brake: Dual hydraulic disc
    4. Front brake diameter: 11.5 in (292.1 mm)
    5. Linked brake system front to rear
    6. Rear brake: Hydraulic disc
    7. Rear brake diameter: 11.5 in (292.1 mm)
  5. Chassis and Suspension
    1. Frame: Steel
    2. Front suspension type: Telescopic fork
    3. Front adjustable rebound damping
    4. Rear suspension type: Twin sided swing arm
    5. Rear suspension material: Steel
    6. Air adjustable rear suspension
    7. Rear adjustable rebound damping
    8. Rear adjustable shock/spring pre-load
    9. Number rear shock absorbers: 2
  6. Comfort and Convenience
    1. CB radio
    2. Cruise control
    3. Digital instrumentation
    4. Oil pressure gauge
    5. Trip odometer
    6. Speedometer
    7. Tachometer
  7. Accessories
    1. Screaming Eagle package
    2. Chrome covers/accessories
    3. Custom pipes
  8. Other Information
    1. Chassis protectors
    2. Chromed wheels
    3. Engine case guard
    4. Hard side cases
    5. Helmet storage
    6. Lockable storage
    7. Lower fairing
    8. Saddle bag guard
    9. Side cover
    10. Tool bag mount
    11. Upper fairing
  9. Safety
    1. Headlight
    2. Fuel level warning
    3. Rearview mirrors
  10. Specifications
    1. Dry weight: 857 lbs (388.7 kg)
    2. Wet weight: 901 lbs (408.7 kg)
    3. Length: 98 in (2504.4 mm)
    4. Wheelbase: 63.5 in (1612.9 mm)
    5. Ground clearance: 5.1 in (129.5 mm)
    6. Seat height: 27 in
    7. Front tire (full spec): Dunlop 130/80 R17 65H
    8. Front tire width: 130
    9. Front tire aspect ratio: 80
    10. Front tire (inches): 17
    11. Rear tire (full spec): Dunlop 180/65 R16 81H
    12. Rear tire width: 180
    13. Rear tire aspect ratio: 65
    14. Rear tire speed rating: 81H
    15. Rear tire (inches): 16
    16. Wheels composition: Aluminum
