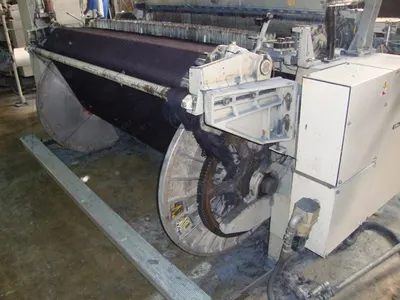

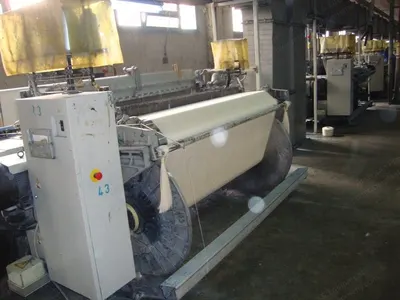

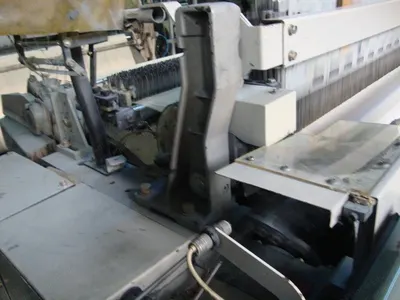

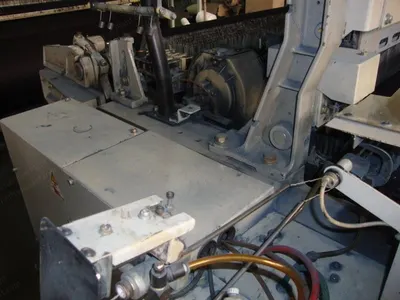

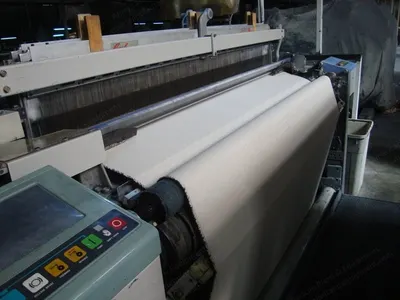

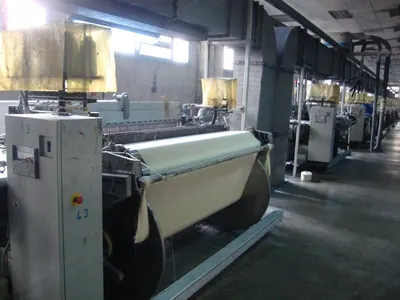

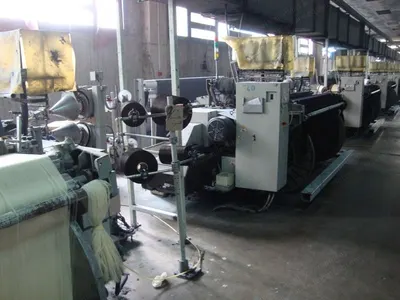

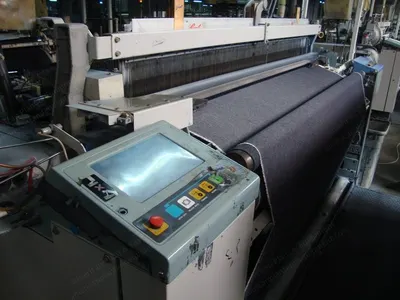

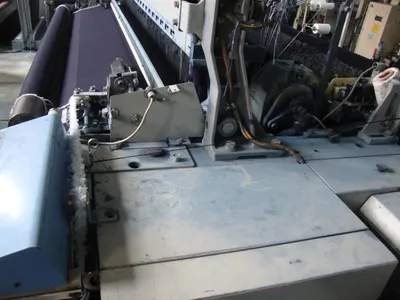

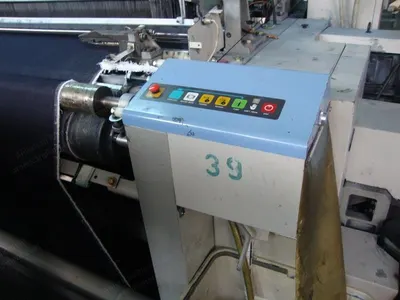

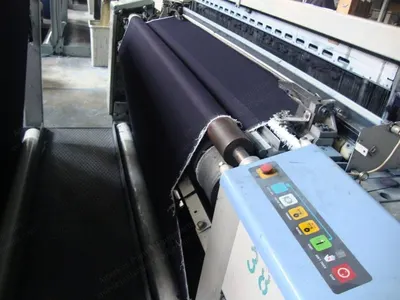

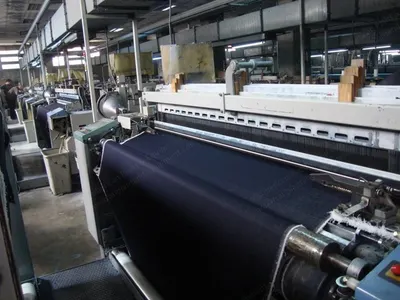

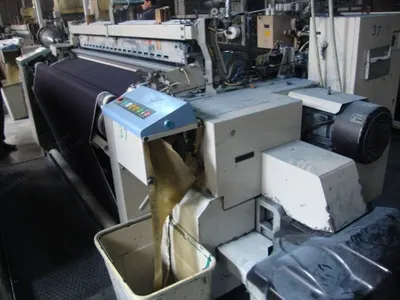

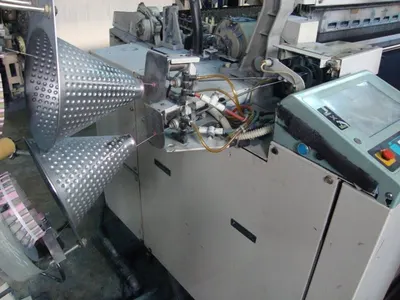

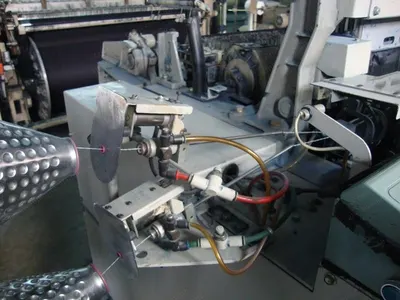

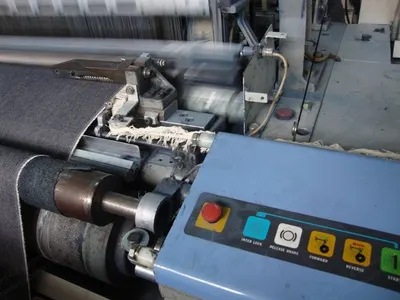

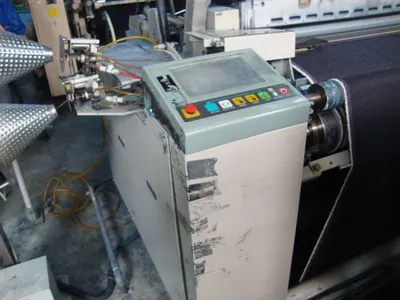

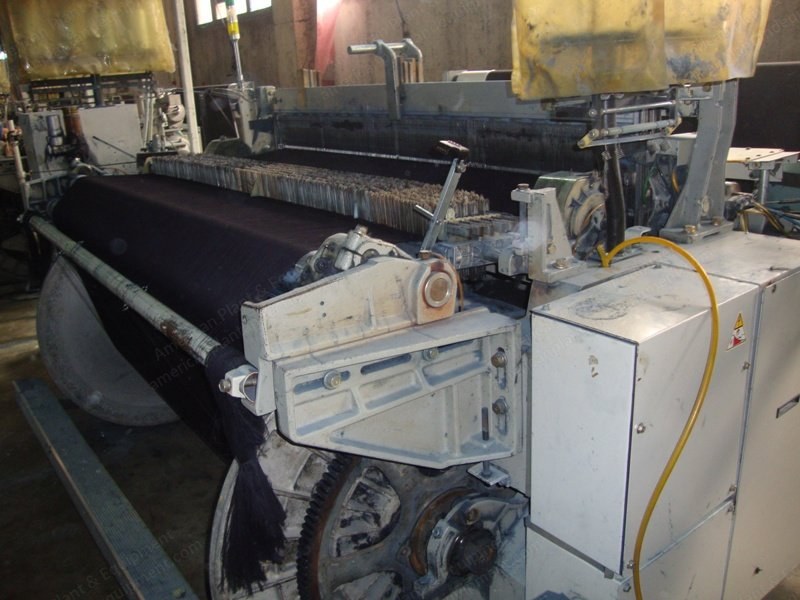

Toyota, L5300, 2002, Airjet Looms, 1900mm, 2 Colors & 4 Colors, Cam & Dobby

Toyota, L5300, 2002, Airjet Looms, 1900mm, 2 Colors & 4 Colors, Cam & Dobby

Description

  1. Overview

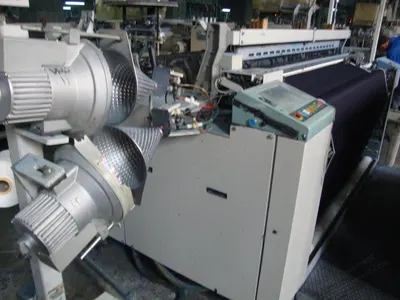

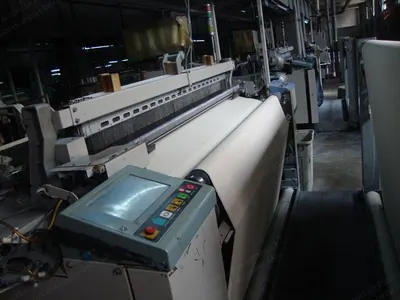

    1. Four sets Toyota type L5300 A2 airjet looms
    2. Four sets Toyota type L5300 W 190 N4 SP T2 (JAT 710) airjet looms
    3. Year: 2002
    4. Width: 1900 mm
  2. Specifications

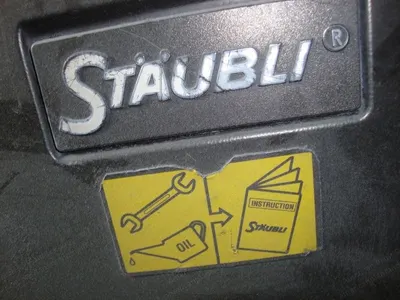

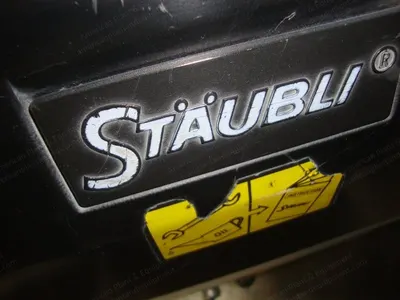

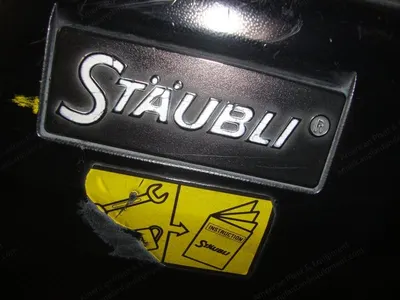

    1. Cam box motion Staubli type 1761A (on L5300 A2 sets)
    2. Weft insertion: 2 colors electronically controlled (on L5300 A2 sets)
    3. Automatic weft repair system (Tapo) and automatic shaft levelling device (on L5300 A2 sets)
    4. 4 colors (on L5300 W 190 N4 SP T2 sets)

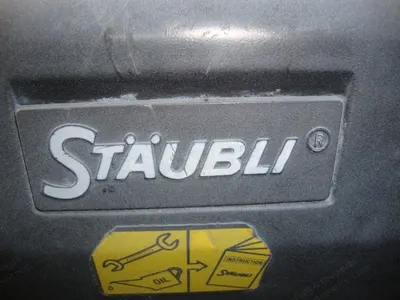

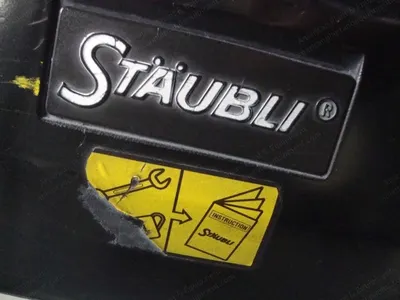

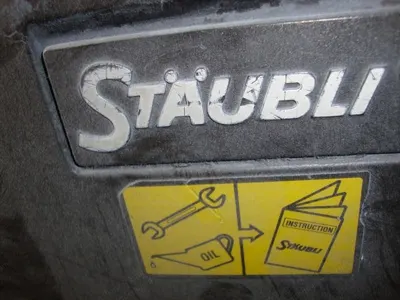

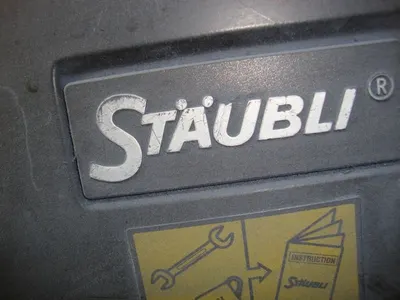

    5. Staubli electronic dobby 2861 (on L5300 W 190 N4 SP T2 sets)
    6. Complete levers (on L5300 W 190 N4 SP T2 sets)
  3. Equipment per loom
    1. 4 heald frames (on L5300 A2 sets)

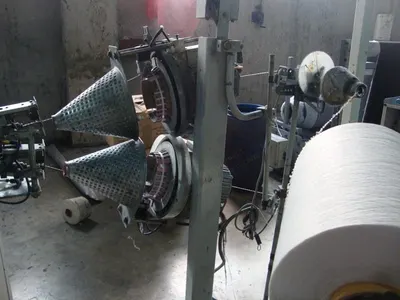

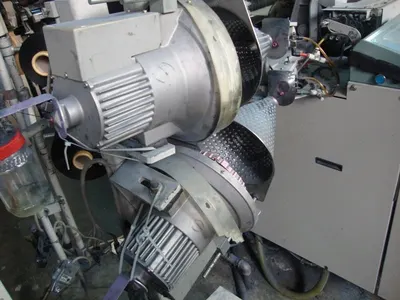

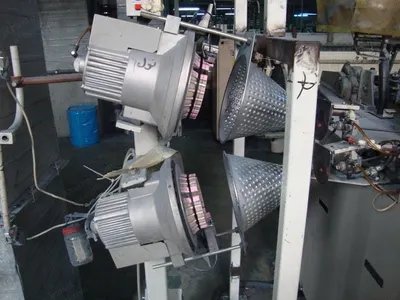

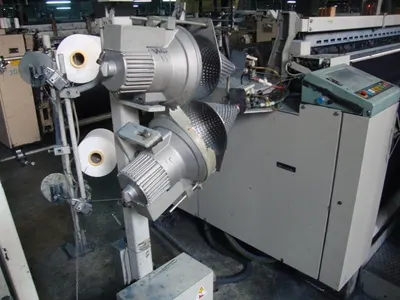

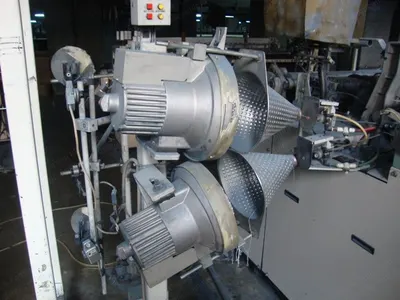

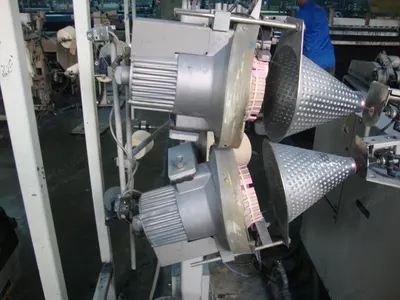

    2. 2 weft feeders Iro (on L5300 A2 sets)
    3. 2 half warp beams diameter 1000 mm (on L5300 A2 sets)
    4. 1 batching motion (on L5300 A2 sets)
    5. 8500 heddles (on L5300 A2 sets)
    6. 8500 droppers (on L5300 A2 sets)
    7. 8 heald frames (on L5300 W 190 N4 SP T2 sets)
    8. 4 weft feeders (on L5300 W 190 N4 SP T2 sets)
    9. 2 warp beams (on L5300 W 190 N4 SP T2 sets)
    10. 1.5 cloth roller (on L5300 W 190 N4 SP T2 sets)
  4. Additional equipment
    1. 1 overhead cleaner Electrojet for all 4 airjet looms
  5. Condition
    1. Machines are stopped
