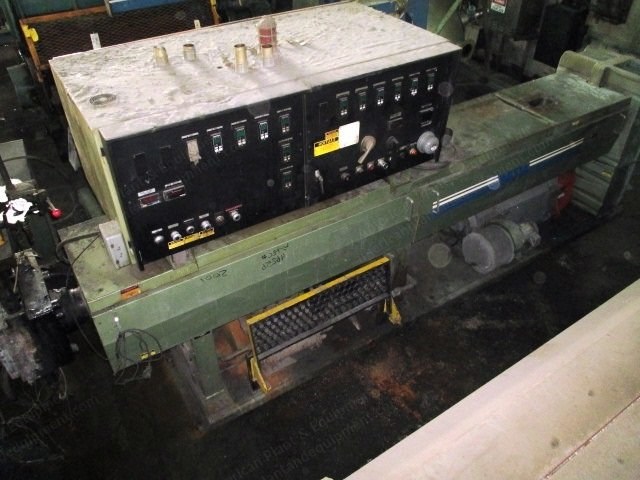

NRM/Beringer, 4.5 PMIIIRH/WC VTD, 1989, 4.5 Inch Single Screw Extruder, 32:1 L/D, 250 HP, WRP-12V Water Ring Pelletizer

NRM/Beringer, 4.5 PMIIIRH/WC VTD, 1989, 4.5 Inch Single Screw Extruder, 32:1 L/D, 250 HP, WRP-12V Water Ring Pelletizer

Description

  1. Overview
    1. Nrm/beringer water ring pelletizing line
    2. Year: 1989

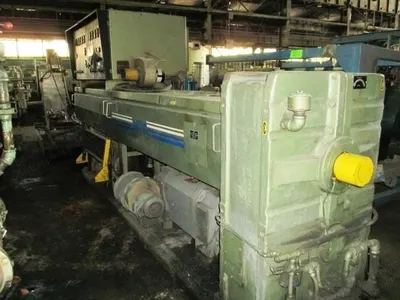

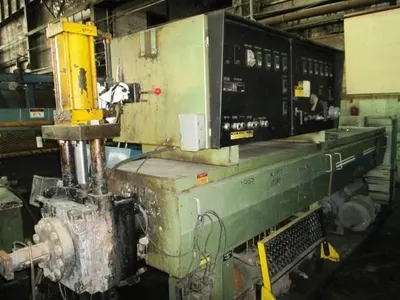

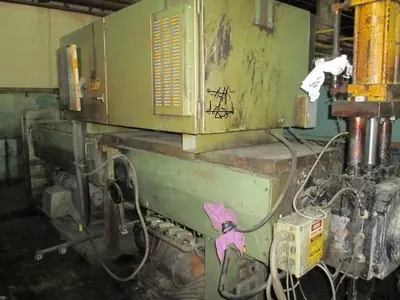

  2. Extruder
    1. 4.5 inches nrm single screw extruder
    2. Model: 4.5 pmiiirh/wc vtd
    3. 32:1 l/d
    4. Electrically heated
    5. Water cooled barrel
    6. With closed loop water circulation system with pump and reservoir
    7. Jacketed feed section with feed hopper
    8. Side vented barrel with vacuum pump

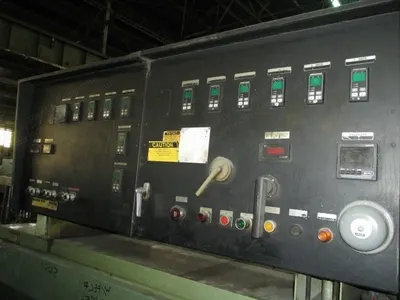

    9. Control panel with 6 barrel
    10. 1 sc body
    11. 4 die zones with eurotherm temperature controllers
    12. Approximately 250 dc motor with 250 hp scr motor controller thru 13.35:1 gearbox

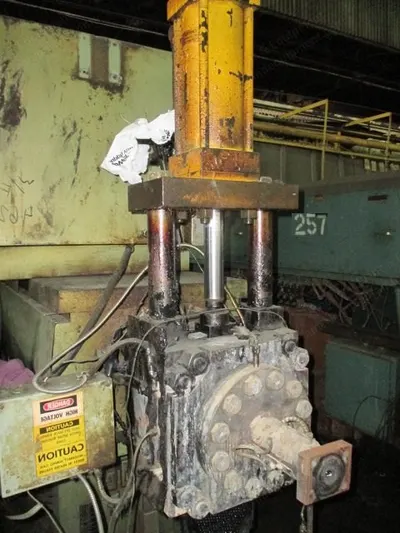

  3. Screen Changer
    1. 1 beringer hydraulic slide plate screen changer with dual breaker plates with hydraulic power pack
  4. Pelletizer
    1. 1 beringer water ring pelletizer
    2. Model: wrp-12v
    3. With cutting head
    4. Water ring
    5. Stainless steel water slide with circulation pump and heat exchanger
  5. Dryer
    1. Beringer spin dryer
    2. Driven by 2 hp
    3. 230/460 volt motor with beringer control panel
