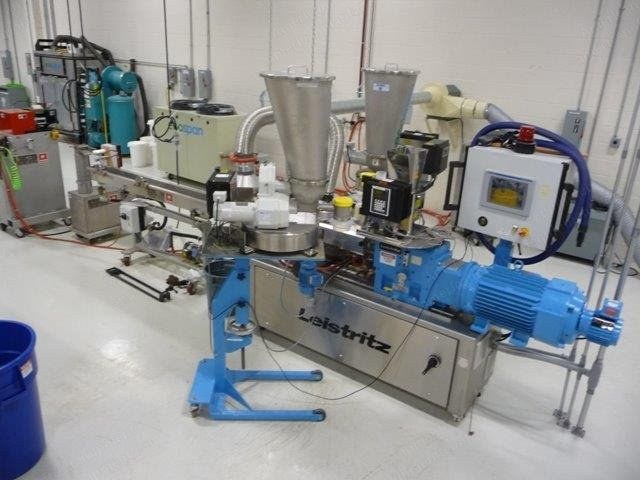

Leistritz, ZSE27 MAXX 40D, 2012, Twin Screw Pelletizing Line, 27mm, 50HP, 40/1 L/D

Leistritz, ZSE27 MAXX 40D, 2012, Twin Screw Pelletizing Line, 27mm, 50HP, 40/1 L/D

Description

  1. Overview
    1. Leistritz Tqin screw pelletizing line
    2. Year: 2012
    3. 27 mm
    4. Has total 234 hours used
  2. Extruder
    1. ZSE27 MAXX 40D co-rotating twin screw extruder with 50 hp AC motor and drive, 40/1 L/D
  3. Side Feeder
    1. Leistritz model: LSB24
    2. 24 mm side feeder
  4. Feeders
    1. 3 K-Tron gravimetric feeders
  5. Water System
    1. 8 ft stainless steel water trough with closed loop pump system
  6. Pelletizer
    1. 4 inch reduction engineering strand pelletizer with 20 knife rotor
  7. Vacuum System
    1. Vacuum system for extruder vents
  8. Chiller
    1. Thermal Care "Accu Chiller" 10 ton air cooled chiller
  9. Temperature Controller
    1. Application engineering temperature controller
  10. Controls
    1. Allen Bradley Compact Logic PLC and PV-HMI
  11. Condition
    1. Still installed as operated
