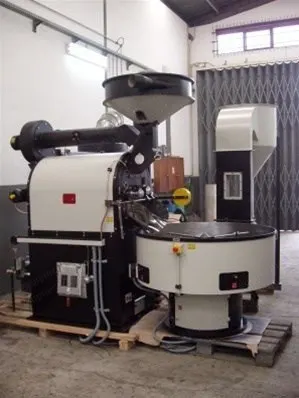

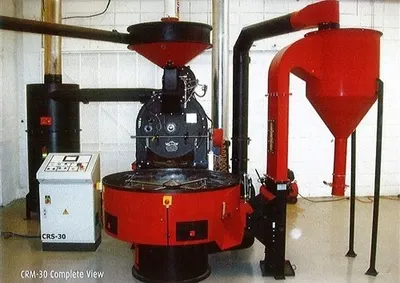

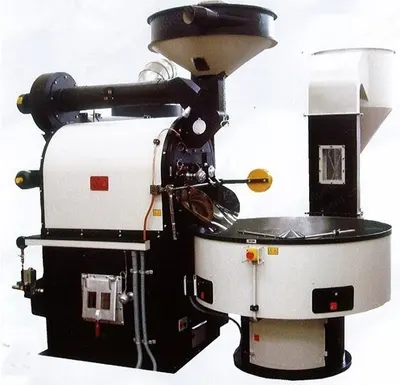

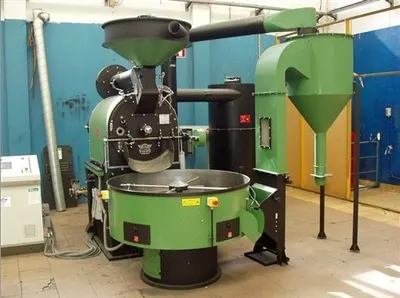

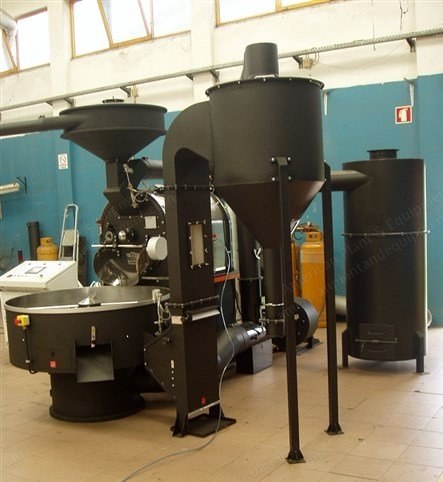

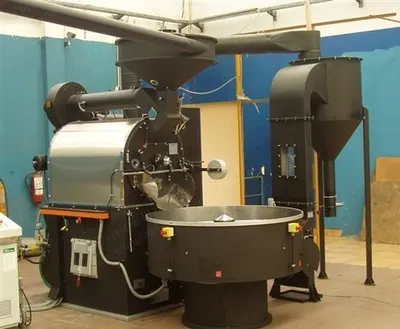

Joper, CRM-30, 30 kg Batch Capacity, Cast Iron Roaster, Riello Burner

Joper, CRM-30, 30 kg Batch Capacity, Cast Iron Roaster, Riello Burner

Description

  1. Overview
    1. Rugged cast iron roasting frame with solid construction that does not move under extended use.
    2. Double wall drum design directs heat through the center of the roasting chamber for true convection.
    3. Externally mounted, air-cooled bearings for long life and trouble-free control.
    4. Side panels or product flights have a longer curve for more product flow into the hot air stream, resulting in a slightly more rapid roast with even bean interior and expansion.
    5. Quieter operation than comparable machines on the market.
    6. Thermal insulation with high-quality fiber for low gas consumption.

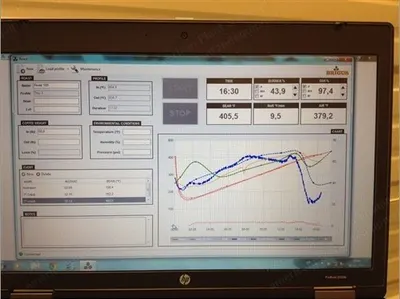

    7. Digital temperature control.

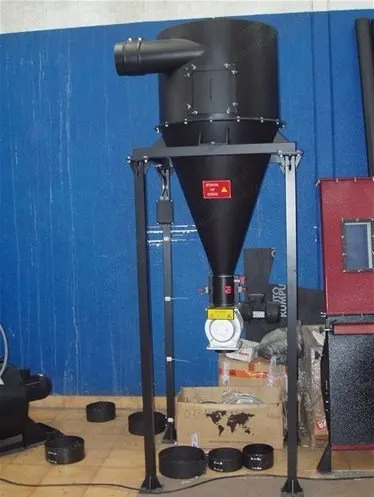

    8. Cyclone is separate.

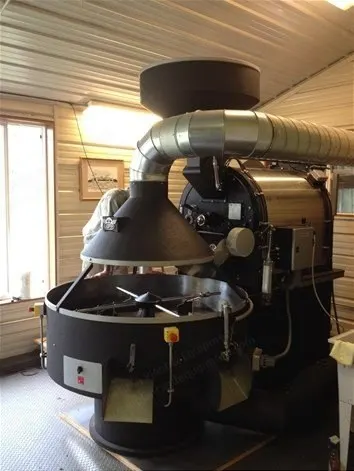

    9. Cooler is totally separate with the largest air collection area of any roaster made, allowing for total ambient cool coffee in less than three minutes.

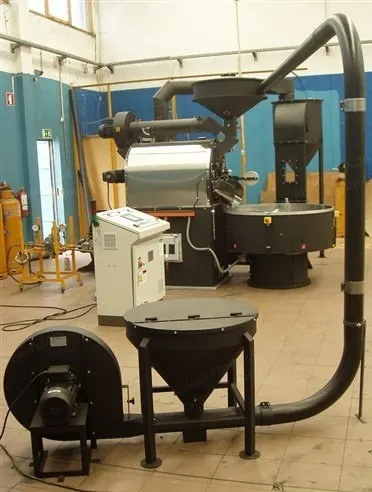

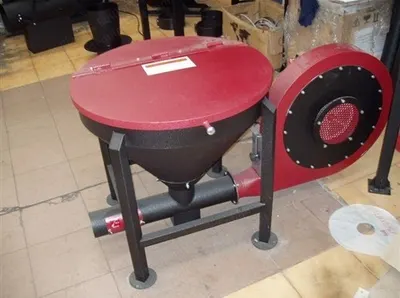

    10. Add to this package a loader or your choice of destoners and even your choice of control methods.
  2. Specifications
    1. Batch capacity: 30 kg / 66 lbs

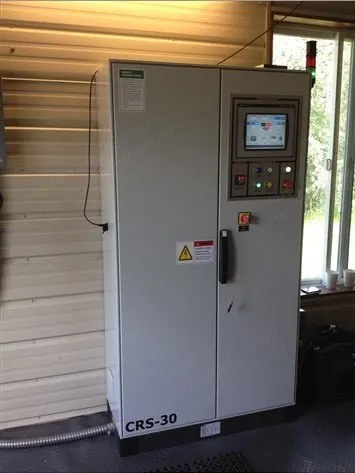

    2. Control design: Manual
    3. Capacity per hour: 120 kg / 265 lbs
    4. Roasting time: 12-18 min (4 batches an hour)
    5. Exhaust air treatment: Optional
    6. Cooling cyclone: Optional
    7. Pre-cooling with water in drum: Optional
    8. Cooling time: 3-4 min
    9. Type of cooling: Air ambient
    10. Safety device: Yes

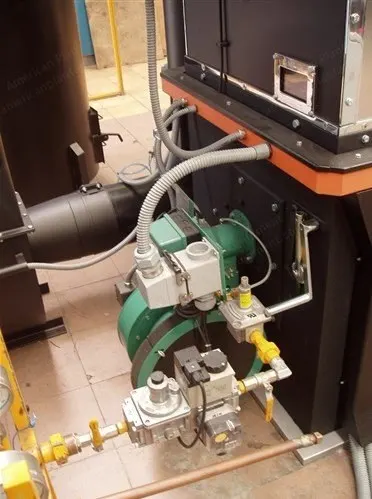

    11. Burner power: 110 kW / 375,000 Btu
    12. Burners manufacturer: Riello
    13. Operation type burner: BS2D-2 stage
    14. Fuel type: Propane / natural gas / diesel
    15. Side of operation: Left
    16. Power requirements: 20 amp
    17. Voltage / frequency / phases: 400+N-230 V / 50-60 Hz / 3 ph
    18. 9 amp, 3 phase 50/60 Hz preferred, your choice of 220/440 V - single phase available at special request
    19. Note on 3 phase: Not only is it less expensive to operate, but it runs more quietly than single phase whenever or wherever it is used.

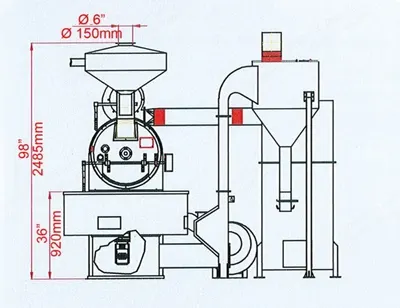

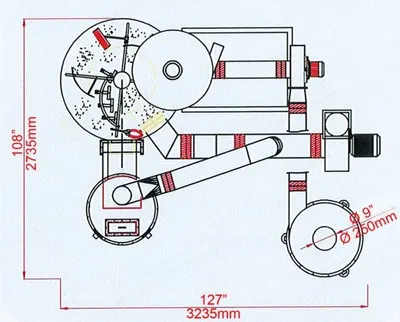

    20. Exhaust chimney (roaster cyclone) diameter: 250 mm / 9.8 in
    21. Exhaust chimney (cooler) diameter: 250 mm / 9.8 in
    22. Hopper roast chimney diameter: 150 mm / 5.9 in
    23. Roaster weight with cyclone: 1050 kg / 2310 lbs
    24. Cooler weight: 300 kg / 660 lbs
    25. Roaster fan motor: 1.5 Hp
    26. Cooler fan: 4 Hp
    27. Drum gearbox: 1 Hp
    28. Cooler gearbox: 0.75 Hp
    29. Built to UL295 standards.
