Karl Mayer, Nippon, Multi-Purpose Raschel Machines, 124" to 150" Width, 18E Gauge

Karl Mayer, Nippon, Multi-Purpose Raschel Machines, 124" to 150" Width, 18E Gauge

Description

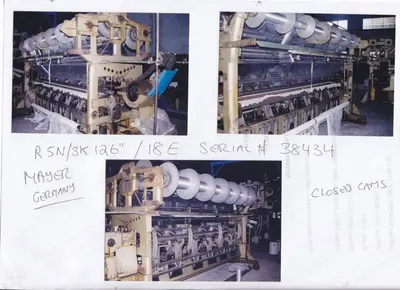

  1. Machine 1: Karl Mayer R5N
    1. Multi-purpose raschel machine
    2. Width: 124 inches
    3. 18e gauge (can be supplied in 6e or 9e gauge)
    4. Closed cams
    5. Oil bath with 6 ground bars (5 bars can make stitches)
    6. Stationary casted trick plate bar
    7. Needle bar using needle type r.s.37.100 or 39.75
    8. Sinker bar
    9. Latch wire
    10. N-type pattern drive (4 links per course)
    11. 3 pieces aluminum beam shafts, 152mm
    12. Side frames with 3 x 21 inches beam position and beam brakes
    13. Pattern chain extension stand
    14. Complete with all parts and accessories

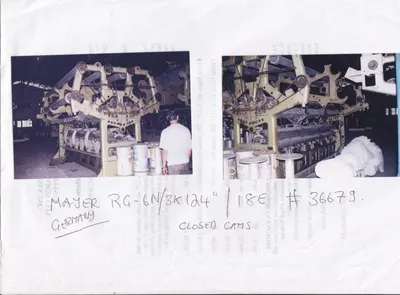

  2. Machine 2: Karl Mayer RG6N
    1. Multi-purpose raschel machine
    2. Width: 124 inches
    3. 18e gauge (can be supplied in 6e or 9e gauge)
    4. Closed cams
    5. Oil bath with 6 ground bars (5 bars can make stitches)
    6. Stationary casted trick plate bar
    7. Needle bar using needle type r.s.37.100 or 39.75
    8. Sinker bar
    9. Latch wire
    10. N-type pattern drive (4 links per course)
    11. 3 pieces aluminum beam shafts, 152mm
    12. Side frames with 5 x 21 inches beam position and beam brakes
    13. Pattern chain extension stand
    14. Complete with all parts and accessories

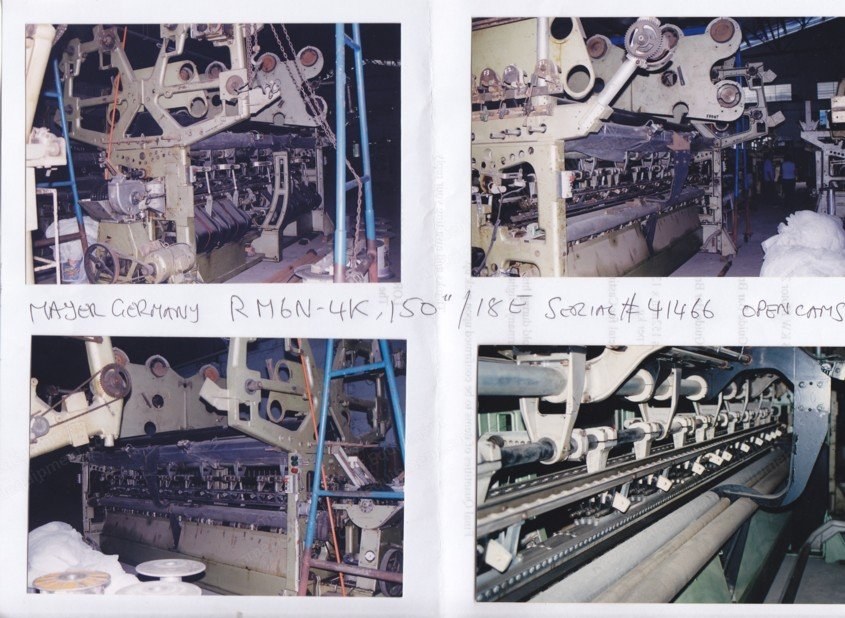

  3. Machine 3: Nippon Mayer RM6N 4K
    1. Multi-purpose raschel machine
    2. Width: 150 inches
    3. 18e gauge (can be supplied on 6e or 9e gauge)
    4. Open cams
    5. No oil bath with 5 ground bars (4 bars can make stitches)
    6. Stationary casted trick plate bar
    7. Needle bar using needle type r.s.37.100 or 39.75
    8. Sinker bar
    9. Latch wire
    10. N-type pattern drive (4 links per course)
    11. 4 sets articulated beam shafts (8 pieces)
    12. 70mm steel beam shafts with clamps and center bearings
    13. Center frame
    14. Side frames with 5 x 21 inches beam position and beam brakes
    15. Pattern chain extension stand
    16. Complete with all parts and accessories
