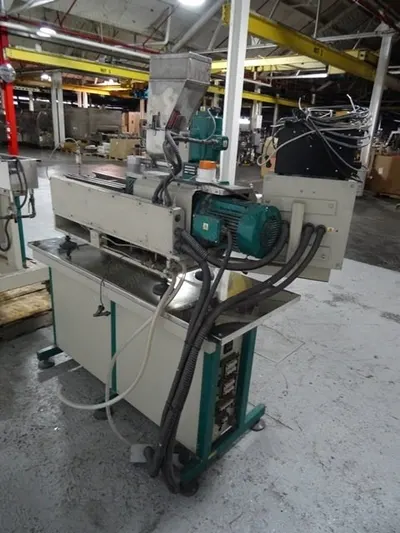

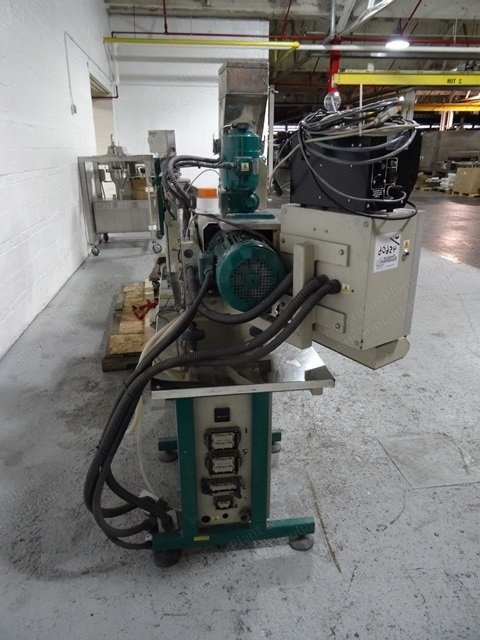

Prism, TSE 24TC, 1996, 24mm Twin Screw Extruder, 40:1 L/D, Varicut 24 Pelletizer

Prism, TSE 24TC, 1996, 24mm Twin Screw Extruder, 40:1 L/D, Varicut 24 Pelletizer

Description

  1. Overview
    1. One used Prism pelletizing line
    2. System new in 1996
  2. Extruder
    1. Prism parallel twin screw extruder, model TSE 24TC
    2. 24 mm co-rotating screws
    3. 40:1 l/d

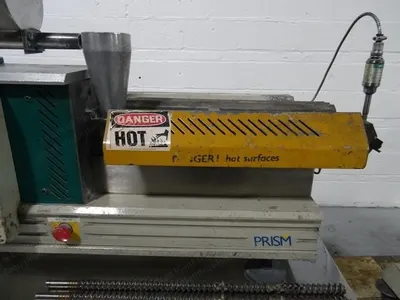

    4. Electrically heated, water cooled barrel
    5. Three top vents with two plugged
    6. Six barrel zones with on-board control panel
    7. 3.7 kw, 230 volt ac motor drive with VFD controller
    8. Two hold stand die
  3. Feeders

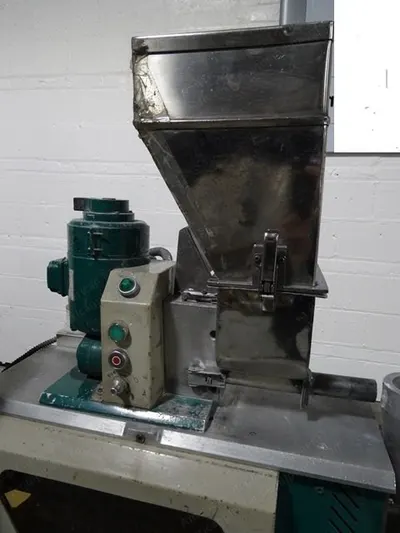

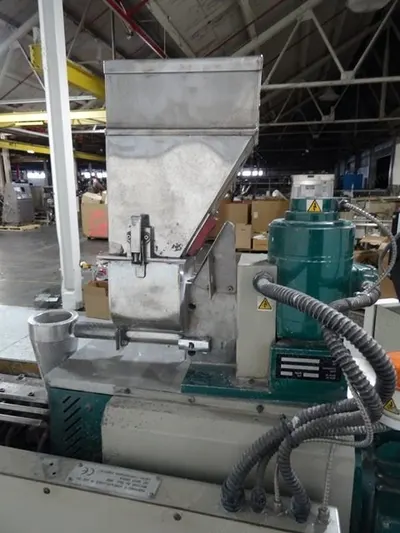

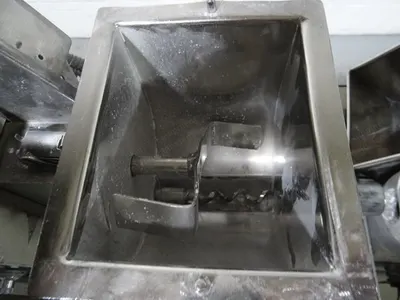

    1. Screw feeder with 0.26 kw motor drive with agitated hopper
    2. Maguire weigh scale feeder, model WSB-440R
    3. Three material hoppers
    4. One additive feeder with hopper with controller

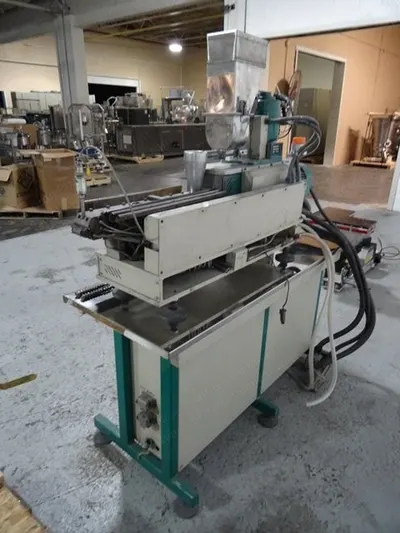

  4. Pelletizer
    1. Prism water bath pelletizer unit, model VARICUT 24
    2. Approximately 8 inches x 8 inches x 59 inches long stainless steel water bath
    3. 2.5 inches wide air wipe with blower
    4. 2 5/8 inches wide stand pelletizer with pull rolls
    5. Helical rotor
    6. 1.1 kw motor drive
