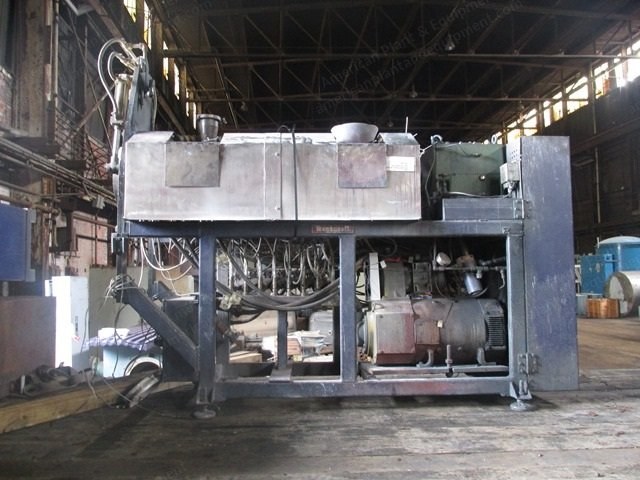

Berstorff, ZE40A HT, Twin Screw Strand Pelletizing Line, 40mm, 30:1 L/D, 50 HP

Berstorff, ZE40A HT, Twin Screw Strand Pelletizing Line, 40mm, 30:1 L/D, 50 HP

Description

  1. Overview
    1. Used 40 mm Berstorff twin screw strand pelletizing line
  2. Feeder
    1. Techweigh volumetric feeder with motor drive
  3. Extruder

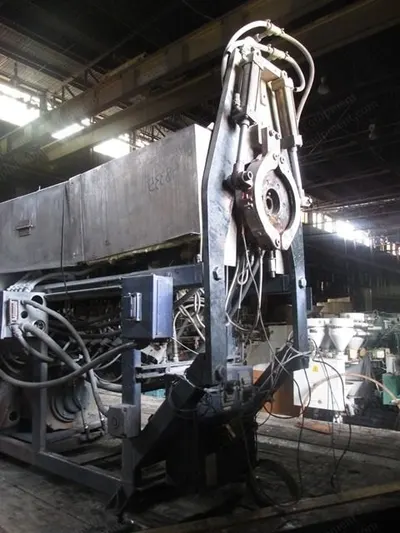

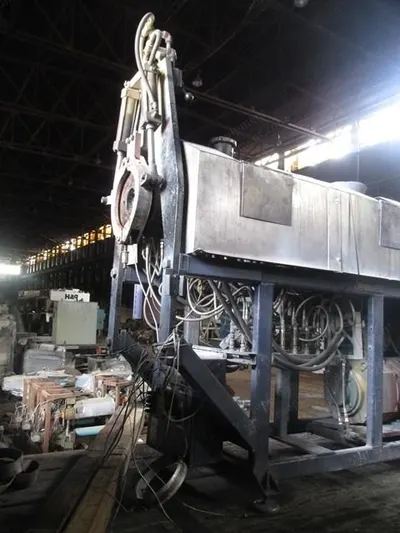

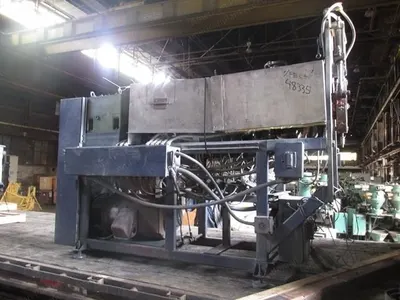

    1. 40 mm Berstorff twin screw extruder, model ZE40A HT
    2. Electrically heated, water cooled barrel
    3. 30:1 L/D ratio
    4. Top vented

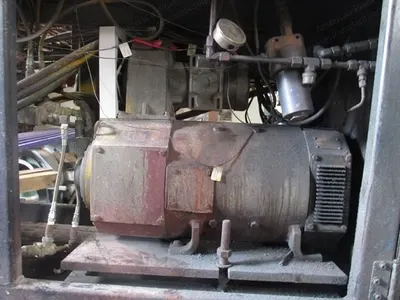

    5. 50 hp dc drive with control panel with scr controller
  4. Vacuum Pump
    1. 5 hp Sihi liquid ring vacuum pump
  5. Water Bath
    1. 16 inches wide x 12 inches deep x 120 inches long stainless steel strand water bath on stand
    2. Includes heat exchanger and circulation pump
  6. Air Wipe
    1. Two position dual lip air wipe with 7.5 hp blower on stand

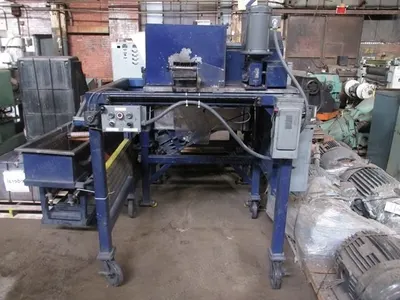

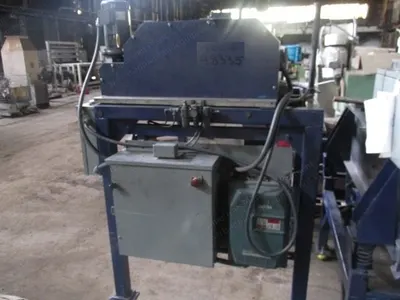

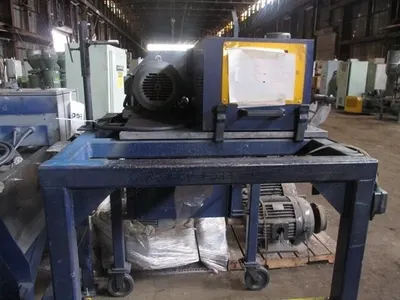

  7. Pelletizer and Classifier
    1. Strand pelletizer with pull rolls on stand
    2. Vfd controllers for pull roll and main motors
    3. 12 inches x 24 inches Best classifier, stainless steel deck on stand
  8. Temperature Control
    1. Budzar temperature control unit
