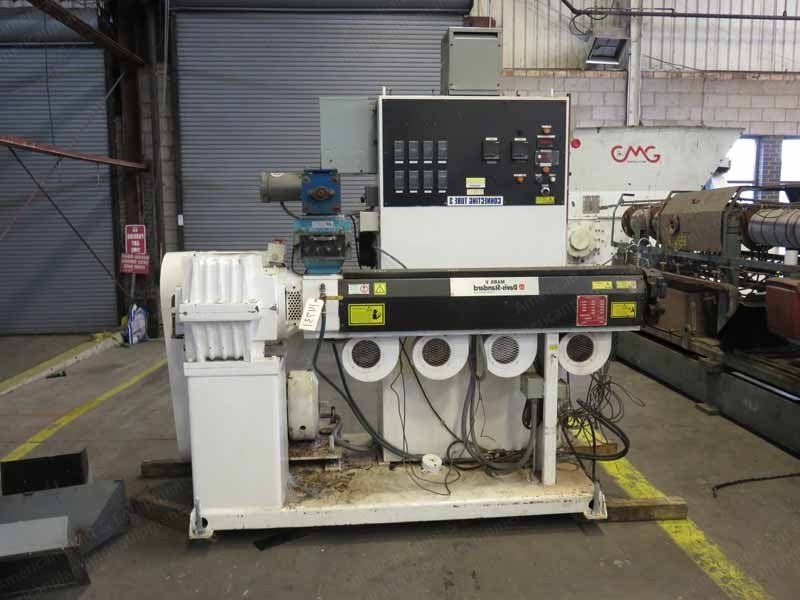

Davis Standard, MV25IN25, 2.5 Inches Extruder, 24:1 L/D, 40 HP, Air Cooled

Davis Standard, MV25IN25, 2.5 Inches Extruder, 24:1 L/D, 40 HP, Air Cooled

Description

  1. Overview
    1. Davis Standard model MV25IN25
    2. 2.5 inches extruder
    3. 24:1 L/D ratio
    4. 17.28:1 gearbox with a 1.25 service factor and maximum 75 hp capacity
  2. Drive System
    1. Belt driven by a 40 hp 230/460 volt 1770 rpm Marathon Blue Max inverter duty a/c motor
    2. 42 inches centerline
  3. Barrel and Screw
    1. Air cooled non-vented barrel
    2. 100 rpm screw speed
  4. Controls
    1. Unitized control panel with Eurotherm 2208 digital temperature controllers
