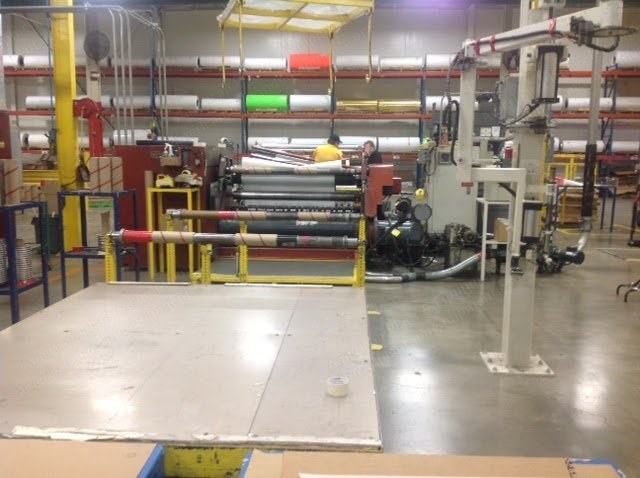

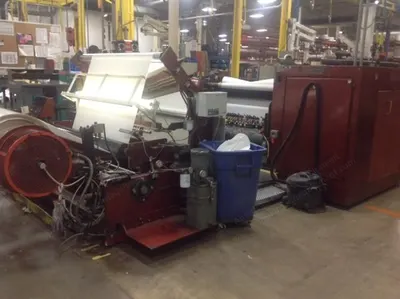

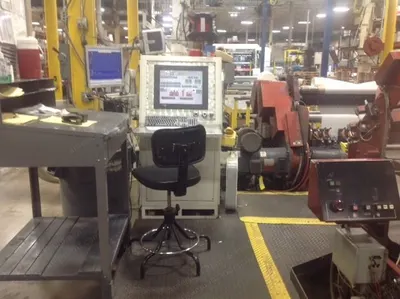

Description Overview Dusenbery model 800EPC duplex surface center winder with automatic minimum gap mode 62 inches wide Maximum rewind diameter of 40 inches and maximum unwind diameter of 50 inches Maximum machine speed is 2000 fpm Rewind System Rewind shafts have automatic mandrel latching and automatic drive engagement Rewind is slip core two zone differential with 3 inch steel rewind shafts Automatic nip pressure is controlled through the plc to a pair of rolling diaphragm air cylinders Lifting of the finished rolls is done hydraulically Slitting Slitting is kiss shear with precision rail mounted pneumatically operated male blades and shaft mounted female blades Control System Control system has been upgraded to a new ab plc and panel view 1200 touch screen Main drive and rewind drives are emerson dc with two 30 hp rewind drives and one 30 hp main drive Unwind Stand Unwind stand is a shaftless pick from the floor with automatic edge guiding Air cooled pneumatically controlled brake with a closed loop unwind tension control Splice Table Splice table with an 18 degree splice angle and pneumatic web clamps Included Items Rewind shaft puller and overhead hoist are included Full documentation, copies of the software, and all the original electrical and mechanical drawings are included Excluded Items Trim removal system is not included Condition The dusenbery is still wired and can be seen running
