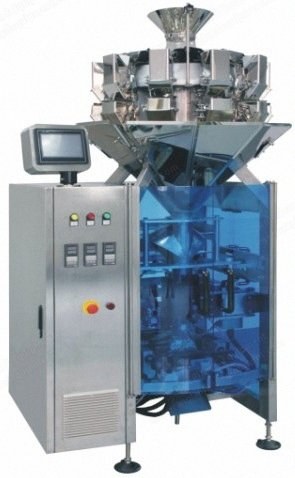

NovaStar, FC135, 10 Heads, 65 Bags/min, 140 to 320mm Film Width
Scroll to zoom
100%
Description
Overview
Plc control, man-machine interface, easy to operate and maintain
Equipped with servo motor and optical tracking devices to keep high accuracy
Automatic multihead weighing and vertical packaging combine in one unit (2 in 1 technology)
Application
Applicable bag type: pillow bag, gusset bag, seal type bag
Applicable film materials: a variety of laminated films, single-layer pe film, film thickness range 0.04mm to 0.15mm
Applicable packing materials: a variety of recreation food, frozen food, coffee beans, oatmeal, granulated sugar, salt, rice, pet food, small hardware, etc.
Specifications
Model: FC135
Weigher heads: 10 heads
Maximum single dump cap(g): 3 to 200g
Weighing accuracy: 0.1 to 1.0g
Maximum weighing speed: 65wpm
Volume: 500ml
Film width: 140 to 320mm
Bag size: lxw=(60 to 200)mm x (60 to 150)mm
Maximum packing speed: 65 bags/min
Film pulling driven system: cylinder and servo motor
Voltage: 3.8kw/220v/50(60)hz
Gas pressure: 0.6mpa
Gas consumption: 0.4m3/min
Machine dimension: lxwxh = 1306mm x 1059mm x 1902mm
Machine weight: 550kg
