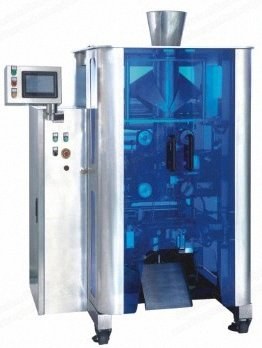

NovaStar, GK143, Double Motor High Speed Vertical Packing Machine, Film Width 160-420mm, Max 100 Bags/min, 304 Stainless Steel
Scroll to zoom
100%
Description
Overview
Plc control with man-machine interface for easy operation and maintenance.
Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy.
Frame of machine is made of 304 stainless steel, equipped with auto-stop protection function when opening the door.
Application
Applicable bag types: pillow bag, gusset bag, seal type bag.
Applicable film materials: a variety of laminated films, single-layer pe film, film thickness range 0.04 mm to 0.15 mm.
Applicable packing materials: a variety of recreation food, frozen food, coffee beans, oatmeal, granulated sugar, salt, rice, pet food, small hardware, etc.
Specifications
Model: GK143
Film width: 160 to 420 mm
Bag size: l x w = (60 to 300) mm x (70 to 200) mm
Maximum packing speed: 100 bags/min
Power requirement: 4.5 kw / 220 v / 50(60) hz
Gas pressure: 0.6 mpa
Gas consumption: 0.2 m3/min
Machine size: l x w x h = 1400 mm x 1100 mm x 1560 mm
Machine weight: 500 kg
