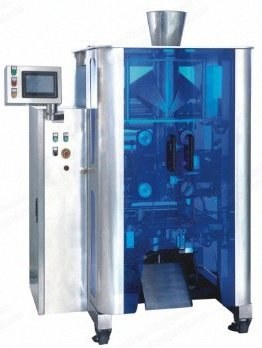

NovaStar, GK145, Double Motor High Speed Vertical Packing Machine, Film Width 180-620mm, Max 85 bags/min, 304 Stainless Steel
Scroll to zoom
100%
Description
Overview
Plc control with man-machine interface for easy operation and maintenance
Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy
Frame made of 304 stainless steel, equipped with auto-stop protection function when opening the door
Application
Applicable bag types: pillow bag, gusset bag, seal type bag
Applicable film materials: a variety of laminated films, single-layer pe film, film thickness range 0.04 mm to 0.15 mm
Applicable packing materials: a variety of recreation food, frozen food, coffee beans, oatmeal, granulated sugar, salt, rice, pet food, small hardware, etc.
Specifications
Model: GK145
Film width: 180 to 620 mm
Bag size: l x w = (80 to 400) mm x (80 to 300) mm
Maximum packing speed: 85 bags/min
Power requirement: 5.1 kw / 220 v / 50(60) hz
Gas pressure: 0.6 mpa
Gas consumption: 0.2 m3/min
Machine size: l x w x h = 1640 mm x 1226 mm x 1709 mm
Machine weight: 600 kg
