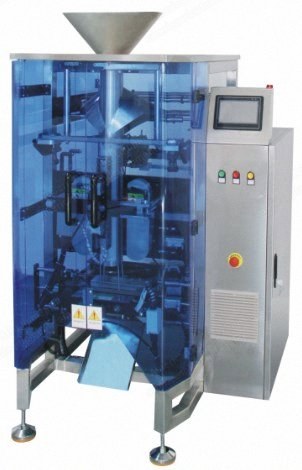

NovaStar, GK148, Vertical Packing Machine, Film Width 140 to 320mm, Max Speed 70 Bags/min, 220V (New)

NovaStar, GK148, Vertical Packing Machine, Film Width 140 to 320mm, Max Speed 70 Bags/min, 220V

Description

  1. Overview
    1. Plc control, man-machine interface, easy to operate and maintain.
    2. Driven by servo motor and optical tracking devices to keep accuracy.
    3. The frame of machine is made of 304 stainless steel, equipped with auto-stop protection function when open the door.
  2. Application
    1. Applicable bag type: pillow bag, gusset bag, seal type bag.
    2. Applicable film materials: a variety of laminated films, single-layer pe film, film thickness range 0.04mm to 0.15mm.
  3. Specifications
    1. Model: GK148
    2. Film width: 140 to 320mm
    3. Bag size: lxw=(60 to 200)mm x (60 to 150)mm
    4. Maximum packing speed: 70 bags/min
    5. Power requirement: 2.5kw/220v/50(60)hz
    6. Gas pressure: 0.6mbra
    7. Gas consumption: 0.5m3/min
    8. Machine size: l x w x h= 1158mm x 930mm x 1213mm
    9. Machine weight: 350kg
