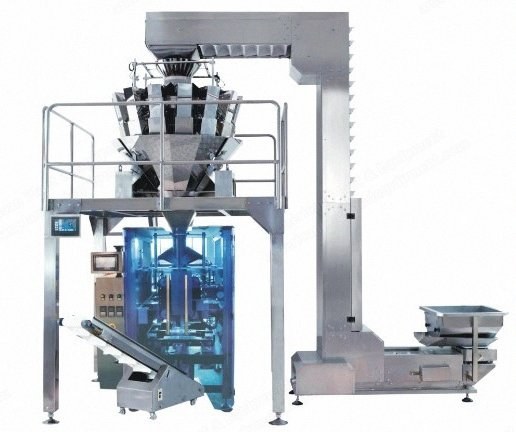

NovaStar, GK153, Packaging Line Solution, 90 Bags/min, 60-400mm Bag Length, 220V (New)

NovaStar, GK153, Packaging Line Solution, 90 Bags/min, 60-400mm Bag Length, 220V

Description

  1. Overview
    1. Automatic processing material feeding, weighing, forming, filling, sealing and finished products conveying as well as printing date.
    2. High weighing accuracy, without material crush problem, high efficient.
  2. Application
    1. Suitable for weighing and packing granule or irregular shape products, such as candy, nuts, jelly, frozen food, pet food, puffy food, peanut, pistacho, snack food and some small plastic or metal parts.
  3. Equipment Components
    1. Vertical form, fill and seal packing machine
    2. Multihead weigher
    3. Z type elevator
    4. Vibration feeder
    5. Work platform
    6. Finished products conveyor and check weigher
  4. Specifications
    1. Model: maximum speed 90 bags/min
    2. Weighing accuracy: < +1.5%
    3. Bag size: (L) 60 to 400mm x (W) 60 to 300mm
    4. Film roll width: 320mm to 820mm
    5. Film thickness: 0.04 to 0.15mm
    6. Film material: BOPP/CPP, PET/AL/PE
    7. Air consumption: 0.2 to 0.8m3/min
    8. Gas pressure: 0.6MPa
    9. Total power: elevator (1kW) + weigher (1kW) + VFFS packaging machine (2.5 to 4.5kW) + finished products conveyor (0.045kW) = 4.545 to 6.545kW
    10. Voltage: single phase 220V 50Hz (60Hz)
    11. Machine height: 3.3 to 4.2 meter
