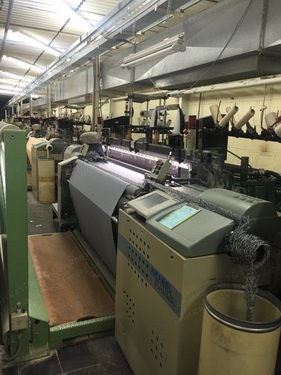

Picanol, Gamma, 2001, 1900mm Width, 4 Colors, Staubli 2670 Dobby

Picanol, Gamma, 2001, 1900mm Width, 4 Colors, Staubli 2670 Dobby

Description

  1. Overview

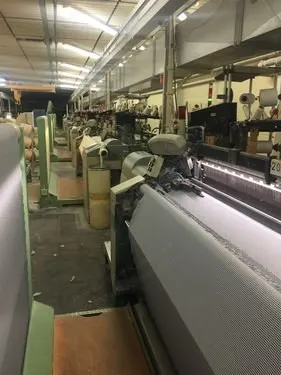

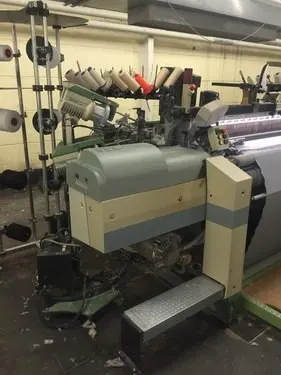

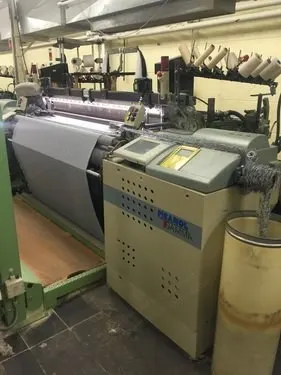

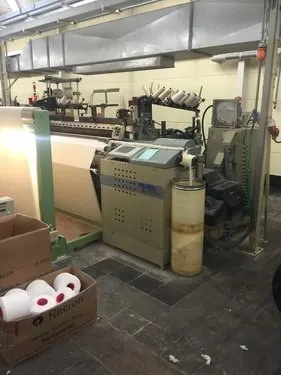

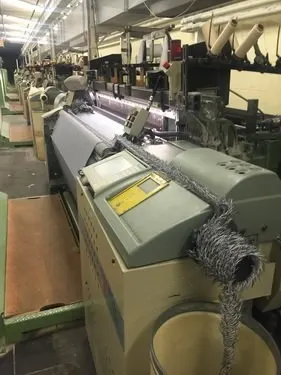

    1. Picanol Gamma rapier weaving machines
    2. Year: 2001
    3. Reed width: 1900 mm

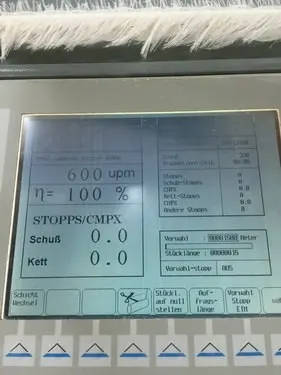

    4. Production speed: 600 rpm

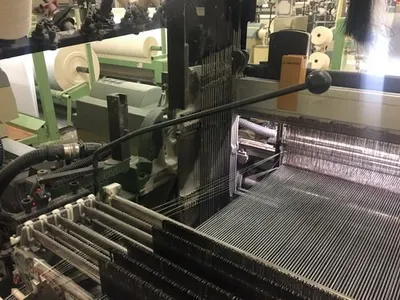

  2. Dobby And Shedding

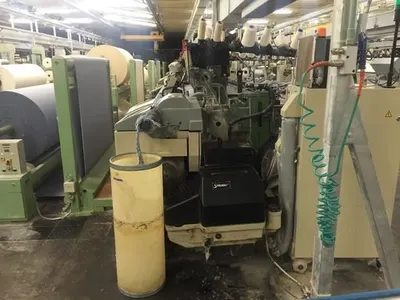

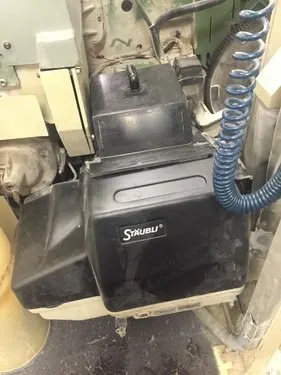

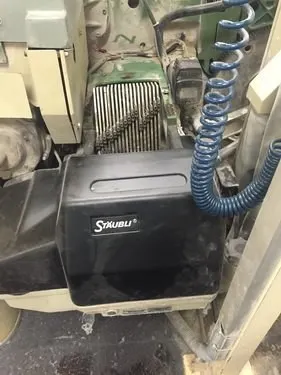

    1. Electronic dobby machine, make Staubli, type 2670

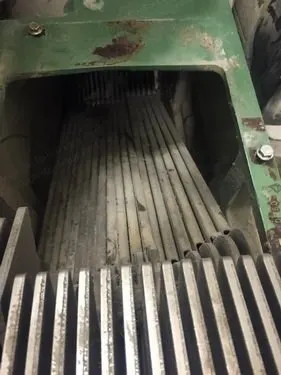

    2. 18 under-motion lever bars installed
    3. 18 dobby connectors installed (20 possible)
    4. 12 heald frames, make Schmeing Interstar
    5. 6 contact bars, Grob Horgen
  3. Warp And Let-Off

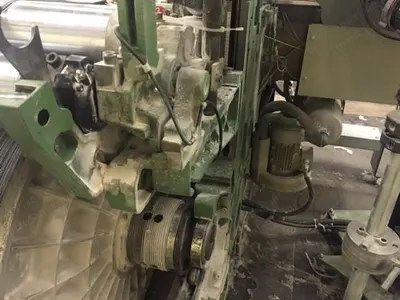

    1. Electronic take-up and let-off by Neuenhauser
    2. Double whip roller

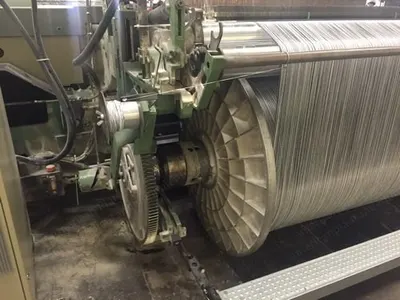

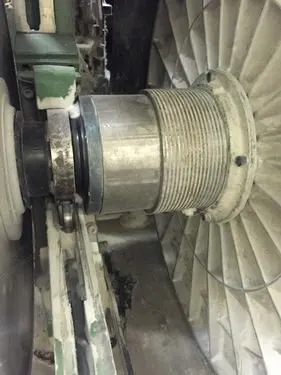

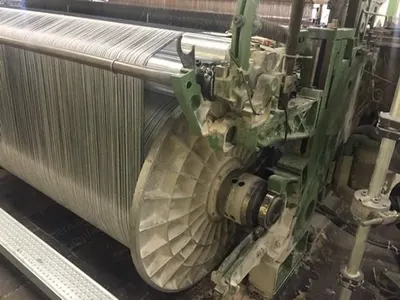

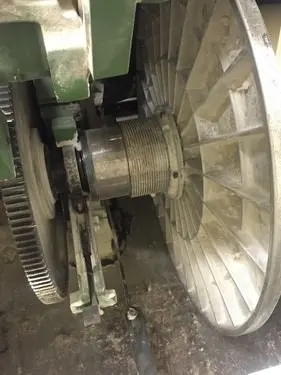

    3. 1.5 warp beam disc, diameter 1000 mm

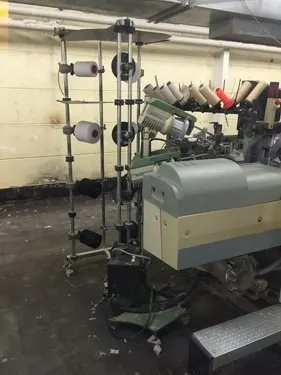

    4. On creel bobbin creel

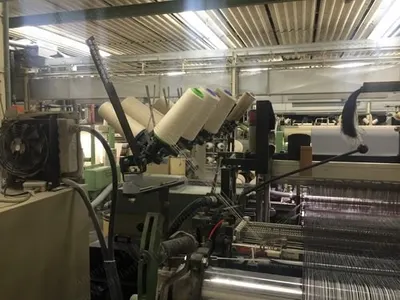

  4. Weft Insertion

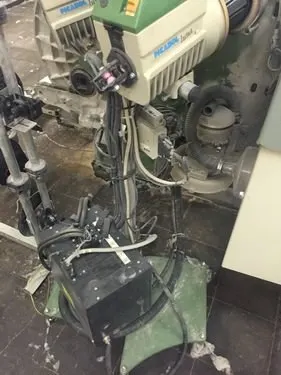

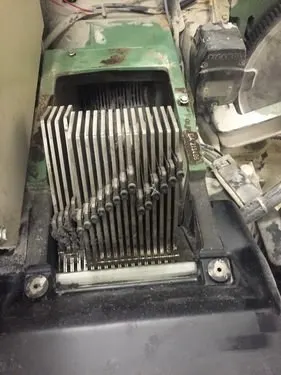

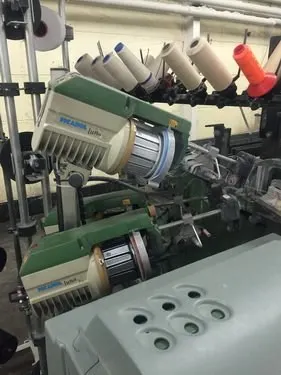

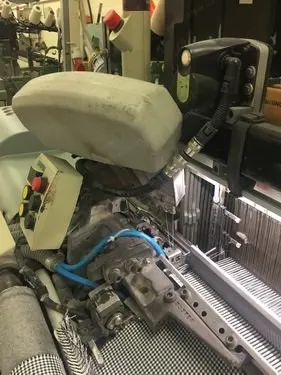

    1. 4 weft accumulators, make Picanol Luna, with electronic box
    2. PSO prewinder switch-off
    3. Weft insertion control, Picanol
    4. Quickstep color selector
    5. Elsy leno left/right
  5. Temple And Spreader
    1. Bar type temple possible
    2. Cylinder spreader installed
    3. Temple left/right

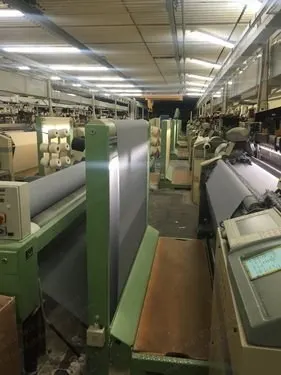

  6. Fabric Take-Up And Inspection

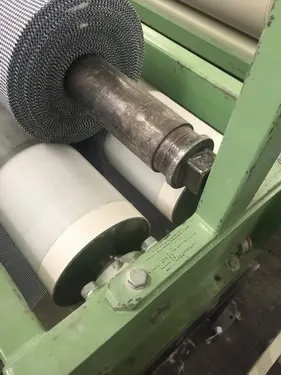

    1. Fabric delivery on batching motion with edge control and sliding table
    2. Underlight motion for inspection
    3. Neuenhauser batcher with underlight for inspection
  7. Additional Equipment
    1. Oil chiller by air installed on each machine
    2. Summo motor

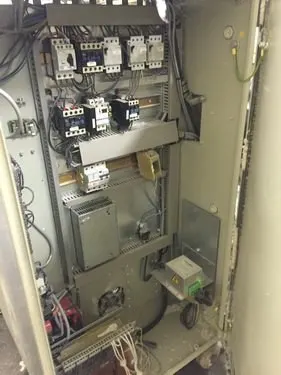

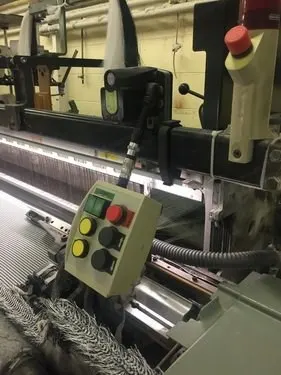

    3. Panel/working board
    4. Edge bobbins installed (will be changed into spool, 2)
  8. Condition
    1. Excellent machines, regularly maintained
    2. Will be delivered prior to disconnection, maintained and checked again
