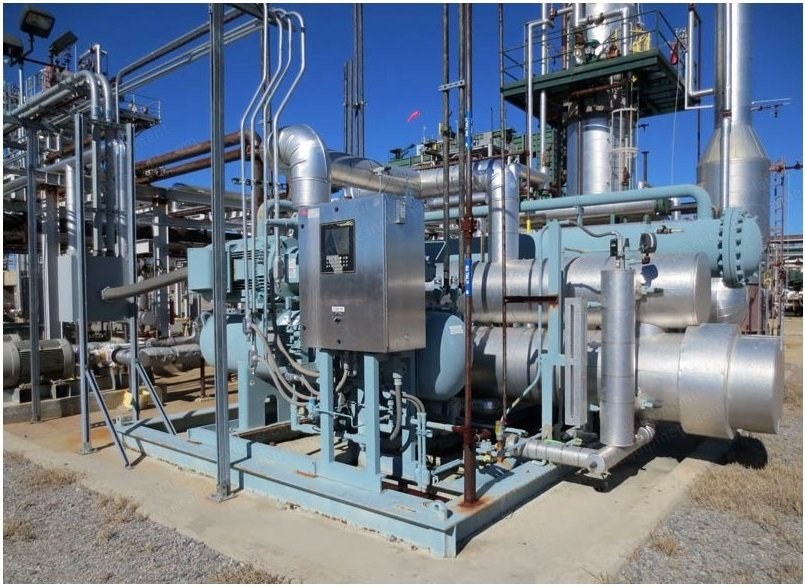

Frick, RXF-101-H, 2009, 140 Ton, Ammonia Chiller, 250HP Motor

Frick, RXF-101-H, 2009, 140 Ton, Ammonia Chiller, 250HP Motor

Description

  1. Overview
    1. Industrial refrigeration system
    2. Frick 140 ton chiller
    3. Year: 2009
    4. Ammonia chilling and solvent recirculating
    5. Last used for solvent cooling with ammonia in syngas process
  2. Specifications
    1. Frick 140 ton rotary screw ammonia (R717) compressor with a capacity of 1.68 MMBtu/hr of syngas at a flow of 101.940#/hr 46/13F
    2. Motor: 250 hp, 3500 rpm, 460 V/3/60
    3. Asme rated at 450/FV at 350F
    4. Frick ammonia compressor model RXF-101-H with liquid injection cooling
    5. Water cooled ammonia condensing unit uses 750 gpm water
  3. Included components

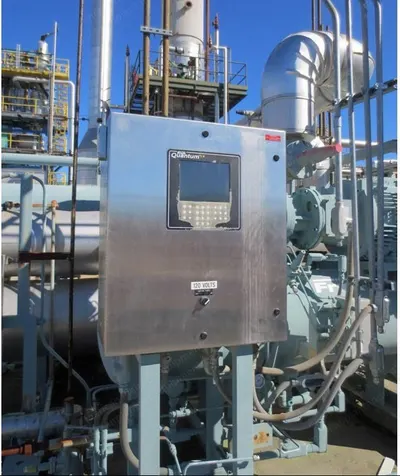

    1. Quantum LX control panel
    2. Evaporator
    3. Condenser
    4. Receiver on skid
    5. Auxiliary instruments attached to equipment
    6. Structure
  4. Condition
    1. Like new – only ran 42 days, shut down, still installed
    2. The touch screen has suffered damage and will have to be replaced
