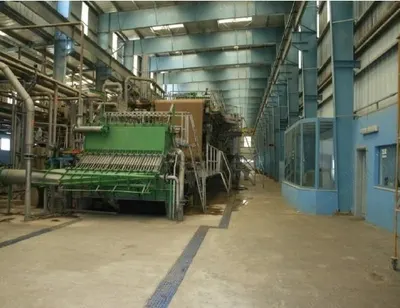

Nyerpic, 2 Wires Test Liner and Fluting Complete Paper Machine, 2500mm Width, 120 t/day

Nyerpic, 2 Wires Test Liner and Fluting Complete Paper Machine, 2500mm Width, 120 t/day

Description

  1. General Information
    1. Grades: test liner, fluting, core board (two layers)
    2. Basis weight original: 105 to 250 gsm
    3. Basis weight modified: 100 to 220 gsm
    4. Trim width: 2500 mm
    5. Speed original: 150 to 350 m/min
    6. Speed modified: 100 to 250 m/min
    7. Maximum capacity original: 200 t/day
    8. Maximum capacity modified: 120 t/day

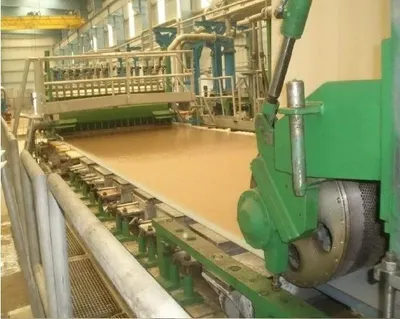

  2. Base Ply
    1. 1 headbox, Nyerpic (1974)
    2. 1 fourdrinier (1985)
    3. Dewatering elements (1985)
  3. Top Ply
    1. 1 headbox, Nyerpic (1985)
    2. 1 fourdrinier (1985)
    3. Dewatering elements (1985)
  4. Press Section
    1. 1 vacuum press, Esher-Wyss
    2. 1 long nip press, Tampella/Allimand (1985)

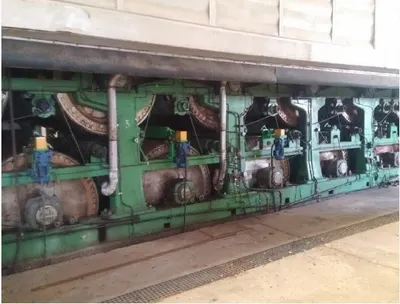

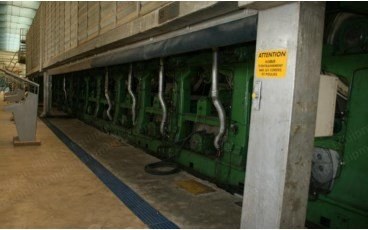

  5. Drying Section
    1. Predrying section: 19 dryers, Allimand (1974)
    2. Postdrying section: 10 dryers, Allimand (1974)
    3. Dryers diameter: 1.5 m
    4. Maximum pressure: 5 bar
  6. Size Press
    1. Inclined size press, De Luliis (2014)
  7. Machine and Reel
    1. 1 drum reel, Novat-Bey (1969)

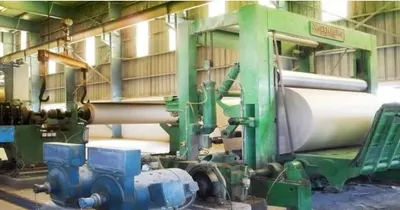

  8. Winder
    1. 1 Jagenberg Varidur winder (1988)

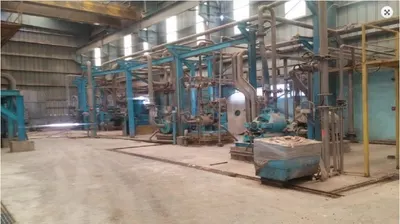

  9. Stock Preparation
    1. Conveyor: 2 belt conveyors (1992)
    2. Pulper: 2 pulpers Helico with Poire, Lamort trommel, Innox (1987)
    3. Hd cleaning: 1 hd cleaner unit, Kadanat (2008)
    4. Coarse screening: 1 screening unit Black Clawson Ultrascreen Up 2 (1984), Ultrascreen Up (1989), Omega screen 10 (1989)
    5. Fractionation: 1 fractionating unit Cellusizer 24, Black Clawson (1984)
    6. Fine screening: 1 unit Mmz, Kadanat (2008); 1 unit Fibernet, Kadanat (2008)
    7. Thickening: thickner M16, Black Clawson (1984)
    8. Refining: 1 disc refiner Sprout Waldon (1967)
    9. Stainless steel tanks
  10. Other Equipment
    1. Approach flow and white water system
    2. Bottom approach flow: screen Selectifiner 36Ph, Black; screen Selectifiner 12Pv, Black Clawson; 2 stage liquid cyclone/Ldc, Kadanat
    3. Top approach flow: screen Selectifiner 24 Ps, Black Clawson; 2 stage liquid cyclone/Ldc, Kadanat; vibrating screen
    4. White water system: gravity strainer, Kadanat; Daf unit Poseidon, Kadanat
    5. Vacuum system: 5 vacuum pumps, Allimand
    6. Drive: drive unit with dc motors
  11. Utilities
    1. Steam production: 1 steam boiler Stein Fesal, 9 t/h
    2. Compressed air: 2 air compressors
  12. Process Control
    1. Stock preparation: 1 Dcs (2008)
    2. Paper machine: 1 Qcs (2008)
