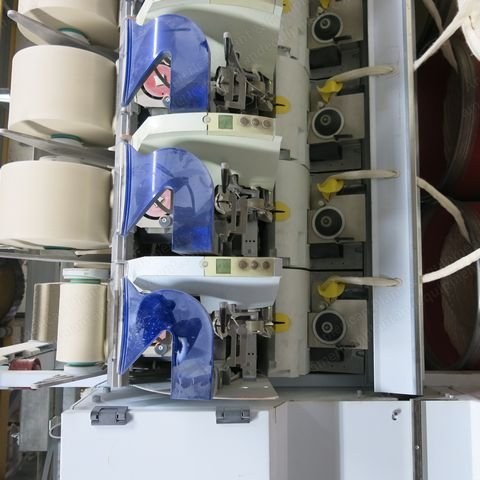

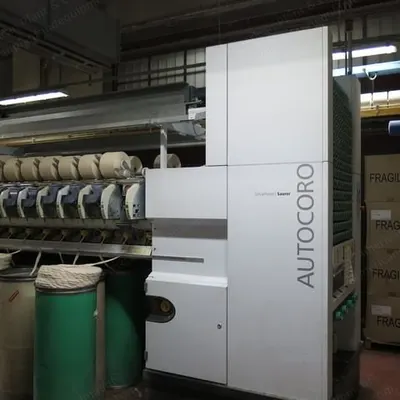

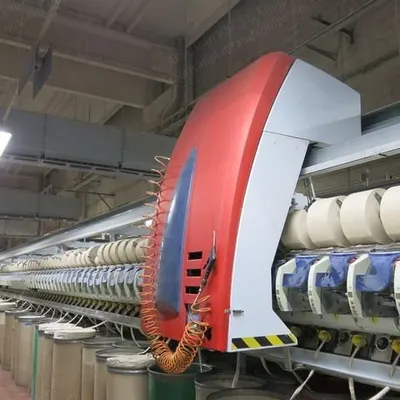

Saurer Schlafhorst, Autocoro 8, 2006, Open End Spinning Machine, 216 Rotors, 380V 50Hz

Saurer Schlafhorst, Autocoro 8, 2006, Open End Spinning Machine, 216 Rotors, 380V 50Hz

Description

  1. Overview
    1. Saurer Schlafhorst Autocoro 8 open end spinning machine
    2. Year: 2006
    3. 216 spindles
  2. Feeding and spinning
    1. Feeding by cans of 18 inches x 42 inches (450 mm x 1020 mm)
    2. Spinning box SE 20 with Digipiecing
    3. Beaters type B174 DN
    4. Single motor driving combing rolls (beaters)
    5. Magnetic rotors diameter 40 mm for coarse yarns
    6. Single-motor driving rotors
    7. Electronic yarn presence control
    8. Waxing device
    9. Corolab XF for foreign fibers
    10. Individual piecing head by head
    11. Pilot spin
  3. Control and lot features
    1. EVA electronic vacuum adjustment
    2. Multi lot device to spin 5 slot (counts) at the same time
    3. Special feeder for 5 counts and 432 feeding tubes
    4. Syncro piecing 12
  4. Winding and doffing
    1. Digit winding with device to produce up to 5.2 kg full bobbins
    2. 02 DCU doffing and cleaning unit
  5. Electrical specifications
    1. Voltage: 380 V, 3-phase, 50 Hz
