Lafer, CMI-100, 2004, Shearing Machine, 2200mm Working Width, 20 Spiral Knives

Lafer, CMI-100, 2004, Shearing Machine, 2200mm Working Width, 20 Spiral Knives

Description

  1. Overview
    1. Lafer shearing machine
    2. Model: CMI-100
    3. Year: 2004
    4. Working width: 2200 mm
    5. Number of spiral knives: 20 pieces
    6. Diameter of cylinder: 180 mm
  2. Specifications
    1. One shearing cylinder width 2200 mm
    2. Cylinder diameter 180 mm with 20 spiral blades
    3. Maximum shearing precision: 0.03 mm
    4. Adjustable fabric tension
    5. Automatic fabric tension control
    6. Automatic lubrication
  3. Control System
    1. Driven by AC motors controlled by sensorless vectorial inverters
    2. PLC programmable logic controller for machine automations and alarms

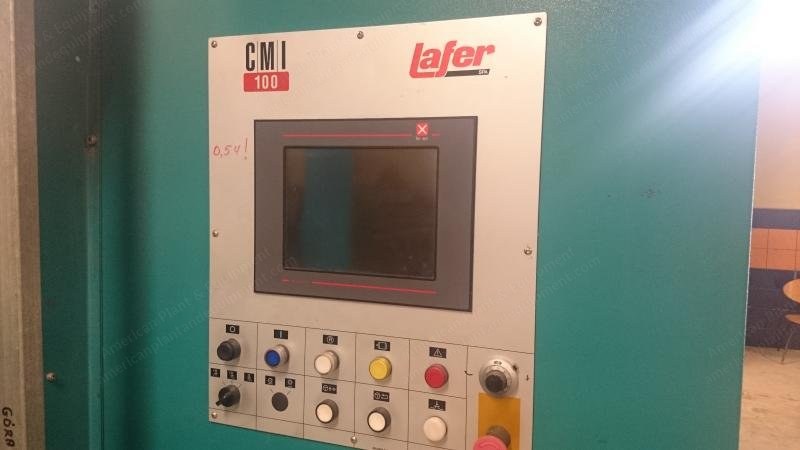

    3. Operator interface by industrial PC using color touch screen technology for setting and storing all operating parameters
    4. Shearing parameters of each fabric can be memorised (over 1 million recipes can be stored)
  4. Included Equipment
    1. Waste filtering and collection system
    2. Metal detector
  5. Condition
    1. All functions are under control
    2. This machine has no spare equipment
    3. Only one set: spirals and blade, both assembly in machine in very good condition, changed to new shortly before closing the production
