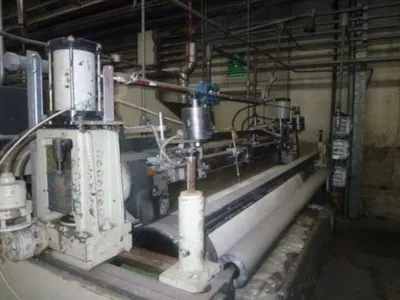

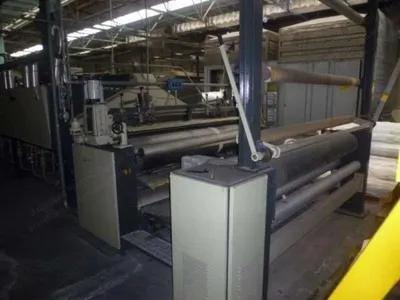

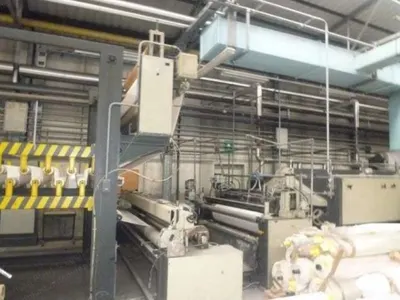

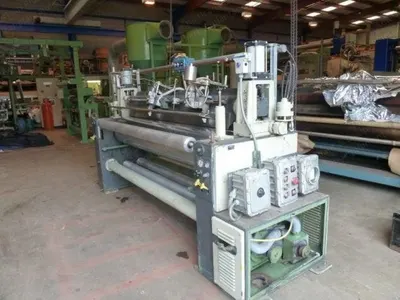

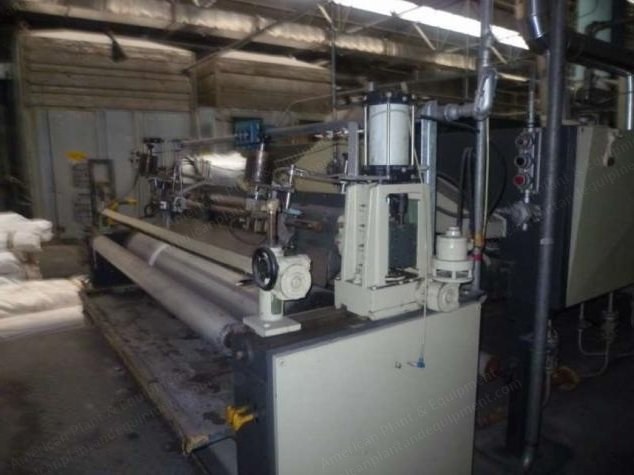

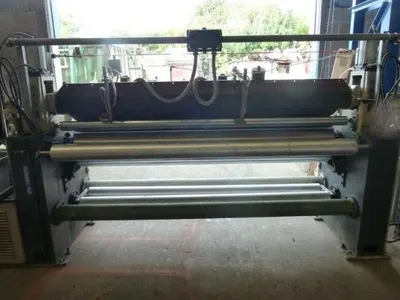

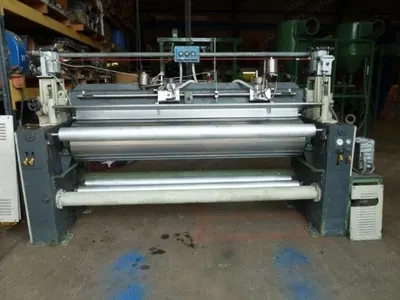

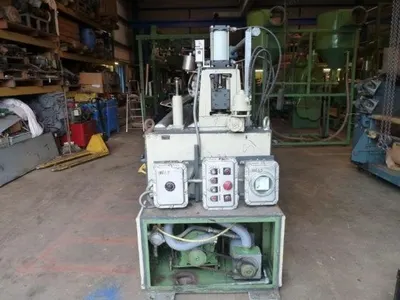

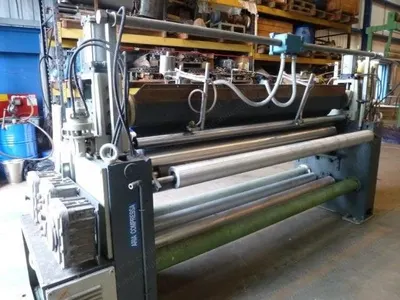

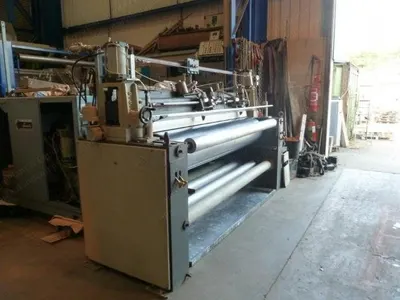

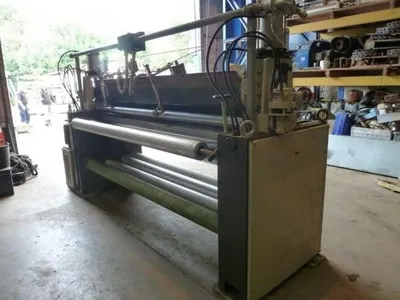

RCM Coating Heads, 1993, 2000mm Working Width, Knife Over Roller

RCM Coating Heads, 1993, 2000mm Working Width, Knife Over Roller

Description

  1. Overview
    1. Rcm coating heads
    2. Year: 1993, reconditioned 2016
    3. Working width: 2000 mm
    4. Knife over roller
    5. Also able to coat knife over and knife over air
    6. The machine is a heavy duty coating head
  2. Specifications
    1. Fitted with free running entry and exit path rollers
    2. One bow roller
    3. One precision ground chrome steel fabric support roller

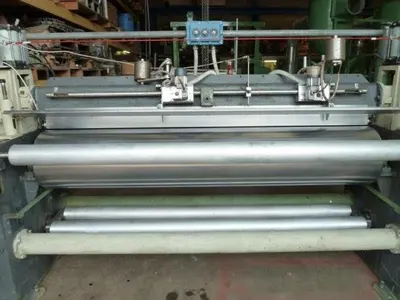

    4. Rotary head stock with two blade positions and is adjustable to various coating positions knife blade over roller and shoe blade over air
    5. Other combinations are also possible
    6. Mechanical and motorised adjustment for the blade head stock up and down and front to back
    7. Only one coating blade is fitted
  3. Reconditioning Scope
    1. Supply and fit new side dams with quick release capability
    2. Back dam in stainless steel is required rotary and exposure adjustment

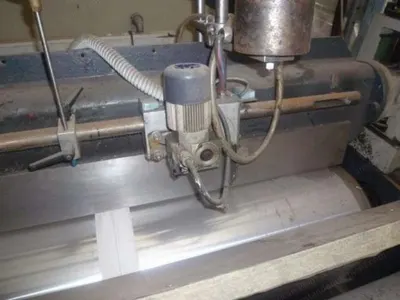

    3. Supply and fit 2 digital gauges for gap setting
    4. Supply and fit one new control panel with 7.5 kw ac drive to drive the coating roller
    5. Check and free off and repair all transmission parts and mechanical adjustment points
    6. Within the price below the machine will be made compliant with (ehsr and atex) in accordance with the regulations for second hand machines made and supplied before 1994
  4. Warranty
    1. 6 months major parts warranty on existing parts
    2. 12 months on new
  5. Quantity
    1. 2
