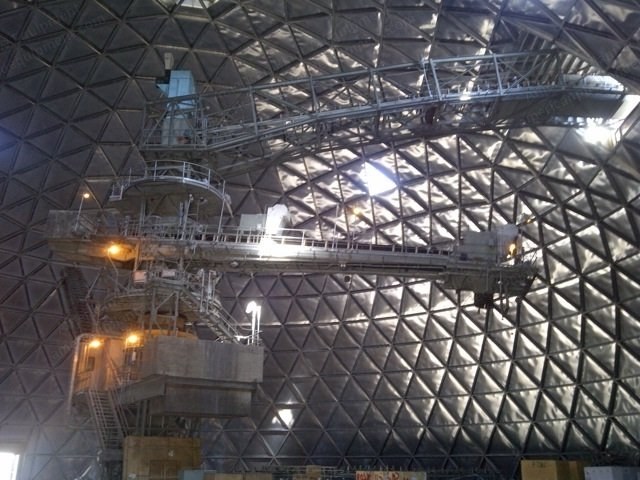

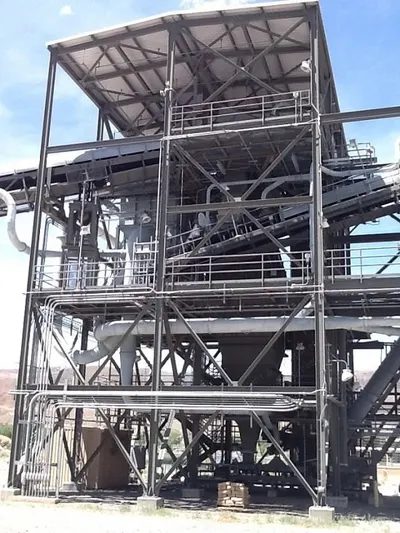

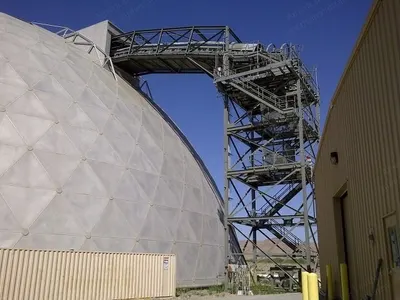

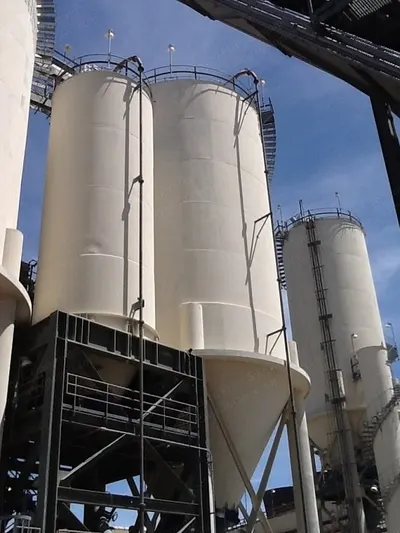

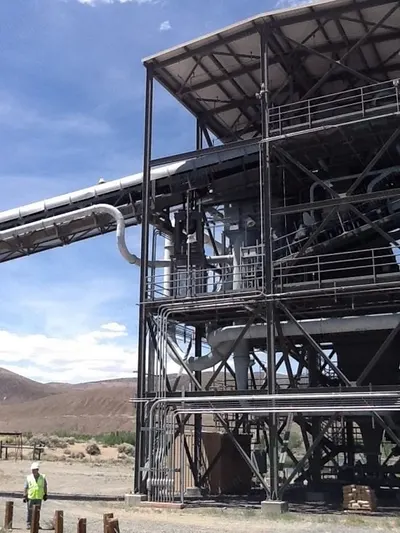

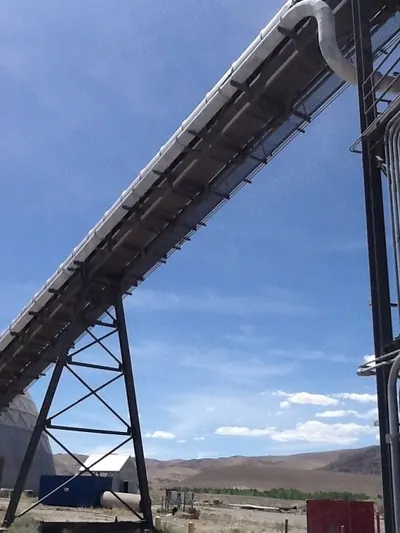

Description Overview Entire package purchased new, installed, and shut down soon after Accumulated less than 100 hours of operating time On care and maintenance since shutdown Remains in place and in excellent ready-to-work condition Raw Coal Dome Storage Stock Pile Facility 20,000 standard tons capacity Outside diameter of pile (indoors): 220 feet Pile width (indoors): 102 feet Pile height (indoors): 38 feet Stacking capacity (indoors): 2,250 standard tph Reclaim capacity (normal operation): 110 standard tph Emergency operation: 340 standard tph Area classification: Class II, Div. I, Group G Pennsylvania Coal Impactor Crusher With Magnetic Separator Model: CALL 11-44A Type: Reversible 125 tons per hour 200 hp, 1800 rpm, 460 volt, 3 phase, 60 hz, tefc crusher drive motor Dimensions: 10 feet-5 inches x 9 feet-7.5 inches x 8 feet-1 inch Magnetic separator included Stacker Boom Conveyor 63 feet long system 60 inches wide belt 4 ply, 440 piw 670 fpm belt speed 35 degree troughing Hydraulic assist takeup 50 hp, 1800 rpm, 460 volt, 3 phase, 60 hz, tefc conveyor drive motor Falk 4407jr-a-13.78 shaft mounted reduction drive Reducer ratio: 13:78 V-belt ratio: 1.26:1 Stacker Boom Hoist Hydraulic actuated stacking rise and lowering control system Hydraulic actuated boom hoist 2 degrees to 16 degrees operating luffing range 14 degrees to 16 degrees maximum luffing range 8.2 fpm 5 hp, 1800 rpm, 460 volt, 3 phase, 60 hz, tefc hydraulic drive motor Stacker Boom Slewing Electro-mechanical stacker boom slewing Vertical sm-cyclo gear reducer Gear ratio: 841:1 Slewing speed: 0.17 rpm (57.5 fpm) 3 hp, 1200 rpm, 460 volt, 3 phase, 60 hz, tefc drive motor Type of slewing bearing: Roteck a12-89e1 Reclaim Boom Roller scraper chain 201,000 lbs. breaking strength Centre distance sprockets: 98 feet Chain reclaim speed: 128 fpm Chain pitch: 12 inches Spacing of blades: 24 inches Dimensions of blades: 4 feet-1 inch x 10 inches Reclaim angle operating: 0 degrees to 37 degrees 100 hp, 1800 rpm, 460 volt, 3 phase, 60 hz, tefc drive motor Falk 445 abrcj4-as shaft mount reduction drive Reducer ratio: 107.4:1 Rope Winch Fast speed centre line of sprocket: 15.7 fpm Slow speed centre line of sprocket: 2.6 fpm Luffing range (maximum): 0 degrees to 40 degrees Motor output fast speed: 24.8 hp Motor output slow speed: 2.5 hp Reclaim Boom Slewing Type of drive: electro-mechanical Type of gear reducer: vertical sm-cyclo Ratio of gear reducer: 3481:1 Slewing repositioning speed: 0.1 rpm (33 fpm sprocket) Slewing operating speed: 0.0136 rpm (4.5 fpm sprocket) Variable speed control: 10:1 (6 hz, 60 hz, 120 hz) Type of slewing bearing: Roteck 2h13-94 e1 2 x 3 hp, 1200 rpm, 460 volt, 3 phase, 60 hz, tefc drive motors Type of upper slewing bearing: Roteck a11-76p1 Auto lube system Centralized Dust Collector System A complete description of the system and the associated equipment is attached to this quotation.
