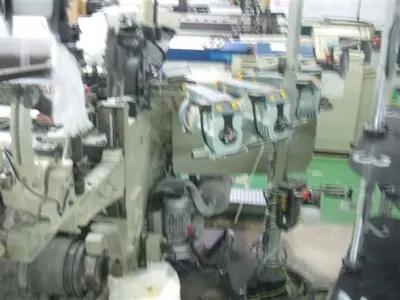

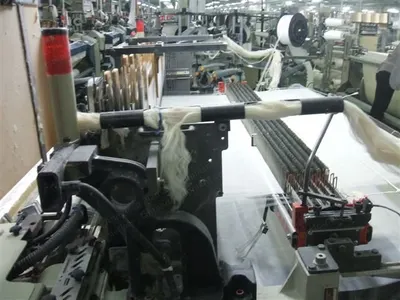

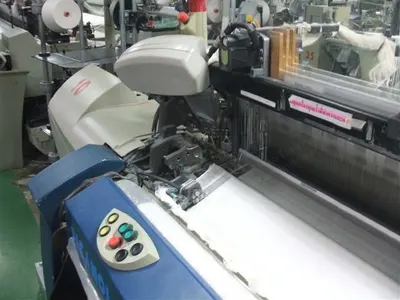

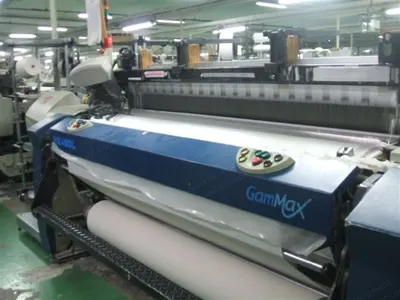

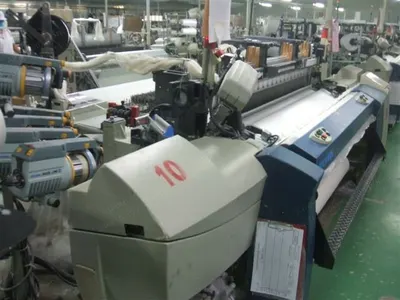

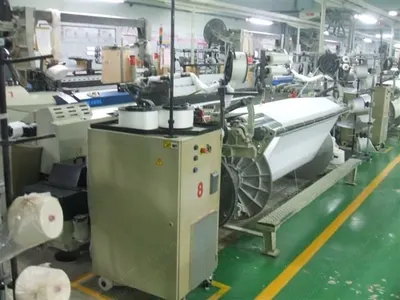

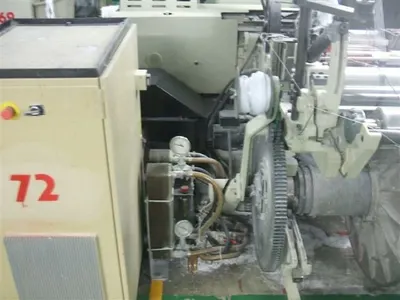

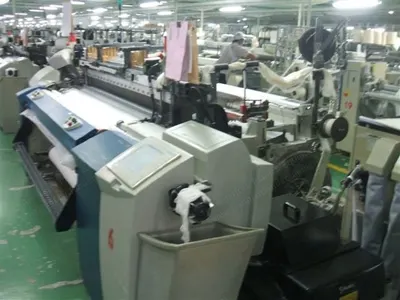

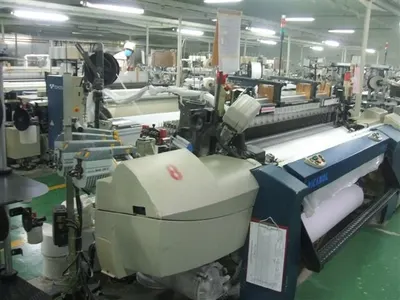

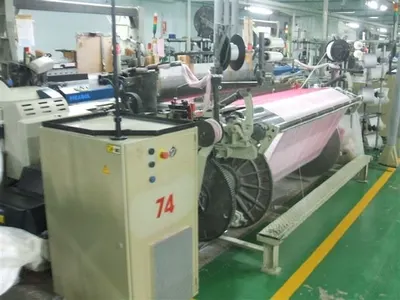

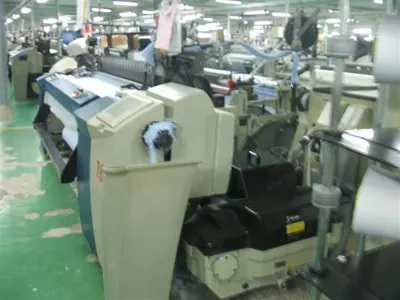

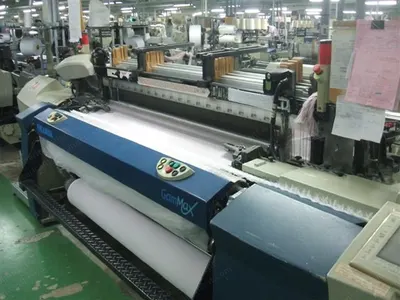

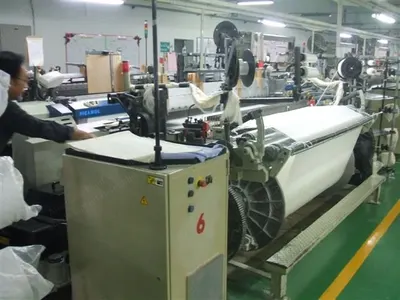

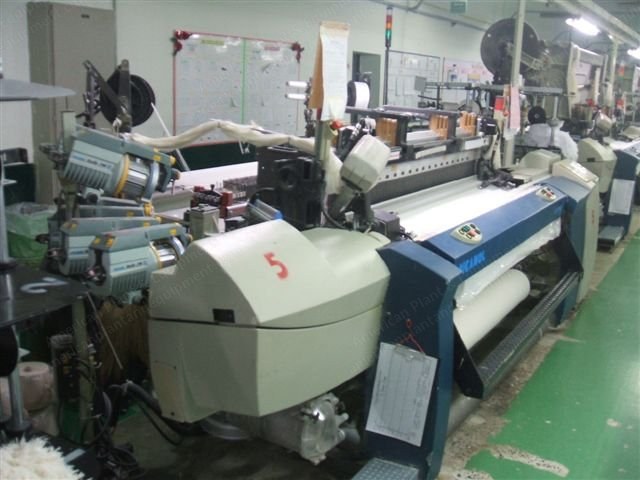

Picanol, Gammax 6-R, 2006, 1900mm, 6 Colors, Dobby

Picanol, Gammax 6-R, 2006, 1900mm, 6 Colors, Dobby

Description

  1. Overview
    1. Brand: Picanol
    2. Type: GamMax 6-R
    3. Year: 2006
    4. Width: 1900 mm

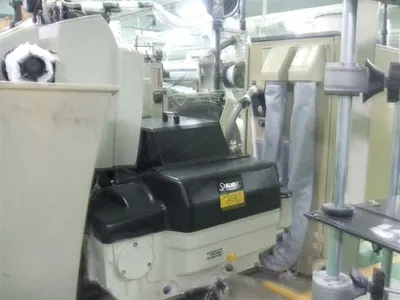

    5. With Staubli 2861 electronic dobby (16 harness drives)
  2. Technical Specifications
    1. Reed width: 1900 mm
    2. Performance: Filling insertion rates up to 1500 m/min

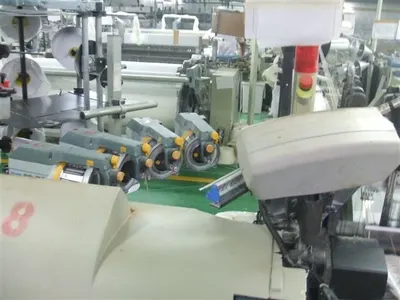

    3. Filling selection: 6 colors (filling presenter with insertion control)
    4. Filling detection/insertion: Piezo-electronic 6 channels, with prewinder switch-off system (PSO)
    5. Reed motion: Positive cam and cam followers in both frames
    6. Shedding motion: Electronic dobby for 16 heald frames maximum
    7. Let-off motion: Load-cell controlled warp-let off system (ELO)
    8. Warp beam: 805 mm flange diameter, 216 mm barrel diameter with button holes
    9. Machine drive: Sumo main motor with direct machine drive, optispeed
    10. Voltage: 380 V / 50 Hz
    11. Backrest: Feeler roll/whip roll/warp tension measuring
    12. Cloth take-up: Electronically controlled take-up system (ETU), 850 mm diameter, rubber covered, double press-roller
    13. Selvedge motion: Independently electronically controlled (ELSY), 3 ends split LHS/RHS
    14. Harness frames: Schmeing, type Tex, 12 to 14 pieces with DRC2 for heald length 15 inches
    15. Warp stop motion: 6 bar electrical 25 mm pitch
    16. Pick finding: Automatic pickfinding and closed shed positioning
    17. Weft supply: 2 vertical bobbin rack for 6 bobbin each diameter 450 mm
    18. Machine controls: By forced circulation of filtered oil. Grouped grease points for manual lubrication. Sealed bearings for the beat-up shaft, to prevent the lubrication grease drying out. Microprocessor controlled, centralized grease lubrication for bearing of the beat-up shaft and harness motion mechanism
    19. Monitoring: Self-diagnosis. Stop distribution reporting
    20. Safety: Light curtain. Protection guard over take-up rollers
    21. Additional: Machines are foreseen for water-cooling device
  3. Included
    1. 1.5 pieces warp beams
    2. 1.5 pieces cloth rollers
    3. 12 to 14 heald frames
    4. 8000 heald wires and droppers
